Exploded view lave linge BELLAVITA WF1408A+++SMIC 955572

Discover the complete exploded view lave linge BELLAVITA WF1408A+++SMIC 955572, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BELLAVITA WF1408A+++SMIC 955572 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLE Lave-Linge ALIMENTATION 3 FILS
CABLE Lave-Linge ALIMENTATION 3 FILS
Position: 3
Indicative price: 38.74 €
TUYAU Lave-Linge VIDANGE
TUYAU Lave-Linge VIDANGE
Position: 5
Indicative price: 19.24 €
PRESSOSTAT Lave-Linge
PRESSOSTAT Lave-Linge
Position: 8
Indicative price: 29.56 €
SECURITE Lave-Linge PORTE
SECURITE Lave-Linge PORTE
Position: 9
Indicative price: 31.97 €
TRAPPE Lave-Linge VIDANGE
TRAPPE Lave-Linge VIDANGE
Position: 12
Indicative price: 16.98 €
COLLIER Lave-Linge AVANT JOINT HUBLOT
COLLIER Lave-Linge AVANT JOINT HUBLOT
Position: 13
Indicative price: 21.44 €
SUPPORT Lave-Linge CHARNIERE
SUPPORT Lave-Linge CHARNIERE
Position: 14
Indicative price: 10.59 €

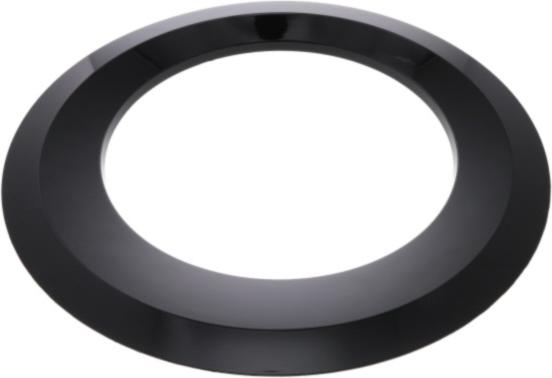

ENJOLIVEUR Lave-Linge HUBLOT NOIR MFG60-S1212_C22EP-EU_A3-6011
ENJOLIVEUR Lave-Linge HUBLOT NOIR MFG60-S1212_C22EP-EU_A3-6011
Position: 21
Indicative price: 46.5 €
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
CHARNIERE Lave-Linge HUBLOT 154MM (ENTRAXE 135MM) WM008600082
Position: 22
Indicative price: 31.26 €
CROCHET Lave-Linge PORTE
CROCHET Lave-Linge PORTE
Position: 23
Indicative price: 16.13 €
Contre porte Lave-Linge HUBLOT GRIS MS381WT311725401
Contre porte Lave-Linge HUBLOT GRIS MS381WT311725401
Position: 24
Indicative price: 47.16 €
HUBLOT Lave-Linge VERRE D347MM H129 1 encoche
HUBLOT Lave-Linge VERRE D347MM H129 1 encoche
Position: 25
Indicative price: 54.53 €
LOGEMENT Lave-Linge RESSORT
LOGEMENT Lave-Linge RESSORT
Position: 26
Indicative price: 6.22 €
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
CONDENSATEUR Lave-Linge ANTIPARASITE DNF06-Q(THHA) 0.47+0.33UF
Position: 27
Indicative price: 35.25 €
BOITE Lave-Linge PRODUIT
BOITE Lave-Linge PRODUIT
Position: 28
Indicative price: 45.37 €
TIROIR Lave-Linge BOITE A LESSIVE MF660-AS100A_A074BE006011
TIROIR Lave-Linge BOITE A LESSIVE MF660-AS100A_A074BE006011
Position: 29
Indicative price: 23.91 €
BANDEAU Lave-Linge
BANDEAU Lave-Linge
Position: 32
Indicative price: 93.07 €

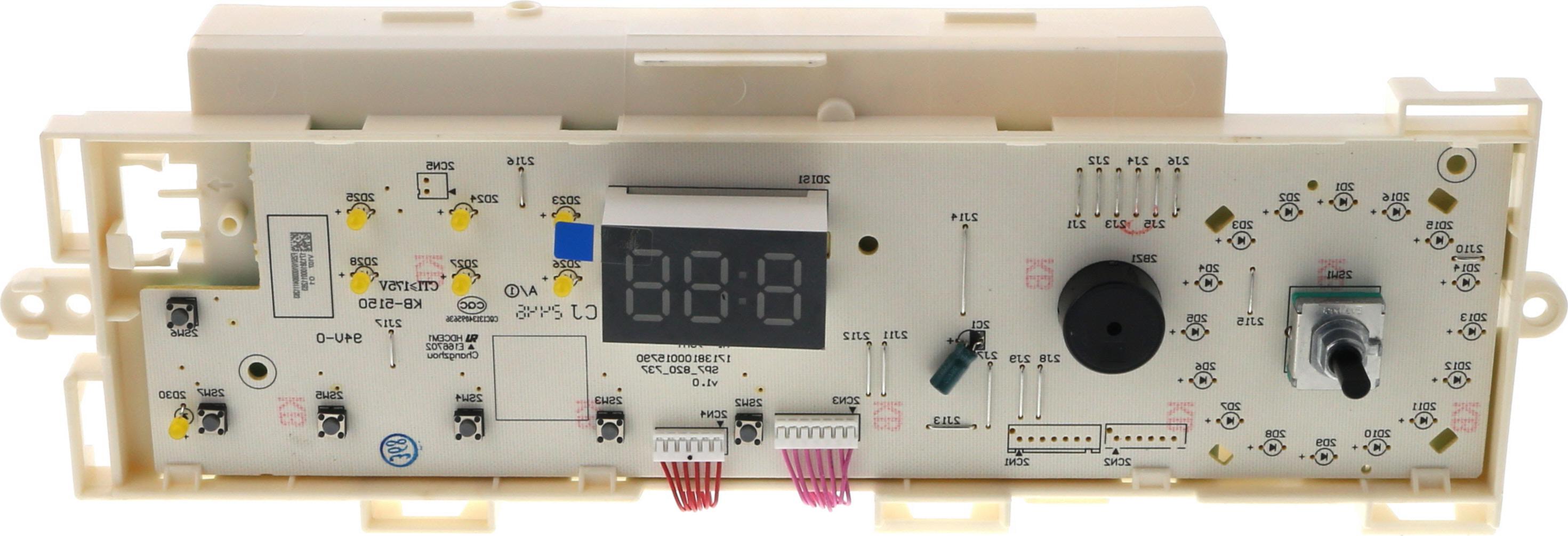

PLATINE Lave-Linge COMMANDE
PLATINE Lave-Linge COMMANDE
Position: 33
Indicative price: 153.42 €
ELECTROVANNE Lave-Linge 2 VOIES
ELECTROVANNE Lave-Linge 2 VOIES
Position: 34
Indicative price: 32.39 €
DURITE Lave-Linge CUVE/BOITE PRODUIT
DURITE Lave-Linge CUVE/BOITE PRODUIT
Position: 35
Indicative price: 30.11 €
RESSORT Lave-Linge SUSPENSION
RESSORT Lave-Linge SUSPENSION
Position: 36
Indicative price: 16.18 €
POULIE Lave-Linge TAMBOUR
POULIE Lave-Linge TAMBOUR
Position: 38
Indicative price: 28.28 €
COURROIE Lave-Linge 5EPJ1281 302730660008
COURROIE Lave-Linge 5EPJ1281 302730660008
Position: 39
Indicative price: 31.07 €
PALIER Lave-Linge KIT
PALIER Lave-Linge KIT
Position: 42
Indicative price: 51.65 €
CUVE Lave-Linge 1/2 ARRIERE
CUVE Lave-Linge 1/2 ARRIERE
Position: 43
Indicative price: 210.37 €
AXE Lave-Linge AMORTISSEUR
AXE Lave-Linge AMORTISSEUR
Position: 44
Indicative price: 9 €
MOTEUR Lave-Linge UMT5204.02
MOTEUR Lave-Linge UMT5204.02
Position: 45
Indicative price: 124.68 €
AMORTISSEUR Lave-Linge
AMORTISSEUR Lave-Linge
Position: 46
Indicative price: 21.04 €
DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 48
Indicative price: 35.63 €
POMPE Lave-Linge VIDANGE B30-6A PX-2-35
POMPE Lave-Linge VIDANGE B30-6A PX-2-35
Position: 52
Indicative price: 36.42 €
COLLIER Lave-Linge ARRIERE JOINT HUBLOT
COLLIER Lave-Linge ARRIERE JOINT HUBLOT
Position: 53
Indicative price: 20.92 €
JOINT Lave-Linge HUBLOT TG90-1416WMIDG-3047 HD 4 AVEC DURITE
JOINT Lave-Linge HUBLOT TG90-1416WMIDG-3047 HD 4 AVEC DURITE
Position: 54
Indicative price: 50.73 €
RESISTANCE Lave-Linge 1800w + SONDE
RESISTANCE Lave-Linge 1800w + SONDE
Position: 55
Indicative price: 52.12 €
CUVE Lave-Linge 1/2 AVANT
CUVE Lave-Linge 1/2 AVANT
Position: 56
Indicative price: 125.33 €
TAMBOUR Lave-Linge + CROISILLON
TAMBOUR Lave-Linge + CROISILLON
Position: 57
Indicative price: 112.4 €
