Exploded view lave linge BELLAVITA LF1214BCMSC 942830

Discover the complete exploded view lave linge BELLAVITA LF1214BCMSC 942830, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BELLAVITA LF1214BCMSC 942830 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

PALIER Lave-Linge KIT
PALIER Lave-Linge KIT
Indicative price: 49.72 €
PLATINE Lave-Linge COMMANDE
PLATINE Lave-Linge COMMANDE
Position: 104
Indicative price: 211.1 €

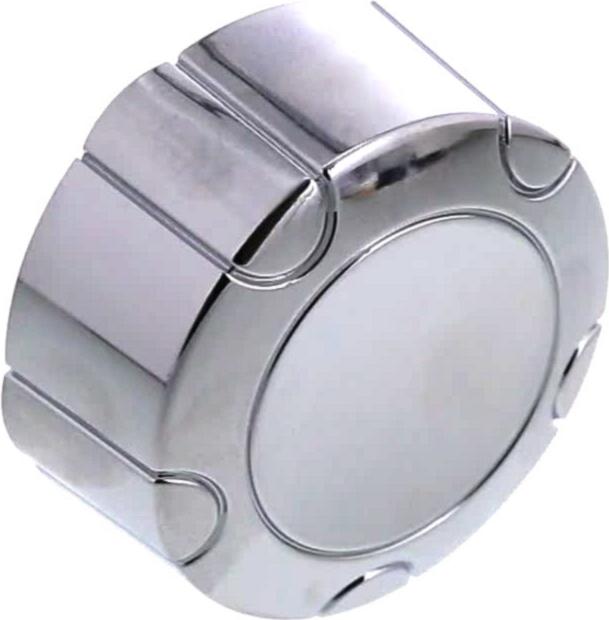

MANETTE Lave-Linge CHROME CZHW 1
MANETTE Lave-Linge CHROME CZHW 1
Position: 113
BANDEAU Lave-Linge
BANDEAU Lave-Linge
Position: 115

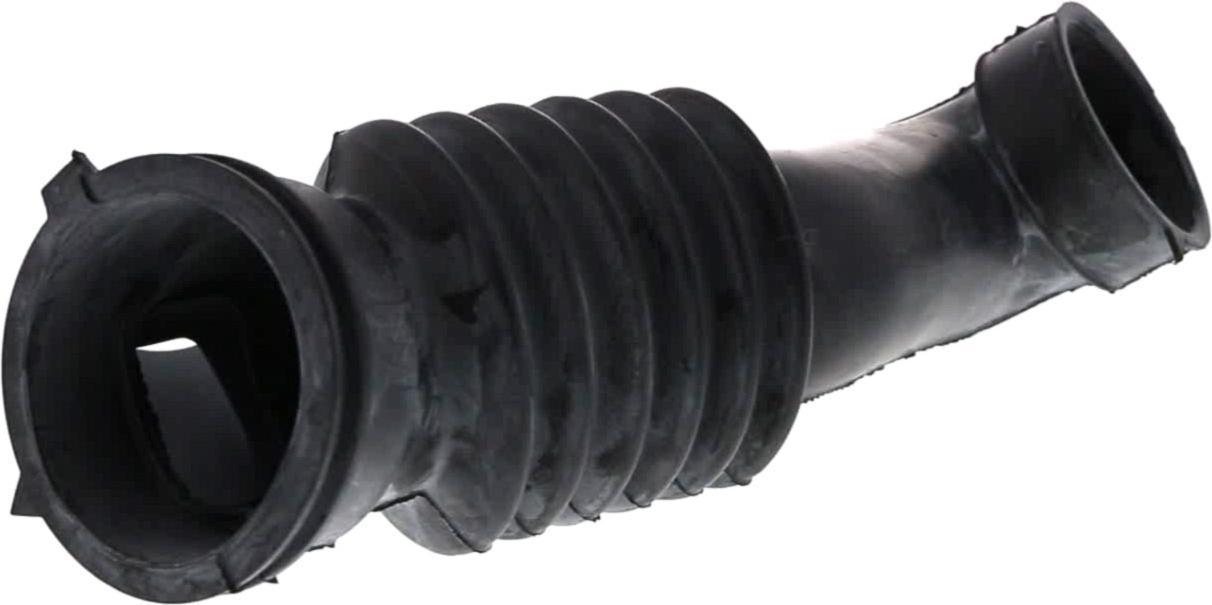

DURITE Lave-Linge BOITE/CUVE
DURITE Lave-Linge BOITE/CUVE
Position: 136
Indicative price: 25.02 €
DESSUS Lave-Linge TOP
DESSUS Lave-Linge TOP
Position: 202
Indicative price: 181.25 €
RESSORT Lave-Linge CUVE
RESSORT Lave-Linge CUVE
Position: 204
Indicative price: 18.72 €
ETRIER Lave-Linge RESSORT
ETRIER Lave-Linge RESSORT
Position: 205
Indicative price: 5.65 €

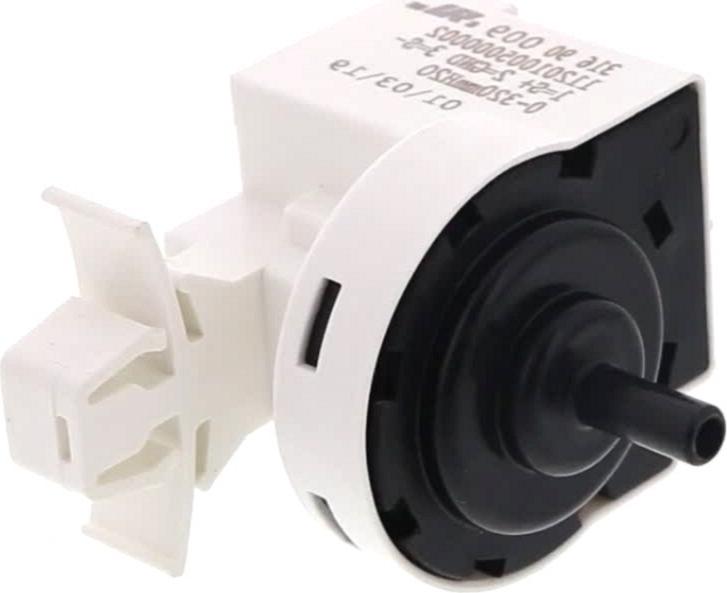

PRESSOSTAT Lave-Linge 316 90 009
PRESSOSTAT Lave-Linge 316 90 009
Position: 208
Indicative price: 42.33 €

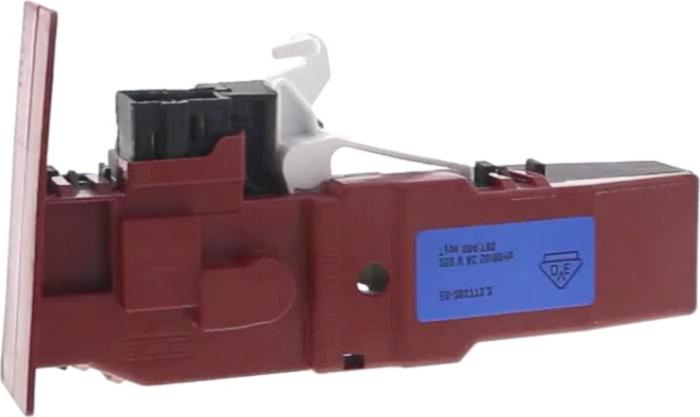

SECURITE Lave-Linge PORTE EG-380773.2 884,T85
SECURITE Lave-Linge PORTE EG-380773.2 884,T85
Position: 217
Indicative price: 132.55 €
CROCHET Lave-Linge HUBLOT
CROCHET Lave-Linge HUBLOT
Position: 223
Indicative price: 15.75 €
PLAQUE Lave-Linge CHARNIERE
PLAQUE Lave-Linge CHARNIERE
Position: 232
Indicative price: 12.51 €
HUBLOT Lave-Linge VERRE D425MM H114MM 3 ENCOCHES
HUBLOT Lave-Linge VERRE D425MM H114MM 3 ENCOCHES
Position: 233
Indicative price: 147.42 €

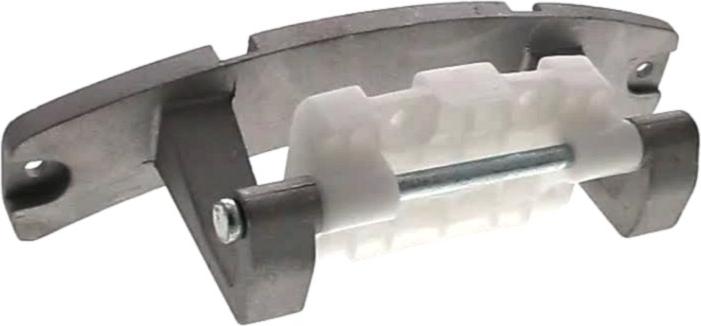

CHARNIERE Lave-Linge HUBLOT WDMA0202000001
CHARNIERE Lave-Linge HUBLOT WDMA0202000001
Position: 241
Indicative price: 26.61 €
POMPE Lave-Linge VIDANGE
POMPE Lave-Linge VIDANGE
Position: 249
Indicative price: 100.89 €

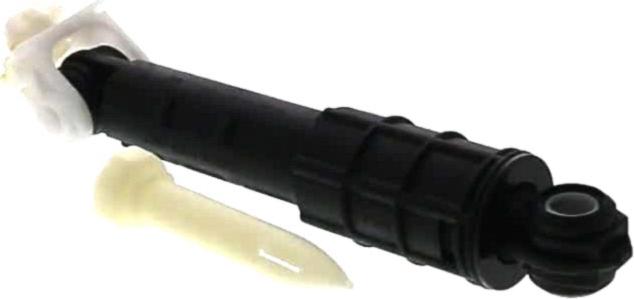

AMORTISSEUR Lave-Linge WDMA0014000000 85N
AMORTISSEUR Lave-Linge WDMA0014000000 85N
Position: 253
Indicative price: 82.36 €
Contre porte Lave-Linge HUBLOT
Contre porte Lave-Linge HUBLOT
Position: 282
Indicative price: 30.71 €
ENJOLIVEUR Lave-Linge HUBLOT CHROME D537MM FA20141022B CZHW
ENJOLIVEUR Lave-Linge HUBLOT CHROME D537MM FA20141022B CZHW
Position: 283
Indicative price: 197.72 €
ECROU Lave-Linge Contre-poids
ECROU Lave-Linge Contre-poids
Position: 301
Indicative price: 3.6 €
RONDELLE Lave-Linge Contre-poids
RONDELLE Lave-Linge Contre-poids
Position: 302
Indicative price: 4.01 €
Contre-poids Lave-Linge SUPERIEUR Avant
Contre-poids Lave-Linge SUPERIEUR Avant
Position: 303
Indicative price: 91.31 €

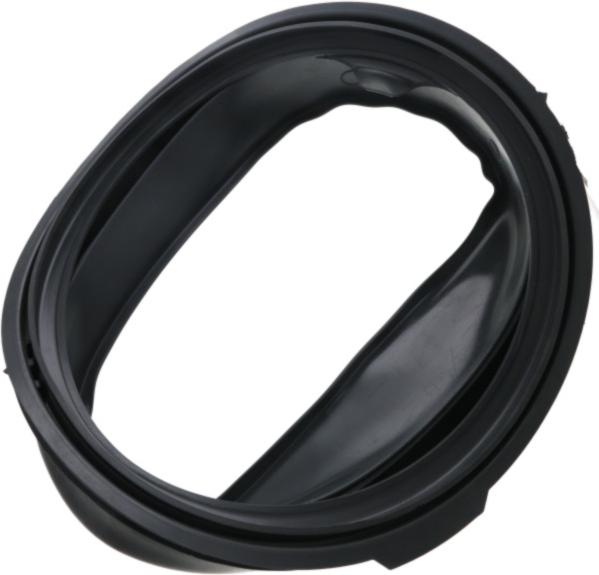

JOINT Lave-Linge HUBLOT EPDM PA.1 WDMA0303000003
JOINT Lave-Linge HUBLOT EPDM PA.1 WDMA0303000003
Position: 306
Indicative price: 116.67 €
VIS Lave-Linge Contre-poids
VIS Lave-Linge Contre-poids
Position: 307
Indicative price: 8.1 €
CUVE Lave-Linge 1/2 AVANT
CUVE Lave-Linge 1/2 AVANT
Position: 308
Indicative price: 318.83 €
Batteur Lave-Linge TAMBOUR KIT + JOINT CUVE
Batteur Lave-Linge TAMBOUR KIT + JOINT CUVE
Position: 310
Indicative price: 51.61 €
CUVE Lave-Linge 1/2 ARRIERE
CUVE Lave-Linge 1/2 ARRIERE
Position: 315
Indicative price: 241.43 €

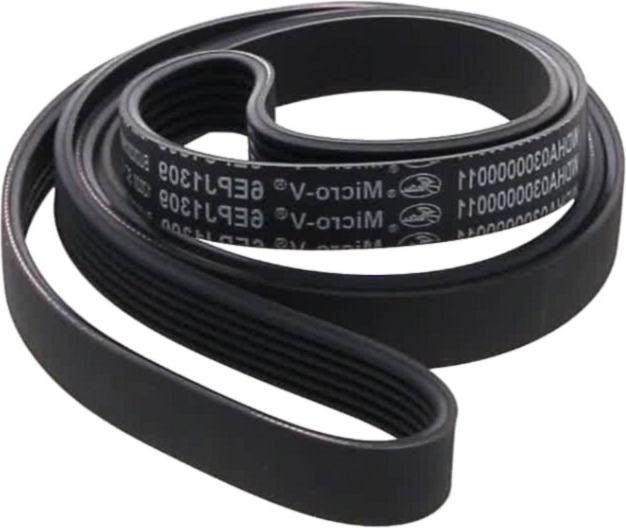

COURROIE Lave-Linge 7EPJ1309 1309EPJ7
COURROIE Lave-Linge 7EPJ1309 1309EPJ7
Position: 326
Indicative price: 37.85 €
MOTEUR Lave-Linge + PLATINE INVERTER
MOTEUR Lave-Linge + PLATINE INVERTER
Position: 333
Indicative price: 376.21 €

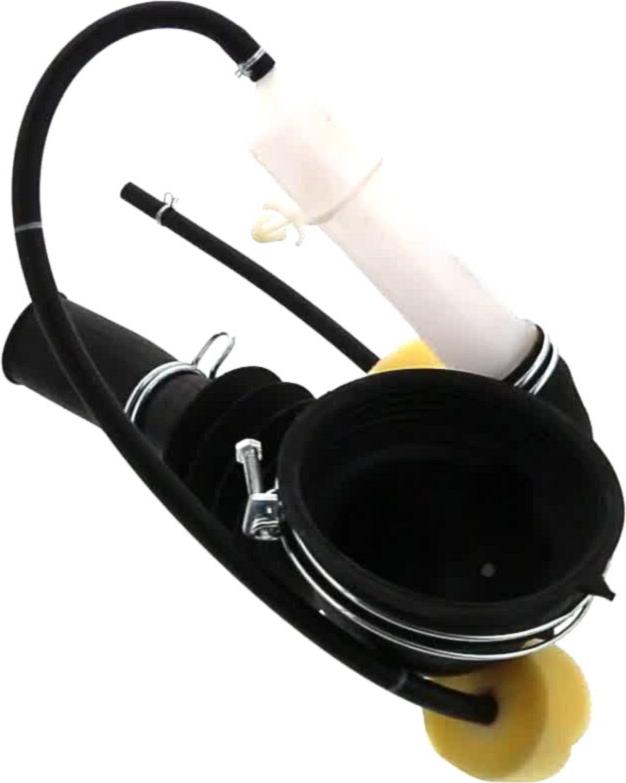

DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 340
Indicative price: 125.32 €
RESISTANCE Lave-Linge 1800W
RESISTANCE Lave-Linge 1800W
Position: 345
Indicative price: 96.01 €
