Exploded view micro-ondes DAEWOO KOC-9Q4T7WA9 KOC.9Q4T7WA9 KOC9Q4T7WA9

Discover the complete exploded view micro-ondes DAEWOO KOC-9Q4T7WA9 KOC.9Q4T7WA9 KOC9Q4T7WA9, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your micro-ondes. Quickly find the parts you need to extend the life of your micro-ondes DAEWOO KOC-9Q4T7WA9 KOC.9Q4T7WA9 KOC9Q4T7WA9 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

Résistance Micro onde QUARTZ 800W 230V 270mm E
Résistance Micro onde QUARTZ 800W 230V 270mm E
Position: 1
PLAQUE Micro onde MICA 100*70
PLAQUE Micro onde MICA 100*70
Position: 2
Indicative price: 41.5 €
AXE Micro onde ENTRAINEUR PLAT
AXE Micro onde ENTRAINEUR PLAT
Position: 5
Indicative price: 31.27 €
RESSORT Micro onde HELICE VENTILATEUR
RESSORT Micro onde HELICE VENTILATEUR
Position: 5
Indicative price: 2.83 €
MOTEUR Micro onde VENTILATEUR
MOTEUR Micro onde VENTILATEUR
Position: 8
SONDE Micro onde TEMPERATURE
SONDE Micro onde TEMPERATURE
Position: 10
Indicative price: 21.77 €
Interrupteur Micro onde PORTE
Interrupteur Micro onde PORTE
Position: 15
Indicative price: 13.84 €
Interrupteur Micro onde PORTE
Interrupteur Micro onde PORTE
Position: 16
Indicative price: 16.36 €
PIED Micro onde
PIED Micro onde
Position: 21
Indicative price: 7.65 €
CONDENSATEUR Micro onde 0.98uF
CONDENSATEUR Micro onde 0.98uF
Position: 22
Indicative price: 29.5 €
DIODE Micro onde HT CL01-12 RG507
DIODE Micro onde HT CL01-12 RG507
Position: 24
Indicative price: 9.46 €

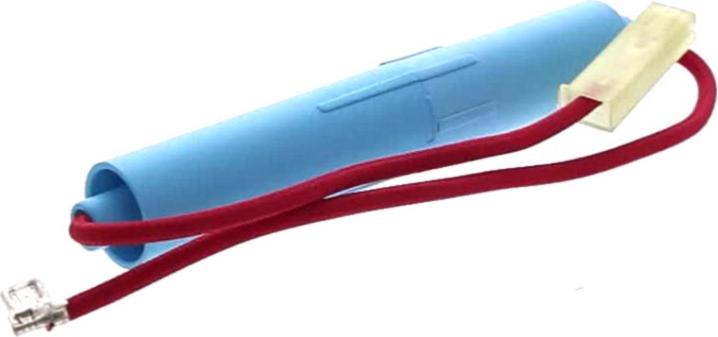

FUSIBLE Micro onde HT 0,70A 5KV
FUSIBLE Micro onde HT 0,70A 5KV
Position: 26
Indicative price: 16.89 €
AMPOULE Micro onde 25W T170 (COSSES+VERRE Hotte 73MM)
AMPOULE Micro onde 25W T170 (COSSES+VERRE Hotte 73MM)
Position: 31
Indicative price: 12.79 €

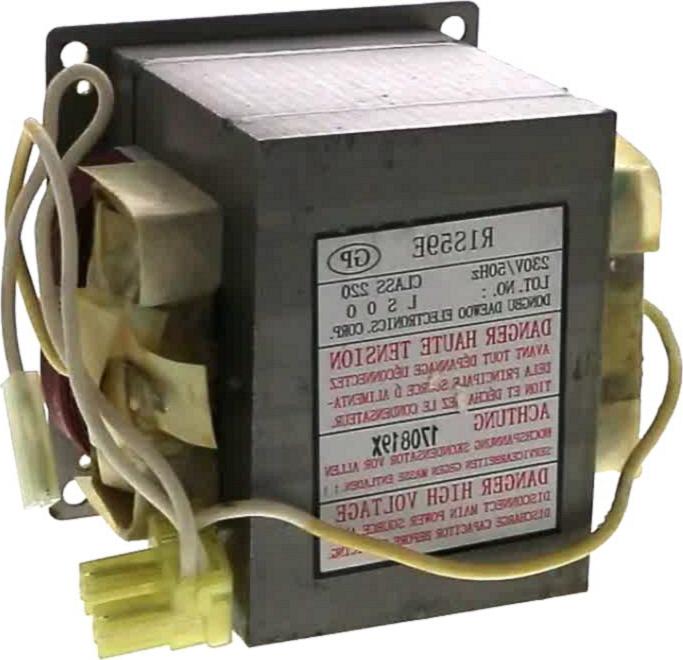

TRANSFORMATEUR Micro onde HT R1S59E
TRANSFORMATEUR Micro onde HT R1S59E
Position: 33
Indicative price: 94.71 €
MAGNETRON Micro onde 2M218 J FL 210817BD (FIXATION SANS VIS COSSES OPPOSEES)
MAGNETRON Micro onde 2M218 J FL 210817BD (FIXATION SANS VIS COSSES OPPOSEES)
Position: 43
Indicative price: 102.22 €
THERMOSTAT Micro onde 150°C
THERMOSTAT Micro onde 150°C
Position: 50
Indicative price: 9.11 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 55
ENTRAINEUR Micro onde CERCEAU A ROULETTE 232MM 242MM(avec roue) Ø roue 14*8
ENTRAINEUR Micro onde CERCEAU A ROULETTE 232MM 242MM(avec roue) Ø roue 14*8
Position: 56
Indicative price: 11.91 €
PLATEAU Micro onde 325mm
PLATEAU Micro onde 325mm
Position: 57
Indicative price: 27.77 €
