Exploded view plaque de cuisson TELEFUNKEN TGV5C
Discover the complete exploded view plaque de cuisson TELEFUNKEN TGV5C, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson TELEFUNKEN TGV5C and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
KIT Plaque ENCASTREMENT + JOINT
Indicative price: 12.31 €
NOTICE Plaque UTILISATION
Indicative price: 10.76 €
CABLAGE Plaque
Indicative price: 26.45 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position: 4
Indicative price: 2.38 €
BORNIER Plaque Alimentation 17.5A 400V T125 NOVA
Position: 30
Indicative price: 17.88 €
CABLE Plaque ALIMENTATION 3G0.75 1.1m
Position: 31
Indicative price: 18.4 €
TUYAU Alimentation BRULEUR Semi-rapide GAUCHE
Position: 58
Indicative price: 13.53 €
TUYAU Alimentation BRULEUR Semi-rapide DROIT
Position: 58
Indicative price: 14.35 €
TUYAU Alimentation BRULEUR Auxiliaire
Position: 58
Indicative price: 14.47 €
TUYAU Alimentation BRULEUR Rapide
Position: 58
Indicative price: 14.09 €
TUYAU Alimentation BRULEUR CENTRAL WOK
Position: 58
Indicative price: 16.14 €
ALLUMEUR Cuisinière 6 FEUX
Position: 60
Indicative price: 29.43 €
TUYAU Alimentation GAZ
Position: 63
Indicative price: 15.07 €
JOINT Cuisinière ARRIVEE GAZ
Position: 64
Indicative price: 2.47 €
EMBOUT Cuisinière Gaz Butane G1/2 NF
Position: 65
Indicative price: 10.61 €
EMBOUT Cuisinière Gaz Naturel
Position: 65
Indicative price: 5.85 €
ROBINET Plaque Rapide 48
Position: 66
Indicative price: 24.2 €
ROBINET Plaque Semi-rapide 35
Position: 66
Indicative price: 26.7 €

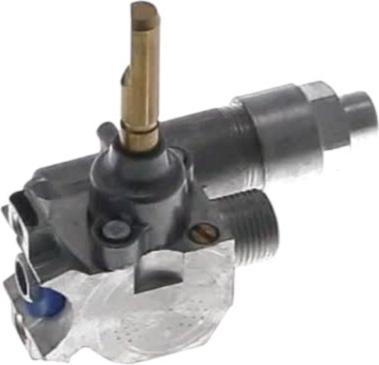

ROBINET Plaque Auxiliaire 28
Position: 66
Indicative price: 25.05 €
ROBINET Plaque WOK
Position: 66
Indicative price: 24.22 €

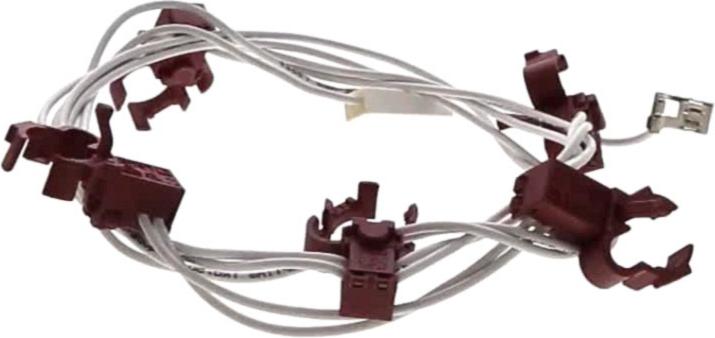

Interrupteur Plaque ALLUMAGE ENSEMBLE 5G FEREL
Position: 69
Indicative price: 20.43 €
MANETTE Plaque FLAT
Position: 76
Indicative price: 9.44 €
SUPPORT Plaque ROBINET TURAS
Position: 83
Indicative price: 3.21 €
VIS Cuisinière SUPPORT INJECTEUR M4*10
Position: 89
Indicative price: 2.6 €
VIS Plaque M4*10
Position: 89
Indicative price: 2.23 €
ECROU Plaque
Position: 91
Indicative price: 2.51 €
CHAPEAU Plaque Semi-rapide NOIR MAT
Position: 92
Indicative price: 16.41 €
CHAPEAU Plaque Rapide NOIR MAT
Position: 92
Indicative price: 16.88 €
CHAPEAU Plaque BRULEUR WOK Intérieure MAT Dext61MM Dint56MM
Position: 92
Indicative price: 20.33 €
CHAPEAU Plaque BRULEUR WOK Extérieure MAT DE131MM DI90MM
Position: 92
Indicative price: 17.45 €
CHAPEAU Plaque Auxiliaire D55MM NOIR MAT
Position: 92
Indicative price: 14.08 €
TETE Cuisinière BRULEUR Rapide SABAF 90mm
Position: 93
Indicative price: 13.39 €
TETE Cuisinière BRULEUR Semi-rapide SABAF 65mm
Position: 93
Indicative price: 14.1 €
TETE Cuisinière BRULEUR Auxiliaire SABAF 45mm
Position: 93
Indicative price: 11.59 €
TETE Plaque BRULEUR WOK
Position: 93
Indicative price: 39.95 €
GRILLE Plaque FONTE 1F
Position: 95
Indicative price: 52 €

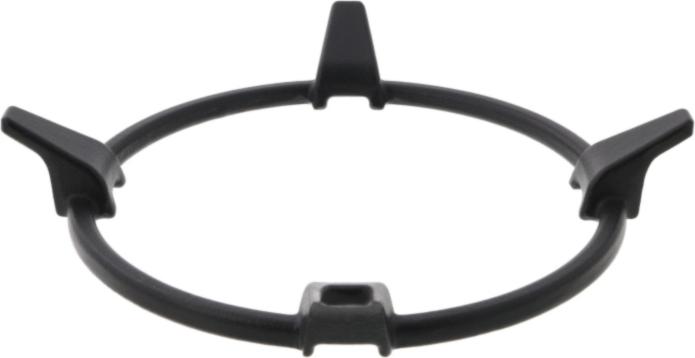

GRILLE Plaque FONTE WOK
Position: 95
Indicative price: 51.9 €
PATIN Plaque GRILLE
Position: 96
Indicative price: 2.75 €
JOINT Plaque BOUGIE WOK
Position: 98
Indicative price: 14.25 €
BOUGIE Plaque ALLUMAGE ROBINET COPRECI
Position: 99
Indicative price: 13.79 €
BOUGIE Plaque WOK L600 3.6KW
Position: 99
Indicative price: 23.45 €
CABLE Cuisinière MASSE
Position: 99
Indicative price: 7.1 €
CLIPS Plaque BOUGIE/THERMOCOUPLE
Position: 100
Indicative price: 2.6 €
CLIPS Plaque BOUGIE/THERMOCOUPLE WOK
Position: 100
Indicative price: 3.88 €
THERMOCOUPLE Cuisinière 250mm
Position: 101
Indicative price: 19.62 €
THERMOCOUPLE Cuisinière 520mm
Position: 101
Indicative price: 19.59 €
THERMOCOUPLE Cuisinière 500mm WOK A EMBOITER
Position: 101
Indicative price: 19.52 €
ECROU Plaque THERMOCOUPLE
Position: 103
Indicative price: 2.52 €
JEU Plaque Injecteur Gaz Naturel 4G+WOK
Position: 109
Indicative price: 23.82 €
JEU Plaque Injecteur Gaz Butane 4G+WOK
Position: 109
Indicative price: 26.81 €
JOINT Plaque MANETTE
Position: 167
Indicative price: 5.2 €
TOLE Plaque Inférieur
Position: 168
Indicative price: 41.5 €
KIT Plaque ENCASTREMENT
Position: 183
Indicative price: 9.35 €
GRILLE Plaque FONTE WOK
Position: 257
Indicative price: 30.89 €
TAQUE Plaque VERRE 4G+WOK
Position: 269
Indicative price: 125.41 €
RONDELLE Plaque
Position: 331
Indicative price: 2.65 €
TOLE Plaque
Position: 494
Indicative price: 37.9 €
SUPPORT Cuisinière Injecteur Rapide SABAF VIS M4
Position: 619
Indicative price: 27.16 €
SUPPORT Cuisinière Injecteur Auxiliaire SABAF VIS M4
Position: 619
Indicative price: 18.07 €
SUPPORT Cuisinière Injecteur WOK
Position: 619
Indicative price: 35.13 €
SUPPORT Cuisinière Injecteur Semi-rapide SABAF VIS M4
Position: 619
Indicative price: 19.15 €
