Exploded view réfrigérateur TELEFUNKEN TFK343MIX

Discover the complete exploded view réfrigérateur TELEFUNKEN TFK343MIX, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur TELEFUNKEN TFK343MIX and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

INDICATEUR Froid ZONE 0-4°C
INDICATEUR Froid ZONE 0-4°C
Indicative price: 5.92 €
CLAPET Froid ANTI RETOUR EVACUATION EAU
CLAPET Froid ANTI RETOUR EVACUATION EAU
Indicative price: 9.97 €
NOTICE Froid UTILISATION
NOTICE Froid UTILISATION
Indicative price: 10.44 €
ISOLANT Froid MASTIC 120*90*4
ISOLANT Froid MASTIC 120*90*4
Indicative price: 7.53 €
CHARNIERE Froid Supérieur 54CM
CHARNIERE Froid Supérieur 54CM
Position: 2
Indicative price: 14.81 €
CHARNIERE Froid CENTRALE 473
CHARNIERE Froid CENTRALE 473
Position: 9
Indicative price: 12.81 €
BOUCHON Froid GRAND MODELE BLANC
BOUCHON Froid GRAND MODELE BLANC
Position: 12
Indicative price: 2.34 €
Interrupteur Froid LUMIERE 2 COSSES
Interrupteur Froid LUMIERE 2 COSSES
Position: 13
Indicative price: 13.56 €
PIED Froid M8*35 NOIR
PIED Froid M8*35 NOIR
Position: 16
Indicative price: 3.2 €
PIED Froid ECROU ( sans axe )
PIED Froid ECROU ( sans axe )
Position: 16
Indicative price: 4.56 €
BAC Froid GLACONS Blanc 18 VBE5849 99612935
BAC Froid GLACONS Blanc 18 VBE5849 99612935
Position: 18
Indicative price: 10.59 €
AMPOULE Froid LED E14 17.38MM 57*24 1.1W 6500K
AMPOULE Froid LED E14 17.38MM 57*24 1.1W 6500K
Position: 22
Indicative price: 7.95 €
DOUILLE Froid LAMPE
DOUILLE Froid LAMPE
Position: 23
Indicative price: 13.6 €
PLAFONNIER Froid LAMPE 319
PLAFONNIER Froid LAMPE 319
Position: 28
Indicative price: 12.1 €
MANETTE Froid THERMOSTAT 319 SW
MANETTE Froid THERMOSTAT 319 SW
Position: 29
Indicative price: 10.59 €
CLAYETTE Froid Réfrigérateur 343 493,5*330*4
CLAYETTE Froid Réfrigérateur 343 493,5*330*4
Position: 37
Indicative price: 29.01 €
CLAYETTE Froid Réfrigérateur 263 448*282*4
CLAYETTE Froid Réfrigérateur 263 448*282*4
Position: 37
Indicative price: 27.25 €
PROFIL Froid DESSUS BAC LEGUMES 366 SW 392mm (4mm)
PROFIL Froid DESSUS BAC LEGUMES 366 SW 392mm (4mm)
Position: 38
Indicative price: 13.63 €
ENJOLIVEUR Froid CLAYETTE ARRIERE GAUCHE
ENJOLIVEUR Froid CLAYETTE ARRIERE GAUCHE
Position: 38
Indicative price: 13.66 €
ENJOLIVEUR Froid CLAYETTE ARRIERE DROIT
ENJOLIVEUR Froid CLAYETTE ARRIERE DROIT
Position: 38
Indicative price: 12.46 €
DESSUS Froid BAC LEGUMES 343 496,5*462*4
DESSUS Froid BAC LEGUMES 343 496,5*462*4
Position: 39
Indicative price: 22.2 €
ENJOLIVEUR Froid DESSUS BAC LEGUMES Blanc SW
ENJOLIVEUR Froid DESSUS BAC LEGUMES Blanc SW
Position: 40
Indicative price: 8.05 €
BAC Froid LEGUMES 375 TRANSPARENT GRIS VBE6873 99613653
BAC Froid LEGUMES 375 TRANSPARENT GRIS VBE6873 99613653
Position: 41
Indicative price: 44.85 €
CACHE Froid TROU Interrupteur BOITE Thermostat
CACHE Froid TROU Interrupteur BOITE Thermostat
Position: 69
Indicative price: 2.63 €
CACHE Froid VIS BANDEAU 2451S SW
CACHE Froid VIS BANDEAU 2451S SW
Position: 77
Indicative price: 4.63 €
CACHE Froid CHARNIERE Supérieur 54CM GRIS VSG VBE7647 99616120
CACHE Froid CHARNIERE Supérieur 54CM GRIS VSG VBE7647 99616120
Position: 89
Indicative price: 7.08 €
CACHE Froid GAUCHE 2451 GRIS VSG
CACHE Froid GAUCHE 2451 GRIS VSG
Position: 89
Indicative price: 2.19 €

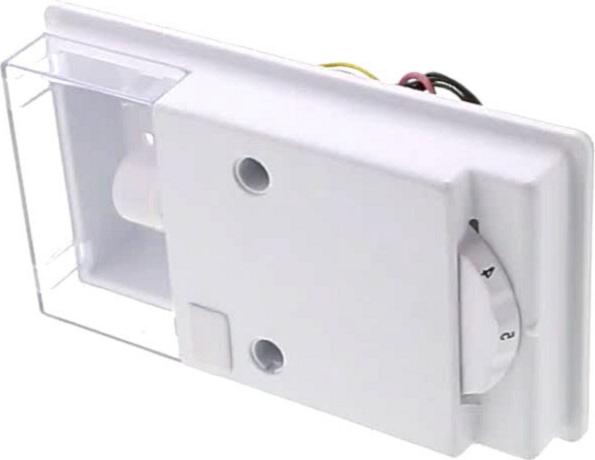

BOITIER Froid + THERMOSTAT + CABLAGE BORNIER 4 COSSES
BOITIER Froid + THERMOSTAT + CABLAGE BORNIER 4 COSSES
Position: 111
Indicative price: 88.98 €
BOITIER Froid THERMOSTAT 319 VBE7756 99604842
BOITIER Froid THERMOSTAT 319 VBE7756 99604842
Position: 112
Indicative price: 13.28 €
SUPPORT Froid THERMOSTAT VBE4149
SUPPORT Froid THERMOSTAT VBE4149
Position: 115
Indicative price: 6.01 €
DOUILLE Froid Charnière GRIS CLAIR 345P
DOUILLE Froid Charnière GRIS CLAIR 345P
Position: 151
Indicative price: 6.26 €
BOUCHON Froid TROU CHARNIERE
BOUCHON Froid TROU CHARNIERE
Position: 152
Indicative price: 2.68 €
CACHE Froid TROU GRIS
CACHE Froid TROU GRIS
Position: 152
Indicative price: 3.61 €
PTC Froid Congélateur 343M-AGE-HTSZ
PTC Froid Congélateur 343M-AGE-HTSZ
Position: 153
Indicative price: 102.06 €
MARQUE Froid TELEFUNKEN
MARQUE Froid TELEFUNKEN
Position: 154
Indicative price: 19.62 €
PTC Froid Congélateur 343-AGE
PTC Froid Congélateur 343-AGE
Position: 155
Indicative price: 147.05 €
SUPPORT Froid ŒUFS TRANSPARENT CLAIR VBE5982 99612941
SUPPORT Froid ŒUFS TRANSPARENT CLAIR VBE5982 99612941
Position: 159
Indicative price: 9.92 €
CACHE Froid VIS BANDEAU GRIS
CACHE Froid VIS BANDEAU GRIS
Position: 164
Indicative price: 2.68 €
MENTONNET Froid 373
MENTONNET Froid 373
Position: 171
Indicative price: 7.89 €
RENFORT Froid 473
RENFORT Froid 473
Position: 173
Indicative price: 10.43 €
BLOCAGE Froid PORTE Congélateur
BLOCAGE Froid PORTE Congélateur
Position: 174
Indicative price: 5.66 €
RENFORT Froid 473
RENFORT Froid 473
Position: 174
Indicative price: 6.05 €
BALCONNET Froid Supérieur OU CENTRAL 373 TRANSPARENT GRIS VBE6238 99611842 2
BALCONNET Froid Supérieur OU CENTRAL 373 TRANSPARENT GRIS VBE6238 99611842 2
Position: 175
Indicative price: 21.48 €
BALCONNET Froid BOUTEILLES 373 TRANSPARENT GRIS VBE6239 99611843
BALCONNET Froid BOUTEILLES 373 TRANSPARENT GRIS VBE6239 99611843
Position: 177
Indicative price: 29.08 €
DOUILLE Froid Inférieur Porte Inférieur GRISE VBE1636 GRIS
DOUILLE Froid Inférieur Porte Inférieur GRISE VBE1636 GRIS
Position: 187
Indicative price: 5.73 €
DOUILLE Froid Supérieur Porte Supérieur 540CE GRISE
DOUILLE Froid Supérieur Porte Supérieur 540CE GRISE
Position: 189
Indicative price: 6.4 €
BALCONNET Froid Congélateur 343 ERA TRANSPARENT GRIS VBE7823
BALCONNET Froid Congélateur 343 ERA TRANSPARENT GRIS VBE7823
Position: 193
Indicative price: 26.85 €
CONDENSEUR Froid 60cm 24
CONDENSEUR Froid 60cm 24
Position: 201
Indicative price: 66.58 €
ENTRETOISE Froid NOIRE CONDENSEUR VBE374
ENTRETOISE Froid NOIRE CONDENSEUR VBE374
Position: 203
Indicative price: 2.42 €
VIS Froid 4.8*13
VIS Froid 4.8*13
Position: 205
Indicative price: 2.45 €
MASTIC Froid ANTI-VIBRATION
MASTIC Froid ANTI-VIBRATION
Position: 207
Indicative price: 5.52 €
CABLE Froid ALIMENTATION 2.1m 3*0.75 sans cosses
CABLE Froid ALIMENTATION 2.1m 3*0.75 sans cosses
Position: 210
Indicative price: 19.08 €
RELAIS Froid Démarrage+thermique TG1114Y
RELAIS Froid Démarrage+thermique TG1114Y
Position: 211
Indicative price: 27.34 €
CONDO Froid 4uF 450V COSSES 6.3 CBB65A-2
CONDO Froid 4uF 450V COSSES 6.3 CBB65A-2
Position: 212
Indicative price: 10.23 €
BAC Froid EAU DEGIVRAGE
BAC Froid EAU DEGIVRAGE
Position: 214
Indicative price: 11.86 €
DESHYDRATEUR Froid 7.5G
DESHYDRATEUR Froid 7.5G
Position: 215
Indicative price: 14.58 €
FIXATION Froid COMPRESSEUR 3200
FIXATION Froid COMPRESSEUR 3200
Position: 216
Indicative price: 3.6 €
COMPRESSEUR Froid TG1114Y (avec attache sur compresseur)
COMPRESSEUR Froid TG1114Y (avec attache sur compresseur)
Position: 217
Indicative price: 135.67 €
BASE Froid SUPPORT COMPRESSEUR
BASE Froid SUPPORT COMPRESSEUR
Position: 218
Indicative price: 37.08 €
CABLE Froid MASSE
CABLE Froid MASSE
Position: 219
Indicative price: 5.56 €
VIS Froid
VIS Froid
Position: 224
Indicative price: 2.48 €
TUYAU Froid
TUYAU Froid
Position: 225
Indicative price: 6.92 €
ROUE Froid CHASSIS NOIRE
ROUE Froid CHASSIS NOIRE
Position: 227
Indicative price: 4.12 €
AXE Froid ROUE ARRIERE 43mm diam=5.5
AXE Froid ROUE ARRIERE 43mm diam=5.5
Position: 228
Indicative price: 4.51 €
ROUE Froid GLISSIERE COTE BAC
ROUE Froid GLISSIERE COTE BAC
Position: 333
Indicative price: 5.57 €
Evaporateur Froid Congélateur 343
Evaporateur Froid Congélateur 343
Position: 401
Indicative price: 80.7 €
FOND Froid Congélateur HORIZONTAL 343 VBE7837 99616694
FOND Froid Congélateur HORIZONTAL 343 VBE7837 99616694
Position: 408
Indicative price: 29.11 €
FOND Froid Congélateur VERTICAL 343M VBE7838
FOND Froid Congélateur VERTICAL 343M VBE7838
Position: 408
Indicative price: 33.61 €
SONDE Froid KIT REMPLACEMENT pos 434 2.7Kohms(19°c)
SONDE Froid KIT REMPLACEMENT pos 434 2.7Kohms(19°c)
Position: 424
Indicative price: 21.35 €
FOND Froid Réfrigérateur 343 XFAN VBE6254 99617339
FOND Froid Réfrigérateur 343 XFAN VBE6254 99617339
Position: 428
Indicative price: 46.89 €
CACHE Froid VENTILATEUR Réfrigérateur 473 SW
CACHE Froid VENTILATEUR Réfrigérateur 473 SW
Position: 430
Indicative price: 16.55 €
MOTEUR Froid VENTILATEUR DC 12V 0.16A RDL9025S-X CARRE XFAN
MOTEUR Froid VENTILATEUR DC 12V 0.16A RDL9025S-X CARRE XFAN
Position: 431
Indicative price: 31.14 €
MOTEUR Froid VENTILATEUR 12V 1.38W EFA0301S3-1B01U-AA9 SUNON ROND
MOTEUR Froid VENTILATEUR 12V 1.38W EFA0301S3-1B01U-AA9 SUNON ROND
Position: 431
Indicative price: 27.69 €
SUPPORT Froid MOTEUR Ventilation Réfrigérateur 916
SUPPORT Froid MOTEUR Ventilation Réfrigérateur 916
Position: 432
Indicative price: 13.3 €
JOINT Froid Congélateur 343 GRIS
JOINT Froid Congélateur 343 GRIS
Position: 459
Indicative price: 29.95 €
JOINT Froid Réfrigérateur 343 GRIS
JOINT Froid Réfrigérateur 343 GRIS
Position: 460
Indicative price: 33.4 €
SONDE Froid DEGIVRAGE + FUSIBLE
SONDE Froid DEGIVRAGE + FUSIBLE
Position: 499
Indicative price: 27.52 €
CACHE Froid TROU CENTRAL Blanc
CACHE Froid TROU CENTRAL Blanc
Position: 505
Indicative price: 2.63 €

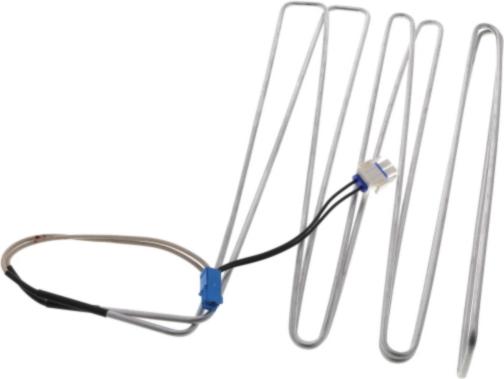

RESISTANCE Froid Congélateur 128W 343
RESISTANCE Froid Congélateur 128W 343
Position: 532
Indicative price: 26.77 €
PLATINE Froid THERMOSTAT 343M R14 V29.45.50-23684246
PLATINE Froid THERMOSTAT 343M R14 V29.45.50-23684246
Position: 623
Indicative price: 33.79 €
CACHE Froid SONDE
CACHE Froid SONDE
Position: 624
Indicative price: 11.76 €
AXE Froid MANETTE Thermostat
AXE Froid MANETTE Thermostat
Position: 627
Indicative price: 3.15 €
CHARNIERE Froid Inférieur 373
CHARNIERE Froid Inférieur 373
Position: 641
Indicative price: 15.45 €
RAIL Froid GAUCHE 453 Blanc VBE6474L453SOL 99613194
RAIL Froid GAUCHE 453 Blanc VBE6474L453SOL 99613194
Position: 726
Indicative price: 14.04 €
RAIL Froid DROIT 453 Blanc VBE6474R453SAG 99613194
RAIL Froid DROIT 453 Blanc VBE6474R453SAG 99613194
Position: 727
Indicative price: 12.66 €
AMORTISSEUR Froid COMPRESSEUR
AMORTISSEUR Froid COMPRESSEUR
Position: 1026
Indicative price: 2.35 €
