Exploded view plaque de cuisson BAUMATIC PHI350

Discover the complete exploded view plaque de cuisson BAUMATIC PHI350, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson BAUMATIC PHI350 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

INDUCTEUR Plaque 160mm 1400w 75.08010.102
INDUCTEUR Plaque 160mm 1400w 75.08010.102
Position: 1
Indicative price: 128.62 €

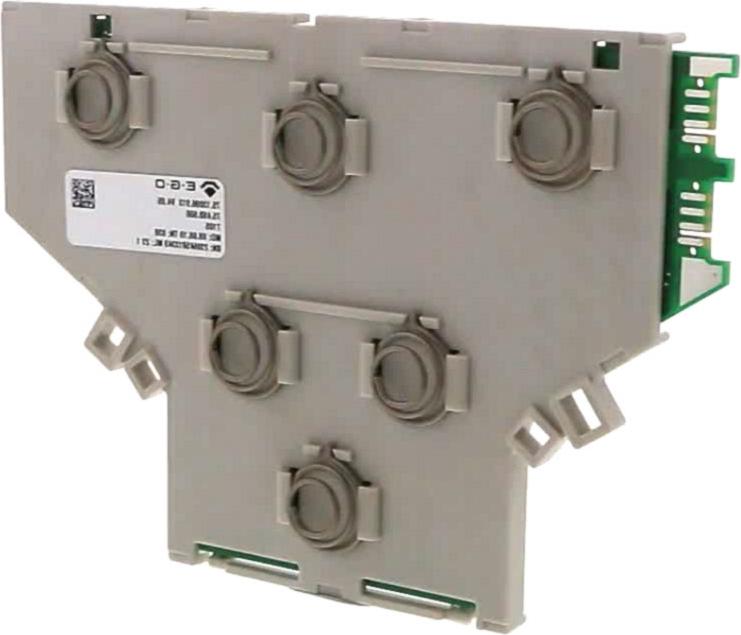

PLATINE Plaque COMMANDE 75.13096.912
PLATINE Plaque COMMANDE 75.13096.912
Position: 3
Indicative price: 122.78 €

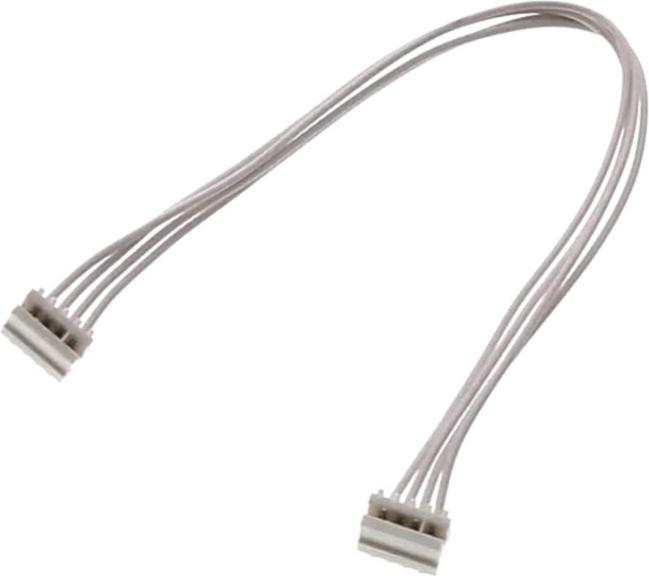

CABLE Plaque LIAISON INDUCTEUR
CABLE Plaque LIAISON INDUCTEUR
Position: 4
Indicative price: 15.8 €
MEUBLE Plaque ALU
MEUBLE Plaque ALU
Position: 5
Indicative price: 76.7 €

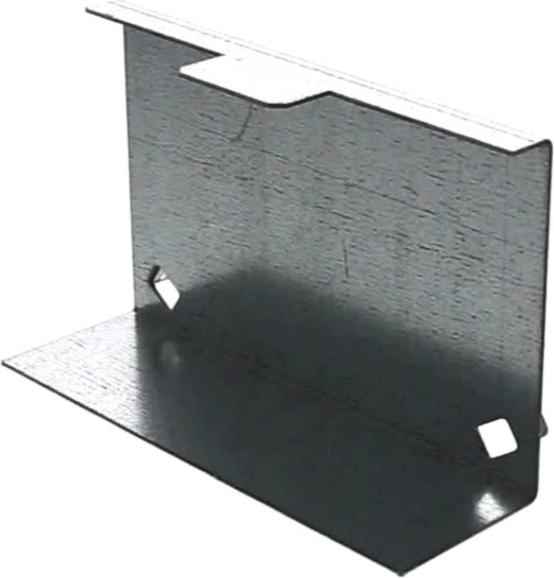

SUPPORT Plaque PLATINE
SUPPORT Plaque PLATINE
Position: 6
Indicative price: 29.44 €
CABLE Plaque Alimentation
CABLE Plaque Alimentation
Position: 7
Indicative price: 13.64 €

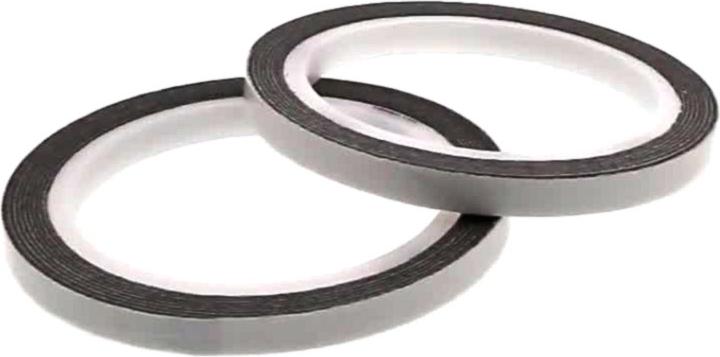

JOINT Plaque TAQUE
JOINT Plaque TAQUE
Position: 8
Indicative price: 6.21 €
TAQUE Plaque VITRO E
TAQUE Plaque VITRO E
Position: 9

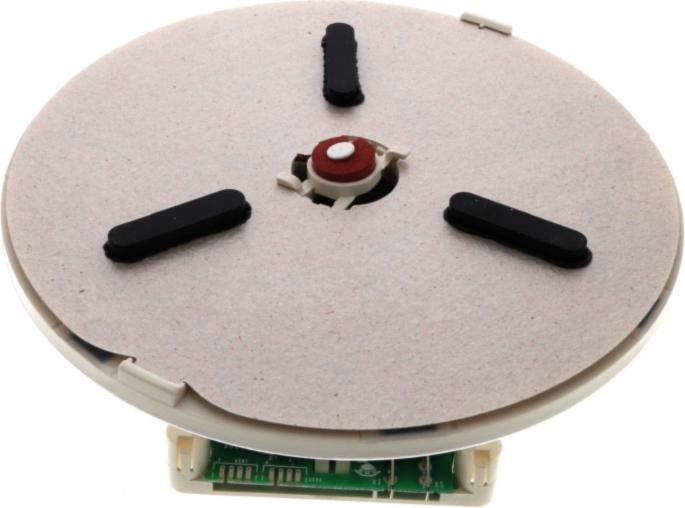

INDUCTEUR Plaque 3000W 220mm
INDUCTEUR Plaque 3000W 220mm
Position: 10
Indicative price: 169.07 €
RESSORT Plaque INDUCTEUR
RESSORT Plaque INDUCTEUR
Position: 11
Indicative price: 12.7 €

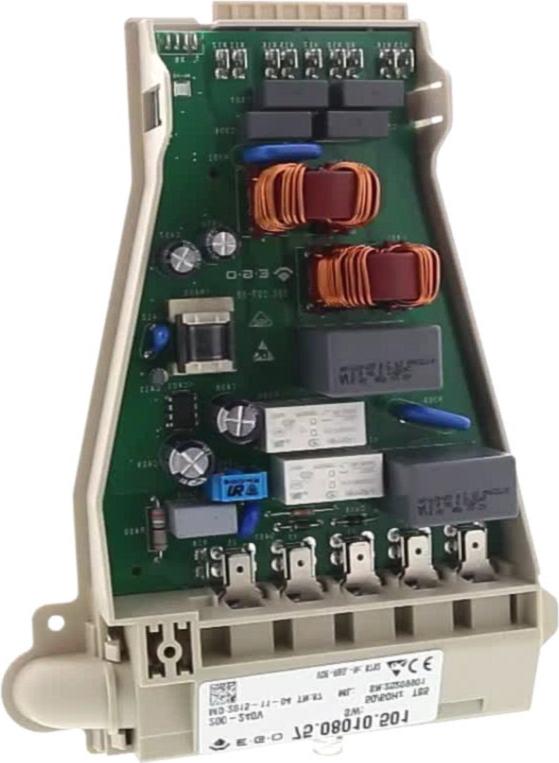

CIRCUIT Plaque FILTRE+CONNECTION 75.08010.501
CIRCUIT Plaque FILTRE+CONNECTION 75.08010.501
Position: 12
Indicative price: 115.09 €
CARTON Plaque EMBALLAGE
CARTON Plaque EMBALLAGE
Position: 13
Indicative price: 24.15 €
