Exploded view plaque de cuisson BAUMATIC PHI600

Discover the complete exploded view plaque de cuisson BAUMATIC PHI600, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson BAUMATIC PHI600 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

TAQUE Plaque VITRO
TAQUE Plaque VITRO
Position: 1
Indicative price: 225.49 €
INDUCTEUR Plaque G5 OCTOGONAL 100MM
INDUCTEUR Plaque G5 OCTOGONAL 100MM
Position: 2
Indicative price: 100.28 €
INDUCTEUR Plaque G5 OCTOGONAL 100MM
INDUCTEUR Plaque G5 OCTOGONAL 100MM
Position: 3
Indicative price: 112.68 €
RIVET Plaque PLATINE DE COMMANDE
RIVET Plaque PLATINE DE COMMANDE
Position: 6
Indicative price: 31.82 €
MOTEUR Plaque VENTILATEUR MBDC12H4-927 12v 0.38a 4.6w
MOTEUR Plaque VENTILATEUR MBDC12H4-927 12v 0.38a 4.6w
Position: 8
Indicative price: 84.08 €
PLATINE Plaque CIRCUIT FILTRE 75.96475.087 prnet
PLATINE Plaque CIRCUIT FILTRE 75.96475.087 prnet
Position: 9
Indicative price: 260.3 €

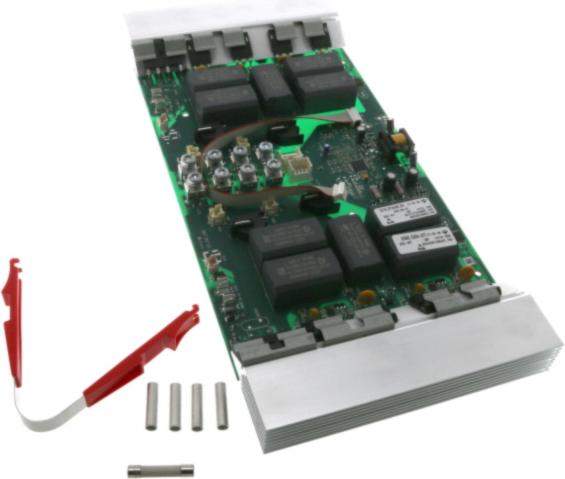

PLATINE Plaque PUISSANCE 75.96475.512
PLATINE Plaque PUISSANCE 75.96475.512
Position: 10
Indicative price: 268.52 €
PLATINE Plaque CIRCUIT FILTRE + SUPPORT 75.08012.049 prnet
PLATINE Plaque CIRCUIT FILTRE + SUPPORT 75.08012.049 prnet
Position: 11
Indicative price: 371.68 €
CACHE Plaque BORNIER HP ANCIEN ET G5
CACHE Plaque BORNIER HP ANCIEN ET G5
Position: 12
Indicative price: 9.31 €
CABLE Plaque Alimentation
CABLE Plaque Alimentation
Position: 13
Indicative price: 13.56 €
JOINT Plaque TAQUE
JOINT Plaque TAQUE
Position: 14
Indicative price: 6.17 €
