Exploded view plaque de cuisson BAUMATIC PHI550

Discover the complete exploded view plaque de cuisson BAUMATIC PHI550, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson BAUMATIC PHI550 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

EMBALLAGE Plaque CARTON
EMBALLAGE Plaque CARTON
Position: 10074
Indicative price: 28.29 €
JOINT Plaque TAQUE
JOINT Plaque TAQUE
Position: 10153
Indicative price: 7.48 €
CABLE Plaque Alimentation
CABLE Plaque Alimentation
Position: 10154
Indicative price: 14.71 €

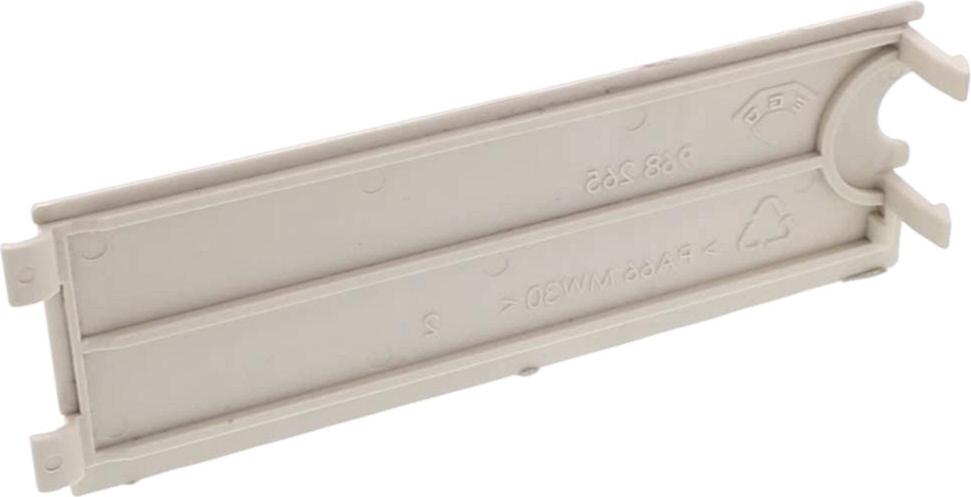

CACHE Plaque BORNIER HP ANCIEN ET G5
CACHE Plaque BORNIER HP ANCIEN ET G5
Position: 11001
Indicative price: 10.52 €

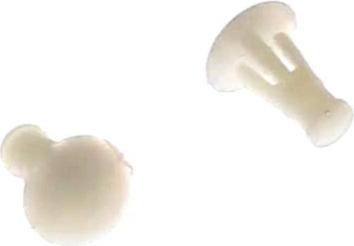

CLIPS Plaque PLATINE COMMANDE "lot de 2"
CLIPS Plaque PLATINE COMMANDE "lot de 2"
Position: 11500
Indicative price: 20.03 €

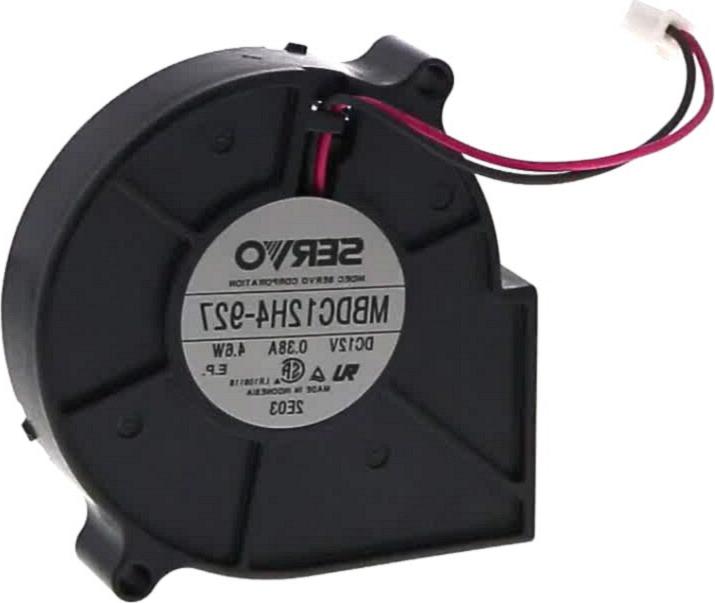

MOTEUR Plaque VENTILATEUR MBDC12H4-927 12v 0.38a 4.6w
MOTEUR Plaque VENTILATEUR MBDC12H4-927 12v 0.38a 4.6w
Position: 11537
Indicative price: 99.47 €
MEUBLE Plaque
MEUBLE Plaque
Position: 13392
Indicative price: 62.65 €

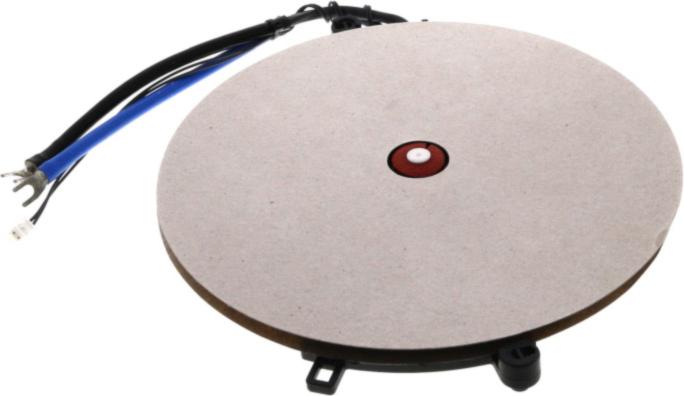

INDUCTEUR Plaque 180mm 75.95051.501
INDUCTEUR Plaque 180mm 75.95051.501
Position: 13440
Indicative price: 81.8 €

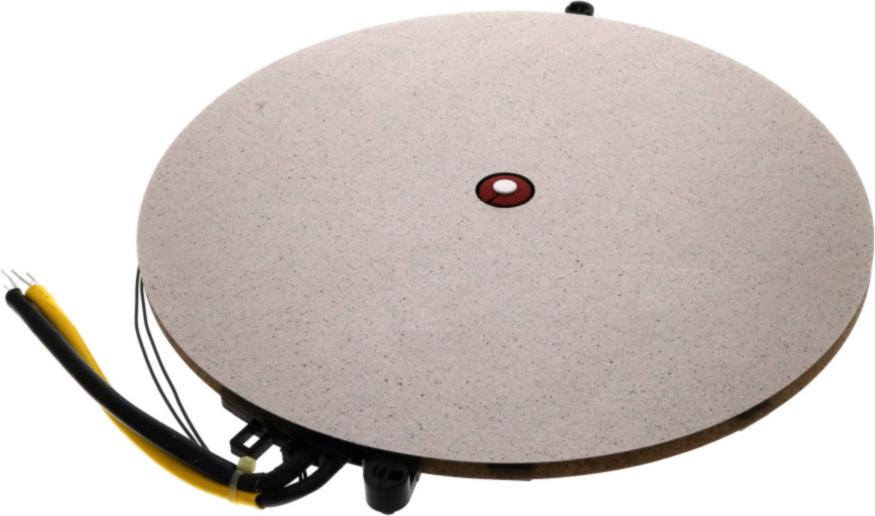

INDUCTEUR Plaque 260mm
INDUCTEUR Plaque 260mm
Position: 13442
Indicative price: 87.47 €

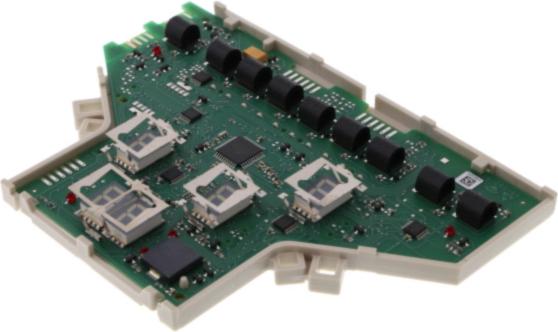

PLATINE Plaque COMMANDE 75.13196.310
PLATINE Plaque COMMANDE 75.13196.310
Position: 13839
Indicative price: 111.79 €
PLATINE Plaque E voir platines au détail
PLATINE Plaque E voir platines au détail
Position: 13840

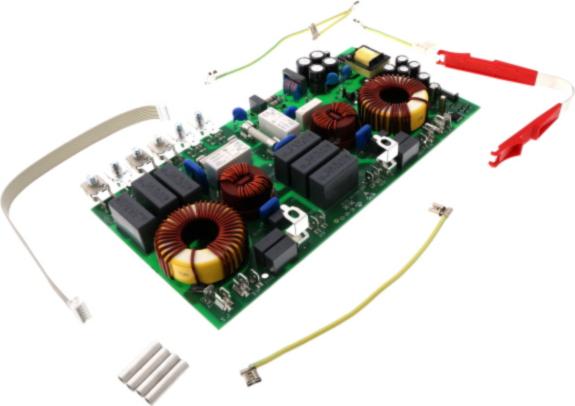

PLATINE Plaque CIRCUIT FILTRE 75.96475.087 prnet
PLATINE Plaque CIRCUIT FILTRE 75.96475.087 prnet
Position: 14034
Indicative price: 275.39 €

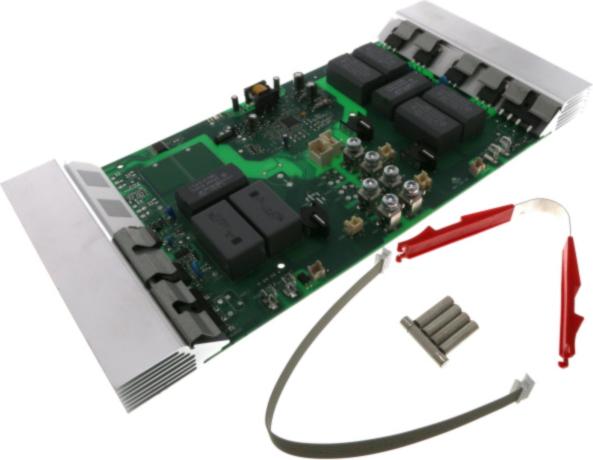

PLATINE Plaque CIRCUIT PUISSANCE 75.96475.154 prnet
PLATINE Plaque CIRCUIT PUISSANCE 75.96475.154 prnet
Position: 14224
Indicative price: 309.6 €
TAQUE Plaque VITRO
TAQUE Plaque VITRO
Position: 14367
Indicative price: 420.66 €
