Exploded view plaque de cuisson WINDSOR MH31GPBL

Discover the complete exploded view plaque de cuisson WINDSOR MH31GPBL, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson WINDSOR MH31GPBL and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

NOTICE Plaque
NOTICE Plaque
Indicative price: 9.23 €
TUYAU Plaque Alimentation BRULEUR AVG
TUYAU Plaque Alimentation BRULEUR AVG
Position: 58
Indicative price: 13.65 €

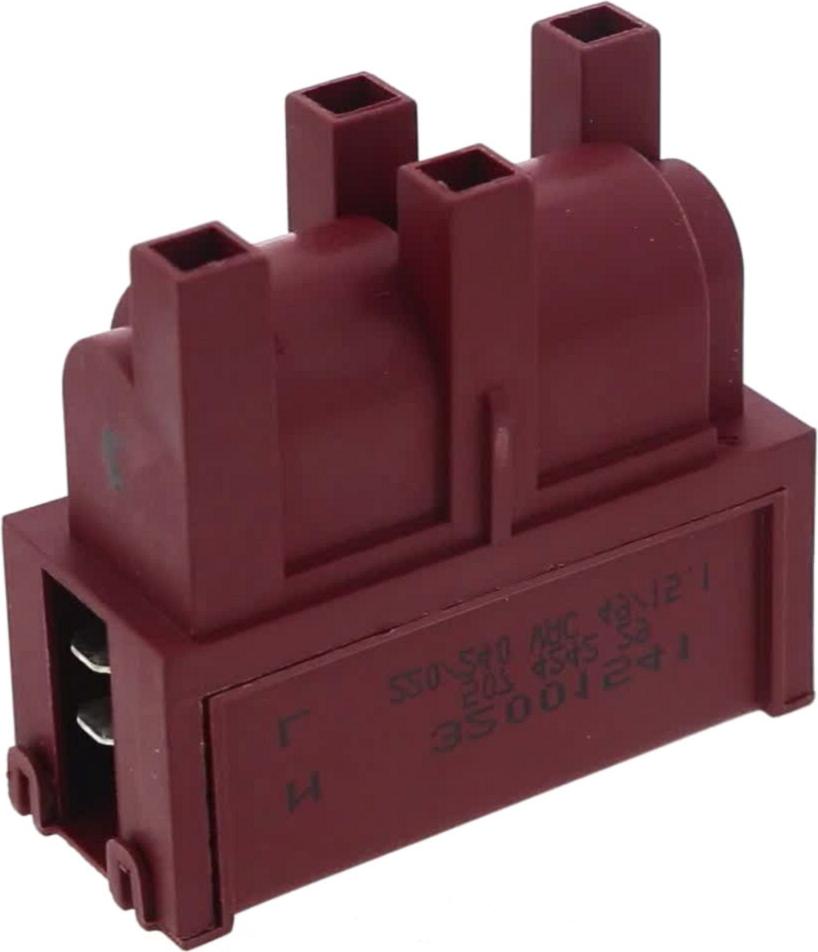

ALLUMEUR Plaque 4G 507424229
ALLUMEUR Plaque 4G 507424229
Position: 60
Indicative price: 34.49 €
TUYAU Plaque Alimentation BRULEUR AVD
TUYAU Plaque Alimentation BRULEUR AVD
Position: 61
Indicative price: 14.03 €
TUYAU Plaque Alimentation BRULEUR Semi-rapide ARD
TUYAU Plaque Alimentation BRULEUR Semi-rapide ARD
Position: 62
Indicative price: 11.84 €
RAMPE Plaque Alimentation 3 GAZ
RAMPE Plaque Alimentation 3 GAZ
Position: 63
Indicative price: 25.08 €
JOINT Cuisinière ARRIVEE GAZ
JOINT Cuisinière ARRIVEE GAZ
Position: 64
Indicative price: 2.34 €
EMBOUT Cuisinière Gaz Butane
EMBOUT Cuisinière Gaz Butane
Position: 65
Indicative price: 6.34 €

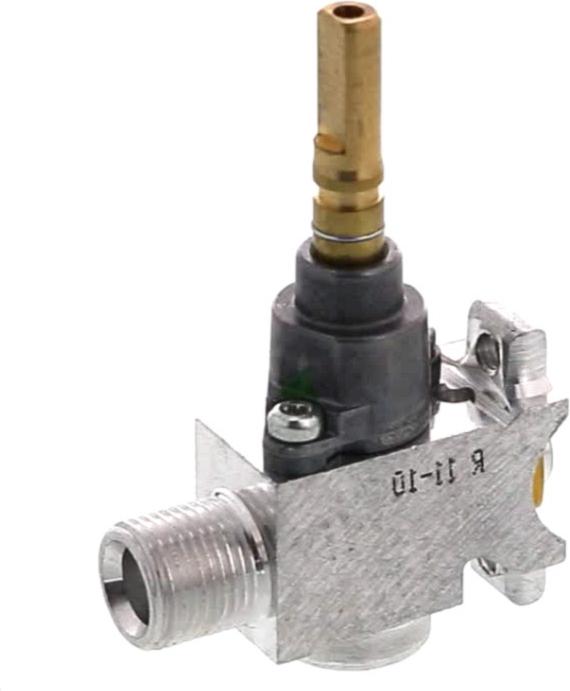

ROBINET Plaque Semi-rapide VERT SABAF
ROBINET Plaque Semi-rapide VERT SABAF
Position: 66
Indicative price: 19.66 €

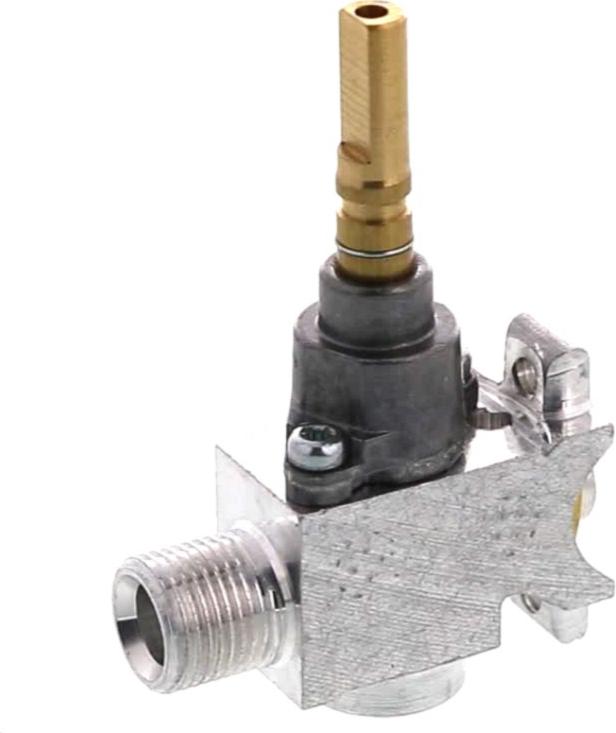

ROBINET Plaque Auxiliaire BLANC SABAF
ROBINET Plaque Auxiliaire BLANC SABAF
Position: 67
Indicative price: 23.21 €

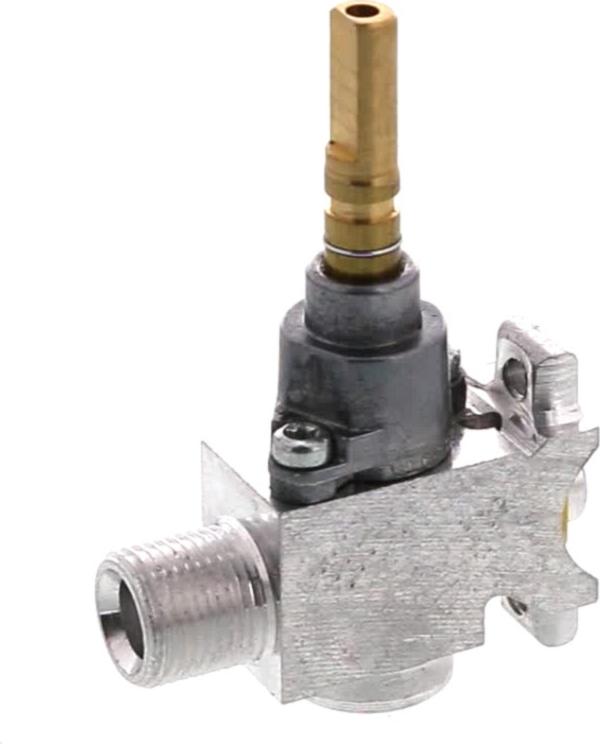

ROBINET Plaque Rapide NOIR SABAF
ROBINET Plaque Rapide NOIR SABAF
Position: 68
Indicative price: 24.33 €
CLIPS Cuisinière MANETTE
CLIPS Cuisinière MANETTE
Position: 75
Indicative price: 2.37 €
MANETTE Plaque Blanc GAMA-C
MANETTE Plaque Blanc GAMA-C
Position: 76
Indicative price: 6.49 €

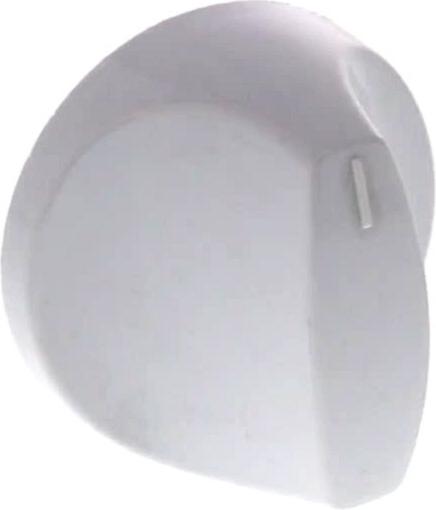

MANETTE Plaque Blanc GAMA-A 39*31 3h 6mm 29mm
MANETTE Plaque Blanc GAMA-A 39*31 3h 6mm 29mm
Position: 76
Indicative price: 7.83 €
CACHE Plaque VOYANT ROUGE
CACHE Plaque VOYANT ROUGE
Position: 77
Indicative price: 2.47 €
VOYANT Plaque AVEC CABLE
VOYANT Plaque AVEC CABLE
Position: 79
Indicative price: 9.67 €
SUPPORT Plaque ROBINET SABAF - ECA
SUPPORT Plaque ROBINET SABAF - ECA
Position: 83
Indicative price: 3.63 €
CHAPEAU Cuisinière BRULEUR Auxiliaire SABAF 55mm
CHAPEAU Cuisinière BRULEUR Auxiliaire SABAF 55mm
Position: 92
Indicative price: 7.54 €
CHAPEAU Cuisinière BRULEUR Rapide SABAF 100mm
CHAPEAU Cuisinière BRULEUR Rapide SABAF 100mm
Position: 92
Indicative price: 10.56 €

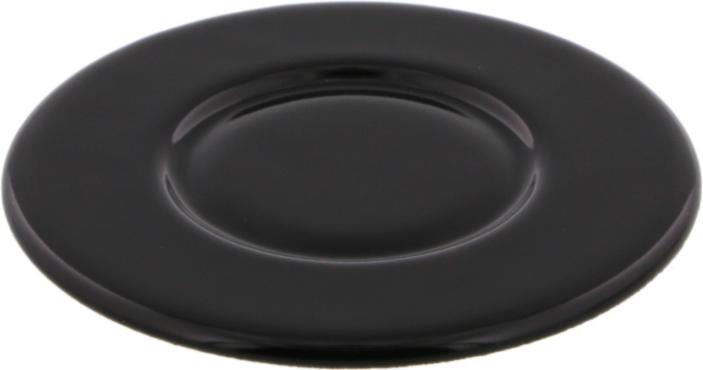

CHAPEAU Cuisinière BRULEUR Semi-rapide SABAF 75mm
CHAPEAU Cuisinière BRULEUR Semi-rapide SABAF 75mm
Position: 92
Indicative price: 7.47 €
TETE Cuisinière BRULEUR Rapide SABAF 90mm
TETE Cuisinière BRULEUR Rapide SABAF 90mm
Position: 93
Indicative price: 15.92 €

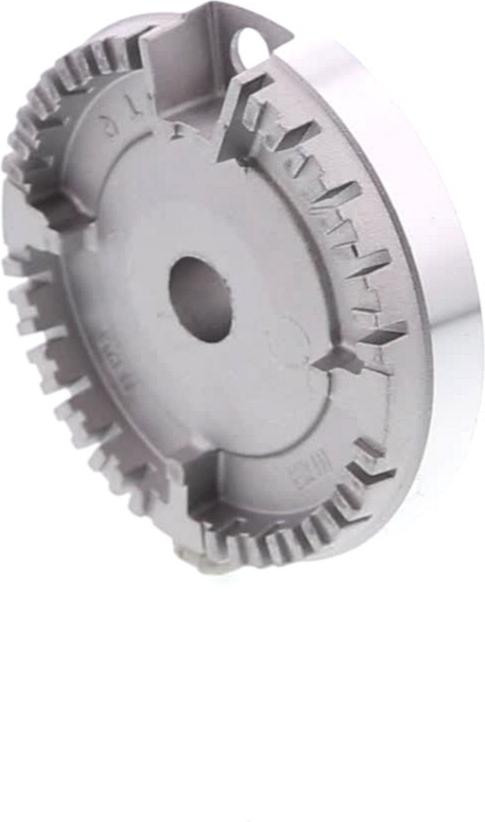

TETE Cuisinière BRULEUR Semi-rapide SABAF 65mm
TETE Cuisinière BRULEUR Semi-rapide SABAF 65mm
Position: 93
Indicative price: 13.6 €
TETE Cuisinière BRULEUR Auxiliaire SABAF 45mm
TETE Cuisinière BRULEUR Auxiliaire SABAF 45mm
Position: 93
Indicative price: 12.53 €
PATIN Cuisinière GRILLE
PATIN Cuisinière GRILLE
Position: 96
Indicative price: 3.18 €
JOINT Plaque BOUGIE ALLUMAGE
JOINT Plaque BOUGIE ALLUMAGE
Position: 98
Indicative price: 2.14 €

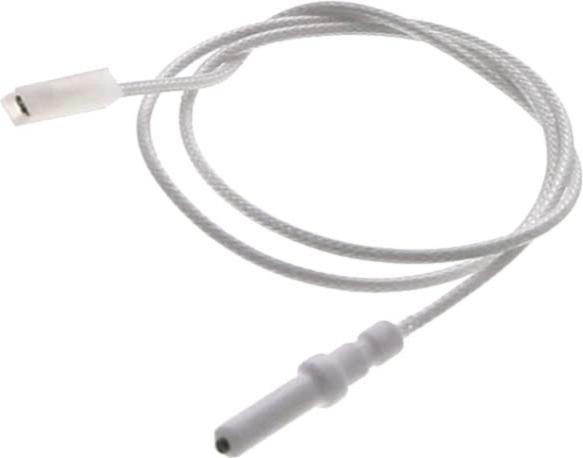

BOUGIE Plaque ALLUMAGE ROBINET SABAF
BOUGIE Plaque ALLUMAGE ROBINET SABAF
Position: 99
Indicative price: 12.97 €
CLIPS Plaque BOUGIE/THERMOCOUPLE
CLIPS Plaque BOUGIE/THERMOCOUPLE
Position: 100
Indicative price: 2.44 €
TAQUE Plaque 3+1 Blanc AVEC ALLUMAGE
TAQUE Plaque 3+1 Blanc AVEC ALLUMAGE
Position: 102
Indicative price: 61.46 €

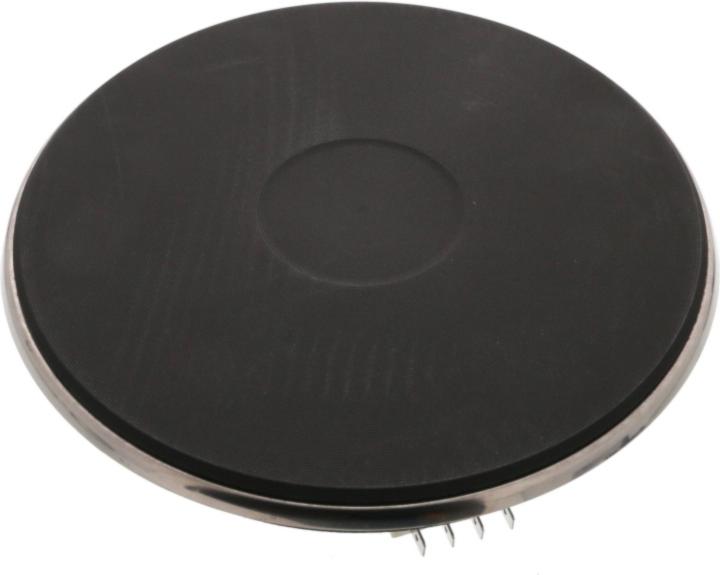

PLAQUE Plaque Electrique 180mm 1500w 4mm EGO 13.18413.002 19.18413.022
PLAQUE Plaque Electrique 180mm 1500w 4mm EGO 13.18413.002 19.18413.022
Position: 105
Indicative price: 25.64 €
ECROU Plaque M6
ECROU Plaque M6
Position: 106
Indicative price: 2.37 €
RONDELLE Plaque
RONDELLE Plaque
Position: 107
Indicative price: 2.35 €

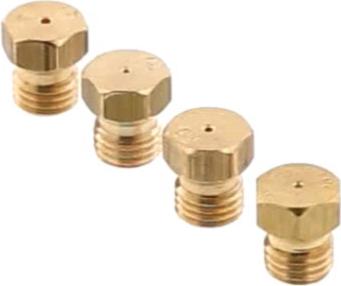

JEU Plaque Injecteur Gaz Butane 4G SABAF
JEU Plaque Injecteur Gaz Butane 4G SABAF
Position: 109
Indicative price: 25.19 €

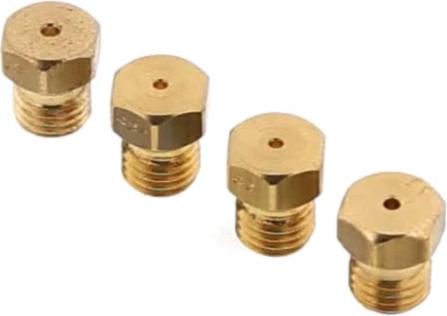

JEU Plaque Injecteur Gaz Naturel 4G SABAF
JEU Plaque Injecteur Gaz Naturel 4G SABAF
Position: 109
Indicative price: 25.13 €

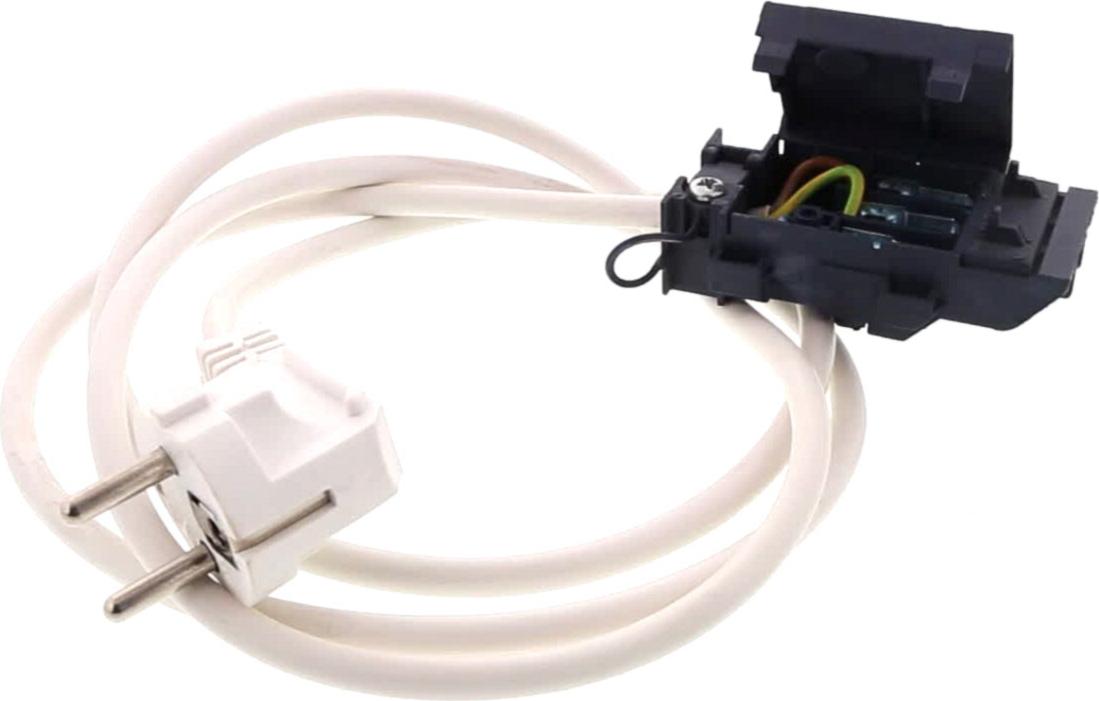

BORNIER Plaque Alimentation + CABLE
BORNIER Plaque Alimentation + CABLE
Position: 142
Indicative price: 27.04 €

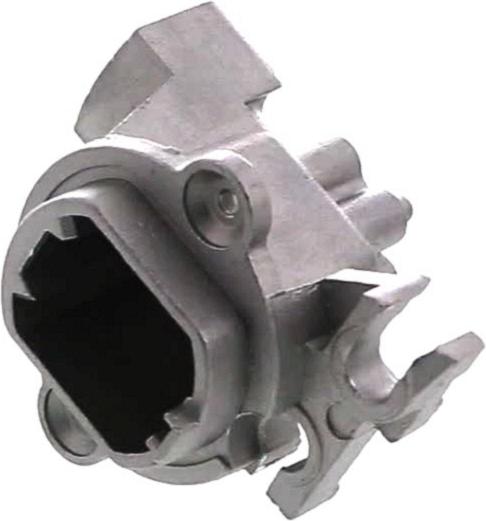

SUPPORT Cuisinière Injecteur Auxiliaire M3
SUPPORT Cuisinière Injecteur Auxiliaire M3
Position: 147
Indicative price: 12.71 €
SUPPORT Cuisinière Injecteur Rapide VIS M3
SUPPORT Cuisinière Injecteur Rapide VIS M3
Position: 147
Indicative price: 15.59 €

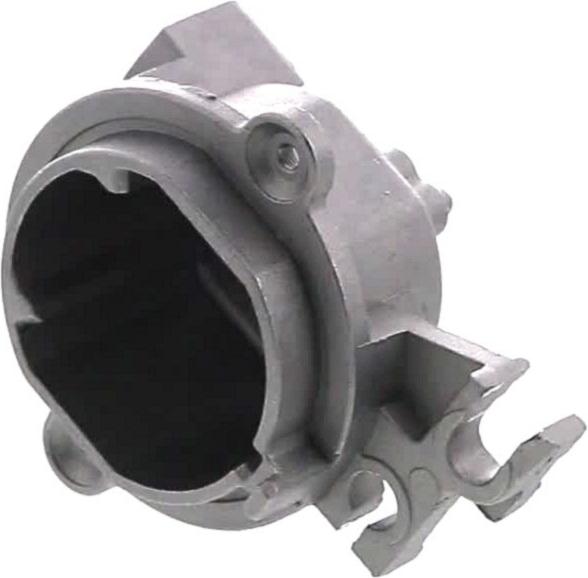

SUPPORT Cuisinière Injecteur Semi-rapide
SUPPORT Cuisinière Injecteur Semi-rapide
Position: 147
Indicative price: 14.92 €
BOUTON Plaque ALLUMAGE Blanc
BOUTON Plaque ALLUMAGE Blanc
Position: 160
Indicative price: 6.69 €

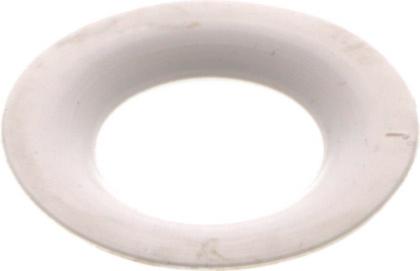

JOINT Plaque SOUS MANETTE
JOINT Plaque SOUS MANETTE
Position: 167
Indicative price: 5.27 €
TOLE Plaque Inférieur
TOLE Plaque Inférieur
Position: 168
Indicative price: 46.7 €
TOLE Plaque Inférieur PLAQUE 180mm
TOLE Plaque Inférieur PLAQUE 180mm
Position: 178
Indicative price: 25.42 €

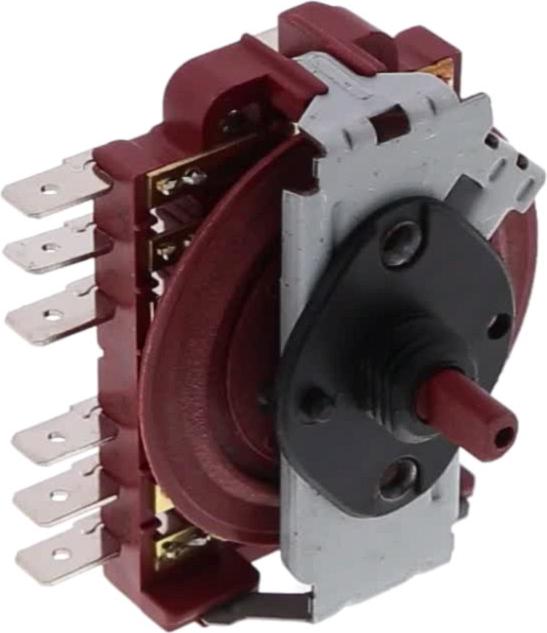

COMMUTATE Plaque Electrique UNITAIRE 4141723014 EGO BLANC remplacé par GOTTAK MARRON 770643
COMMUTATE Plaque Electrique UNITAIRE 4141723014 EGO BLANC remplacé par GOTTAK MARRON 770643
Position: 179
Indicative price: 21.57 €
ECROU Plaque Commutateur
ECROU Plaque Commutateur
Position: 180
Indicative price: 2.51 €
