Exploded view hotte BROAN HG71

Discover the complete exploded view hotte BROAN HG71, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your hotte. Quickly find the parts you need to extend the life of your hotte BROAN HG71 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

Interrupteur Hotte COMMANDE
Interrupteur Hotte COMMANDE
Indicative price: 81.2 €

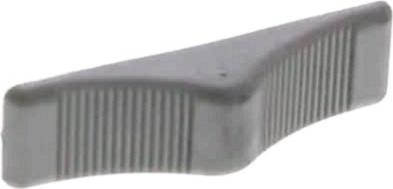

ARRET Hotte GRILLE
ARRET Hotte GRILLE
Position: 4
Indicative price: 12.76 €
RESSORT Hotte
RESSORT Hotte
Position: 6
Indicative price: 11.84 €

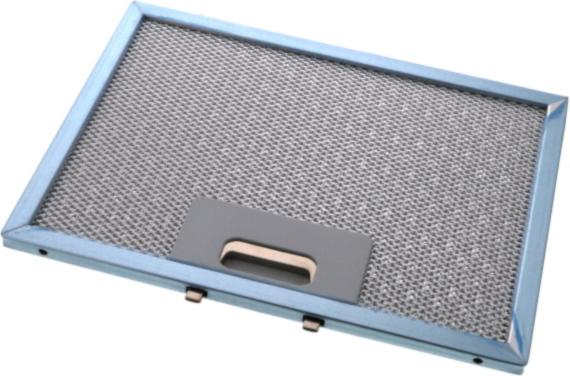

FILTRE Hotte METAL 233*169
FILTRE Hotte METAL 233*169
Position: 9
Indicative price: 43.22 €
LAMPE Hotte HALOGENE 12V 20W G4 "lot de 2"
LAMPE Hotte HALOGENE 12V 20W G4 "lot de 2"
Position: 26
Indicative price: 9.58 €
CONVOYEUR Hotte
CONVOYEUR Hotte
Position: 45
Indicative price: 43.08 €

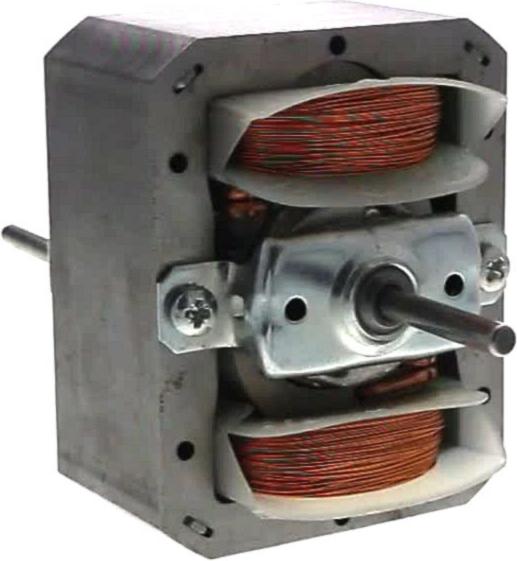

MOTEUR Hotte
MOTEUR Hotte
Position: 48
Indicative price: 64.37 €
TURBINE Hotte DOUBLE MOTEUR RECTANGULAIRE
TURBINE Hotte DOUBLE MOTEUR RECTANGULAIRE
Position: 49
Indicative price: 40.2 €
BUSE Hotte REDUCTION
BUSE Hotte REDUCTION
Position: 58
Indicative price: 30.1 €
CABLE Hotte ALIMENTATION
CABLE Hotte ALIMENTATION
Position: 60
Indicative price: 23.09 €
CLAPET Hotte ANTIRETOUR
CLAPET Hotte ANTIRETOUR
Position: 86
Indicative price: 7.77 €
PROTECTION Hotte
PROTECTION Hotte
Position: 112
Indicative price: 5.52 €
CLIPS Hotte FERMETURE INOX
CLIPS Hotte FERMETURE INOX
Position: 134
Indicative price: 10.82 €

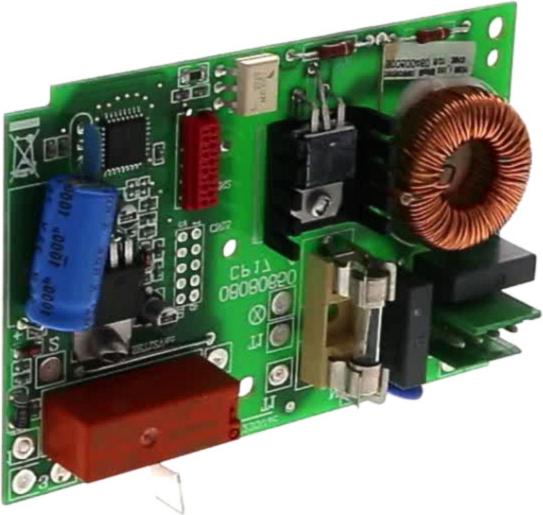

PLATINE Hotte PUISSANCE
PLATINE Hotte PUISSANCE
Position: 166
Indicative price: 125.81 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 195
TRANSFORMATEUR Hotte
TRANSFORMATEUR Hotte
Position: 208
Indicative price: 80.88 €

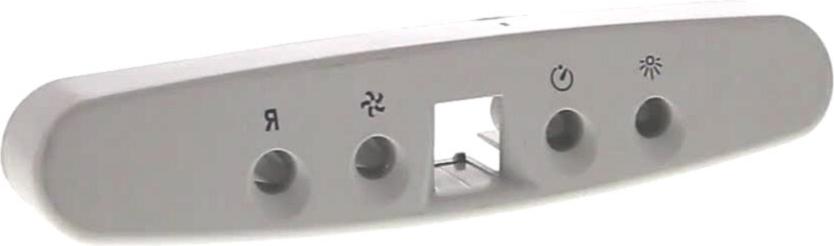

BANDEAU Hotte
BANDEAU Hotte
Position: 222
Indicative price: 26.73 €
BOUTON Hotte
BOUTON Hotte
Position: 223
Indicative price: 6.89 €

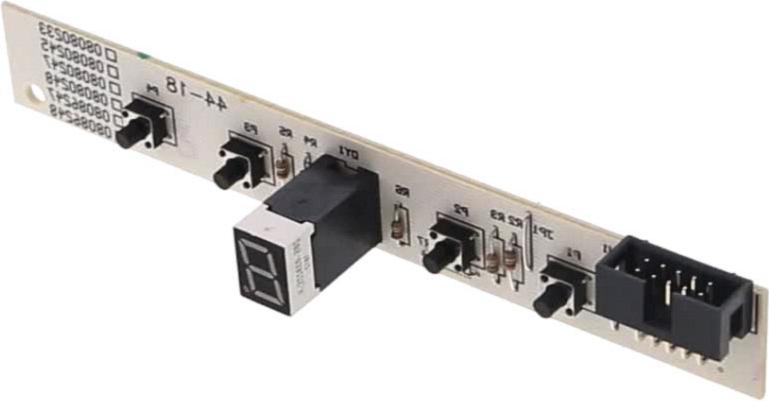

PLATINE Hotte COMMANDE 08080247
PLATINE Hotte COMMANDE 08080247
Position: 228
Indicative price: 107.29 €

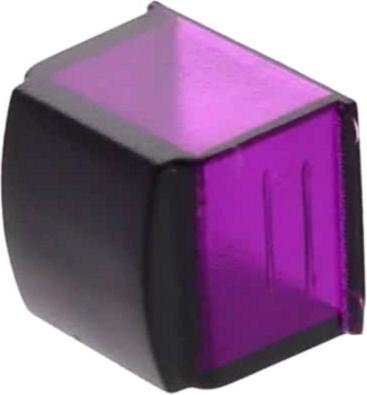

VOYANT Hotte TEMOIN
VOYANT Hotte TEMOIN
Position: 229
Indicative price: 9.52 €

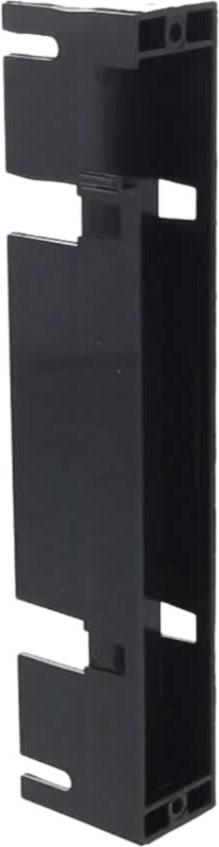

SUPPORT Hotte PLATINE
SUPPORT Hotte PLATINE
Position: 234
Indicative price: 47.53 €
COUVERCLE Hotte BOITIER BOUTON
COUVERCLE Hotte BOITIER BOUTON
Position: 472
Indicative price: 18.3 €

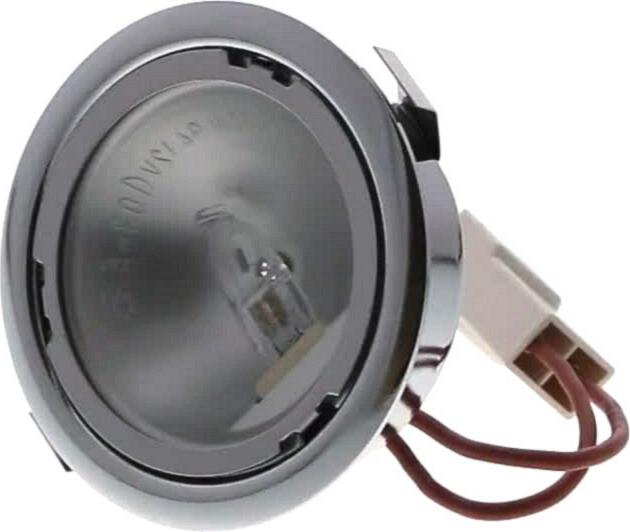

SPOT Hotte HALOGENE
SPOT Hotte HALOGENE
Position: 474
Indicative price: 37.37 €
LAMPE Hotte HALOGENE
LAMPE Hotte HALOGENE
Position: 474
Indicative price: 55.96 €
FUSIBLE Hotte 250 ma 5*20mm
FUSIBLE Hotte 250 ma 5*20mm
Position: 486
Indicative price: 9.11 €
