Exploded view plaque de cuisson FRIONOR GENOFRO

Discover the complete exploded view plaque de cuisson FRIONOR GENOFRO, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson FRIONOR GENOFRO and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

CABLAGE Plaque av 149786
CABLAGE Plaque av 149786
Indicative price: 35.06 €
NOTICE Plaque UTILISATION
NOTICE Plaque UTILISATION
Indicative price: 10.55 €

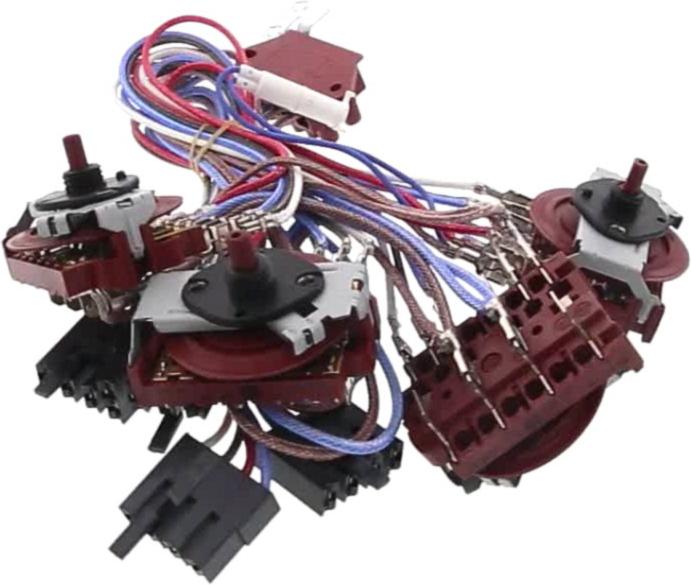

CABLAGE Plaque 4ELEC +COMMUTATEURS+BORNIER
CABLAGE Plaque 4ELEC +COMMUTATEURS+BORNIER
Indicative price: 78.86 €

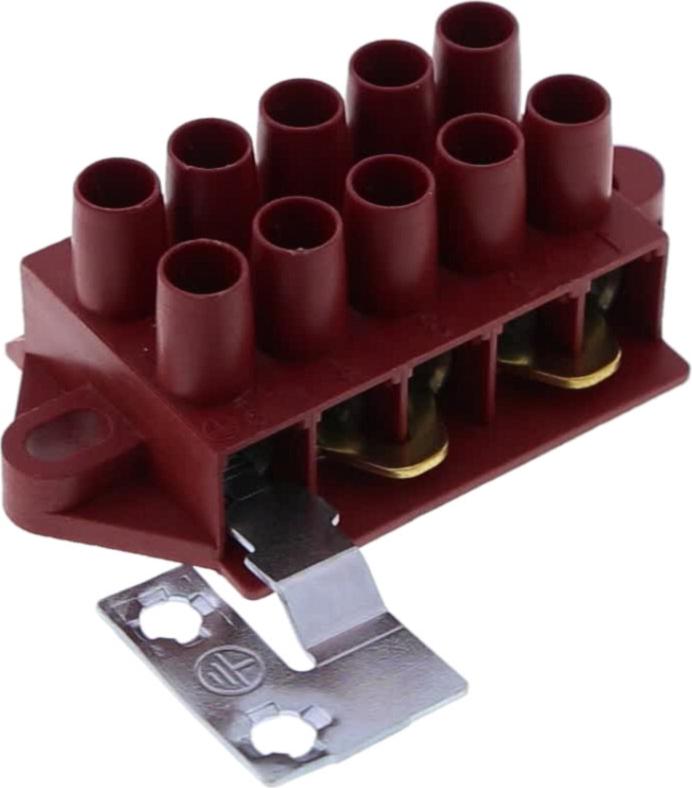

BORNIER Plaque
BORNIER Plaque
Position: 30
Indicative price: 18.81 €
CABLE Plaque ALIMENTATION 3G2.5 1.1m
CABLE Plaque ALIMENTATION 3G2.5 1.1m
Position: 31
Indicative price: 17.3 €
CACHE Plaque VOYANT ROUGE
CACHE Plaque VOYANT ROUGE
Position: 77
Indicative price: 2.28 €
VOYANT Plaque AVEC CABLE
VOYANT Plaque AVEC CABLE
Position: 79
Indicative price: 10.15 €

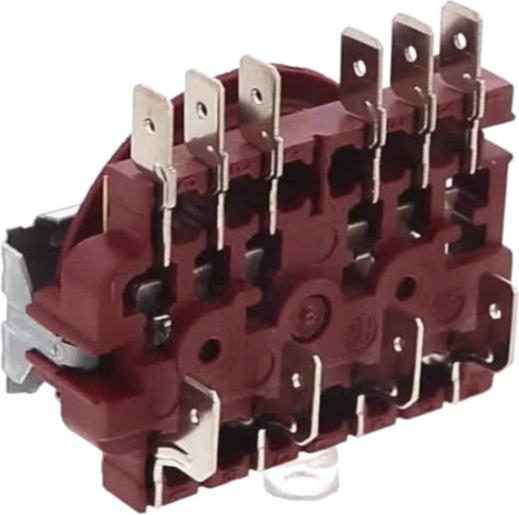

COMMUTATEUR Plaque GOTTAK MARRON 770643
COMMUTATEUR Plaque GOTTAK MARRON 770643
Position: 81
Indicative price: 21.06 €

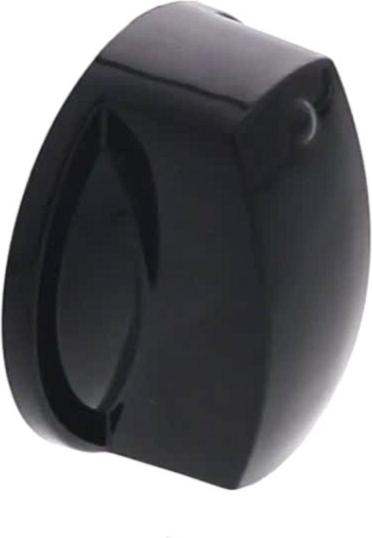

MANETTE Plaque NOIRE ECLIPSE-C 40*20 3h 6mm 11mm
MANETTE Plaque NOIRE ECLIPSE-C 40*20 3h 6mm 11mm
Position: 90
Indicative price: 8.66 €
ECROU Plaque M6
ECROU Plaque M6
Position: 91
Indicative price: 2.41 €
TAQUE Plaque 4E
TAQUE Plaque 4E
Position: 102
Indicative price: 49.47 €

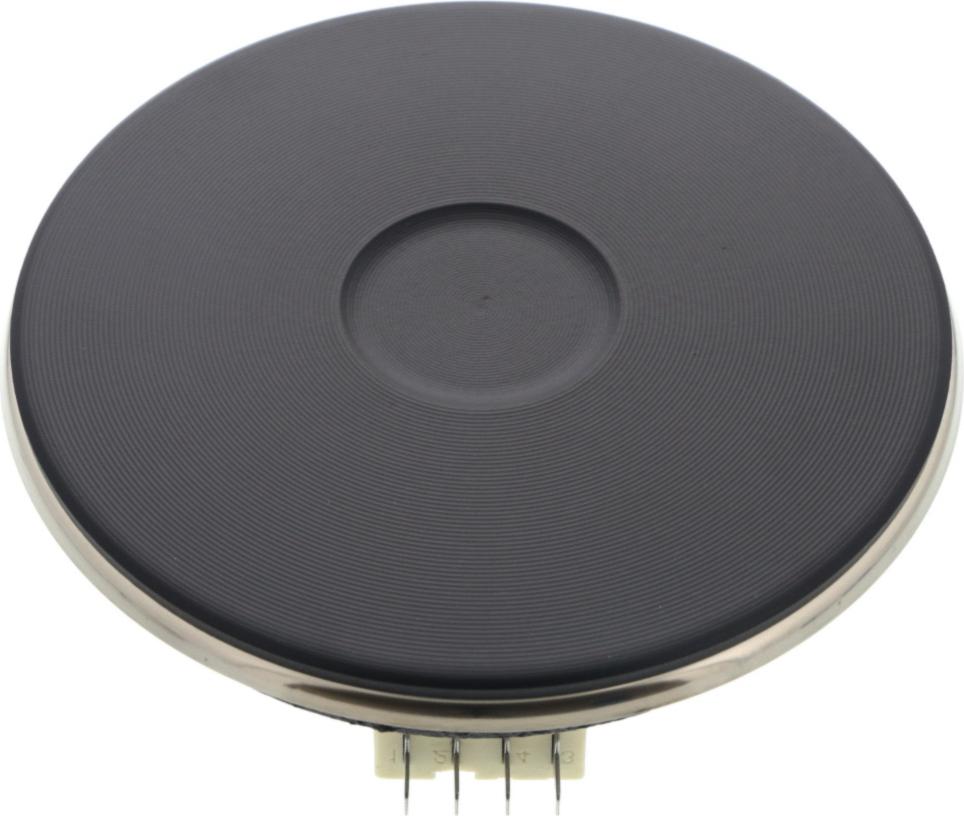

PLAQUE Plaque Electrique 145mm 1000w 4mm GP.145.1D.4.NC
PLAQUE Plaque Electrique 145mm 1000w 4mm GP.145.1D.4.NC
Position: 105
Indicative price: 27.57 €
PLAQUE Plaque Electrique 180mm 1500w 4mm GP.180.15.4.NC
PLAQUE Plaque Electrique 180mm 1500w 4mm GP.180.15.4.NC
Position: 105
Indicative price: 34.26 €
PLAQUE Plaque 180mm 1500w 4mm AVEC LIMITEUR GP.180.15.4.NPC
PLAQUE Plaque 180mm 1500w 4mm AVEC LIMITEUR GP.180.15.4.NPC
Position: 105
Indicative price: 56.13 €
RONDELLE Plaque
RONDELLE Plaque
Position: 107
Indicative price: 2.29 €
VIS Cuisinière
VIS Cuisinière
Position: 165
Indicative price: 2.61 €
TOLE Plaque INFERIEURE ap 189653
TOLE Plaque INFERIEURE ap 189653
Position: 168
Indicative price: 57.47 €
PROTECTION Plaque
PROTECTION Plaque
Position: 172
Indicative price: 18.14 €
VIS Plaque
VIS Plaque
Position: 173
Indicative price: 2.46 €
TOLE Plaque Inférieur PLAQUE 180mm
TOLE Plaque Inférieur PLAQUE 180mm
Position: 178
Indicative price: 23.13 €
TOLE Plaque Inférieur PLAQUE 145mm
TOLE Plaque Inférieur PLAQUE 145mm
Position: 178
Indicative price: 21.77 €
KIT Plaque ENCASTREMENT
KIT Plaque ENCASTREMENT
Position: 183
Indicative price: 10.37 €

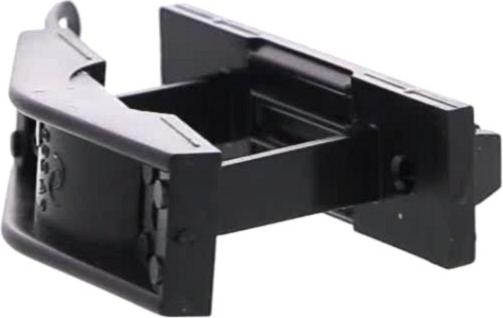

SUPPORT Plaque CABLE Alimentation
SUPPORT Plaque CABLE Alimentation
Position: 234
Indicative price: 4.74 €
