Exploded view plaque de cuisson FRIONOR TVM64

Discover the complete exploded view plaque de cuisson FRIONOR TVM64, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson FRIONOR TVM64 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

KIT Plaque ENCASTREMENT (4 supports + 4 vis )
KIT Plaque ENCASTREMENT (4 supports + 4 vis )
Indicative price: 10.57 €
JOINT Plaque ENCASTREMENT
JOINT Plaque ENCASTREMENT
Indicative price: 6.21 €
CABLAGE Plaque
CABLAGE Plaque
Indicative price: 40.09 €
NOTICE Plaque UTILISATION
NOTICE Plaque UTILISATION
Indicative price: 10.48 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position: 4
Indicative price: 2.17 €

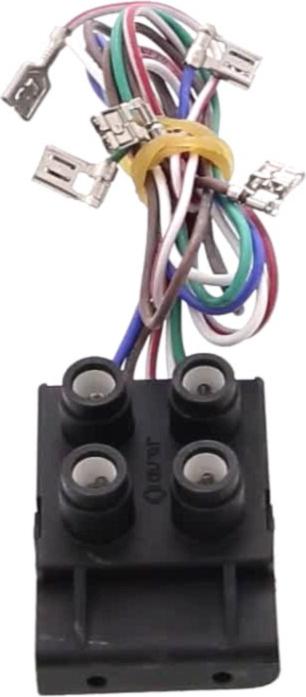

VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
Position: 8
Indicative price: 34.61 €

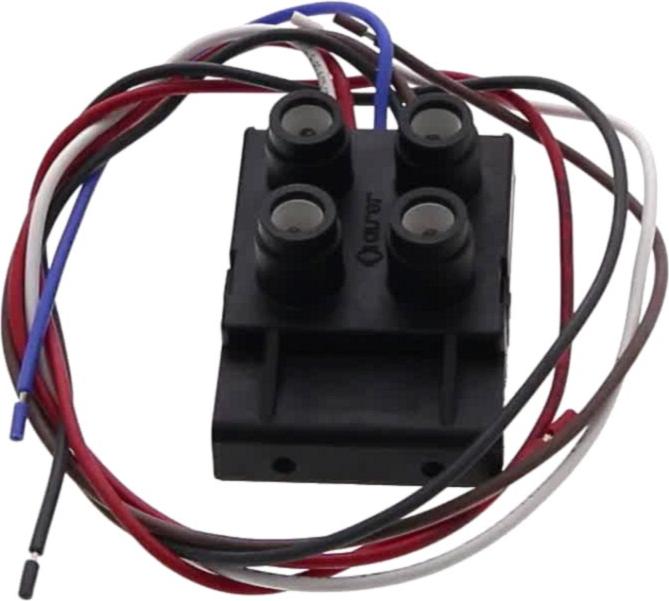

VOYANT Cuisinière CHALEUR RESIDUELLE
VOYANT Cuisinière CHALEUR RESIDUELLE
Position: 8
Indicative price: 31.87 €
VOYANT Cuisinière CHALEUR RESIDUELLE
VOYANT Cuisinière CHALEUR RESIDUELLE
Position: 8
Indicative price: 19.11 €
VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
Position: 8
Indicative price: 24.08 €
SUPPORT Plaque VOYANT CHALEUR RESID
SUPPORT Plaque VOYANT CHALEUR RESID
Position: 22
Indicative price: 5.52 €
BORNIER Plaque Alimentation ELECTRIQUE
BORNIER Plaque Alimentation ELECTRIQUE
Position: 30
Indicative price: 13.91 €
CABLE Plaque ALIMENTATION 3G2.5 1.1m
CABLE Plaque ALIMENTATION 3G2.5 1.1m
Position: 31
Indicative price: 14.09 €
VIS Cuisinière 4X6
VIS Cuisinière 4X6
Position: 80
Indicative price: 2.82 €

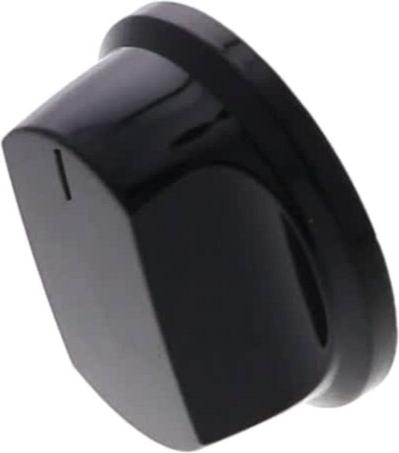

MANETTE Plaque NOIRE NEW ALFA 42*20 3h 6mm 14mm
MANETTE Plaque NOIRE NEW ALFA 42*20 3h 6mm 14mm
Position: 90
Indicative price: 8.84 €
RESSORT Plaque 22mm PLAQUE RADIANT-HL
RESSORT Plaque 22mm PLAQUE RADIANT-HL
Position: 150
Indicative price: 6.78 €
RESSORT Plaque V FIXE PLAQUE RAD-HL
RESSORT Plaque V FIXE PLAQUE RAD-HL
Position: 151
Indicative price: 6.35 €

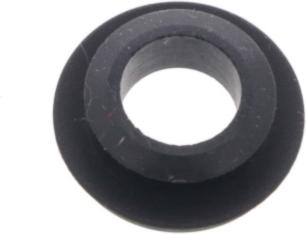

JOINT Plaque MANETTE
JOINT Plaque MANETTE
Position: 167
Indicative price: 5.07 €
TOLE Plaque Inférieur
TOLE Plaque Inférieur
Position: 182
Indicative price: 31.75 €

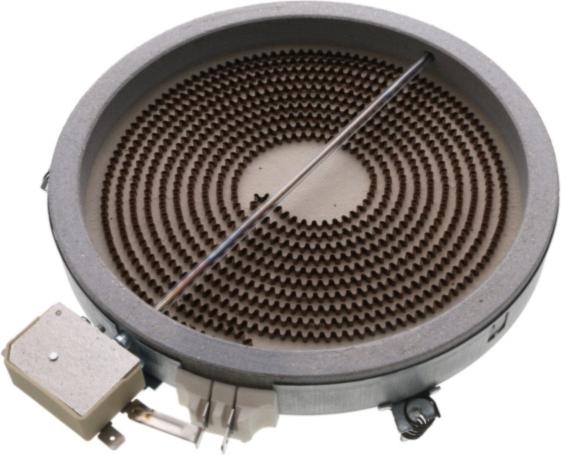

RESISTANCE Plaque 180MM 1800W 230W Hilight
RESISTANCE Plaque 180MM 1800W 230W Hilight
Position: 184
Indicative price: 58.12 €
RESISTANCE Plaque 145MM 1200W 230W Hilight
RESISTANCE Plaque 145MM 1200W 230W Hilight
Position: 184
Indicative price: 43.67 €

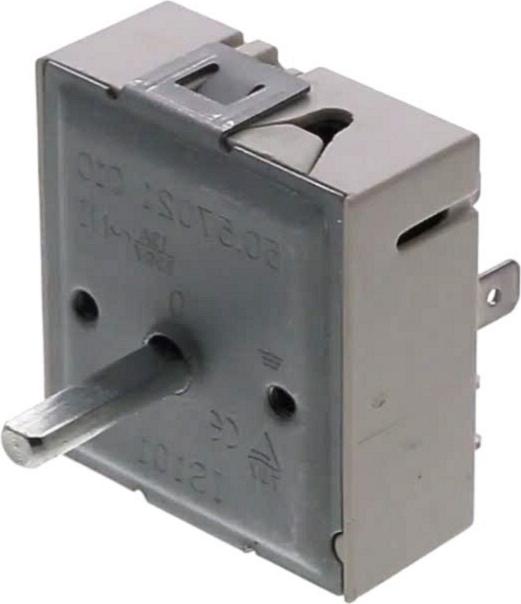

COMMUTATEUR Cuisinière NRJ
COMMUTATEUR Cuisinière NRJ
Position: 188
Indicative price: 29.77 €
SUPPORT Plaque PLAQUE remplace par KIT
SUPPORT Plaque PLAQUE remplace par KIT
Position: 222
Indicative price: 12.48 €
TAQUE Plaque VITRO 4HL NOIRE
TAQUE Plaque VITRO 4HL NOIRE
Position: 249
Indicative price: 144.57 €
CACHE Plaque Commutateur NRJ
CACHE Plaque Commutateur NRJ
Position: 275
Indicative price: 11.54 €
SUPPORT Plaque Commutateur NRJ
SUPPORT Plaque Commutateur NRJ
Position: 277
Indicative price: 11.01 €
SUPPORT Cuisinière BORNIER Alimentation
SUPPORT Cuisinière BORNIER Alimentation
Position: 278
Indicative price: 9.28 €
