Exploded view plaque de cuisson ATLANTIC ATP4V

Discover the complete exploded view plaque de cuisson ATLANTIC ATP4V, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your plaque de cuisson. Quickly find the parts you need to extend the life of your plaque de cuisson ATLANTIC ATP4V and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

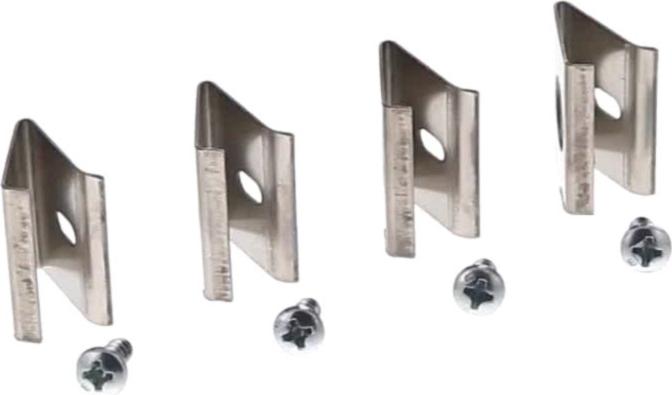

KIT Plaque ENCASTREMENT (4 supports + 4 vis )
KIT Plaque ENCASTREMENT (4 supports + 4 vis )
Indicative price: 10.91 €
CABLAGE Plaque
CABLAGE Plaque
Indicative price: 43.96 €
CABLAGE Plaque
CABLAGE Plaque
Indicative price: 40.45 €
NOTICE Plaque UTILISATION
NOTICE Plaque UTILISATION
Indicative price: 9.26 €
VIS Cuisinière SUPPORT RESISTANCE Supérieur
VIS Cuisinière SUPPORT RESISTANCE Supérieur
Position: 4
Indicative price: 2.53 €

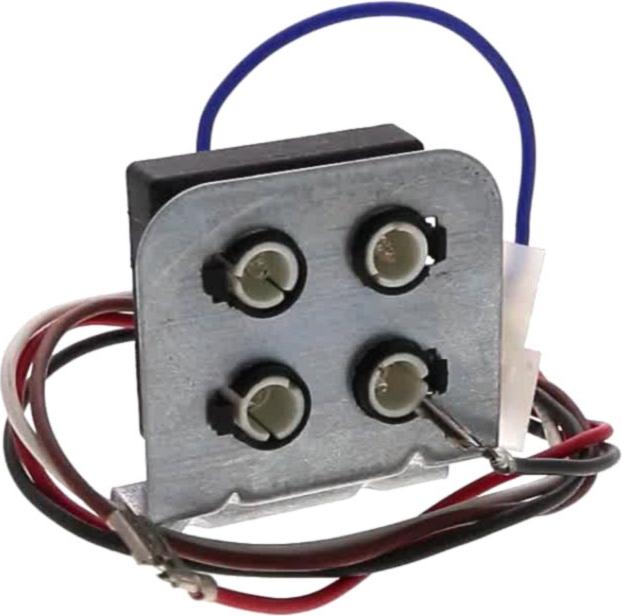

VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
VOYANT Plaque CHALEUR RESIDUELLE + SUPPORT
Position: 8
Indicative price: 35.41 €

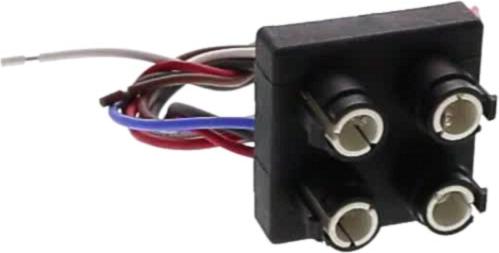

VOYANT Cuisinière CHALEUR RESIDUELLE
VOYANT Cuisinière CHALEUR RESIDUELLE
Position: 8
Indicative price: 36.37 €
SUPPORT Plaque VOYANT CHALEUR RESID
SUPPORT Plaque VOYANT CHALEUR RESID
Position: 23
Indicative price: 5.4 €

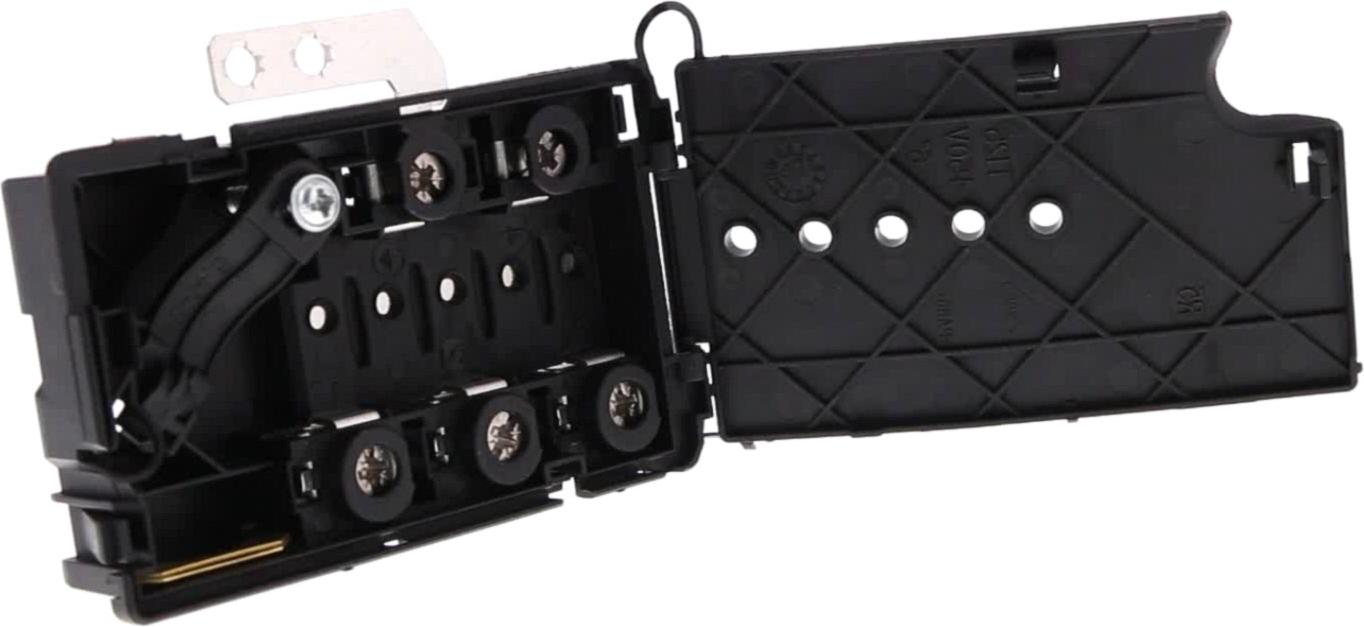

BORNIER Plaque Alimentation
BORNIER Plaque Alimentation
Position: 30
Indicative price: 19.92 €
CABLE Plaque ALIMENTATION 3G2.5 1.1m
CABLE Plaque ALIMENTATION 3G2.5 1.1m
Position: 31
Indicative price: 14.84 €
VIS Plaque
VIS Plaque
Position: 40
Indicative price: 2.49 €
VIS Cuisinière 4X6
VIS Cuisinière 4X6
Position: 80
Indicative price: 2.56 €

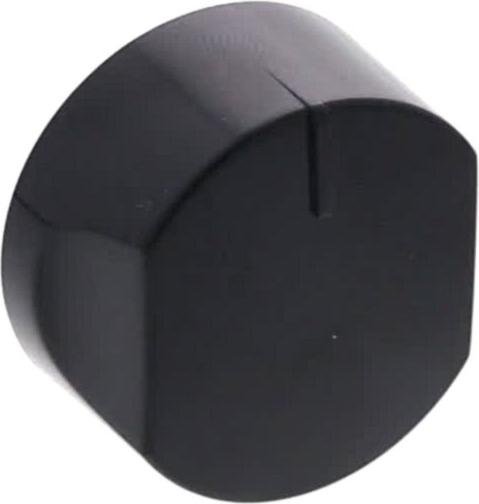

MANETTE Plaque NOIRE BIG RIMO 40*21 3h 6mm 14mm
MANETTE Plaque NOIRE BIG RIMO 40*21 3h 6mm 14mm
Position: 90
Indicative price: 8.62 €

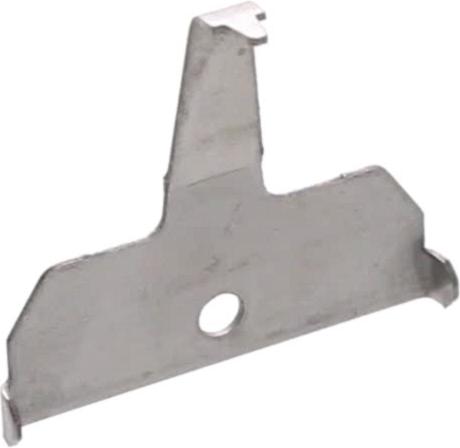

RESSORT Plaque 22mm PLAQUE RADIANT-HL
RESSORT Plaque 22mm PLAQUE RADIANT-HL
Position: 150
Indicative price: 6.03 €
RESSORT Plaque V FIXE PLAQUE RAD-HL
RESSORT Plaque V FIXE PLAQUE RAD-HL
Position: 151
Indicative price: 7.74 €
JOINT Plaque MANETTE/TAQUE
JOINT Plaque MANETTE/TAQUE
Position: 167
Indicative price: 6.45 €

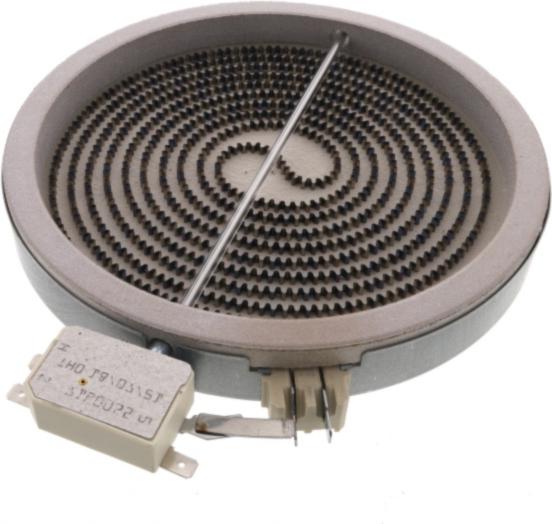

RESISTANCE Cuisinière Hilight 180mm 1800W EIKA 2002032812
RESISTANCE Cuisinière Hilight 180mm 1800W EIKA 2002032812
Position: 184
Indicative price: 87.92 €

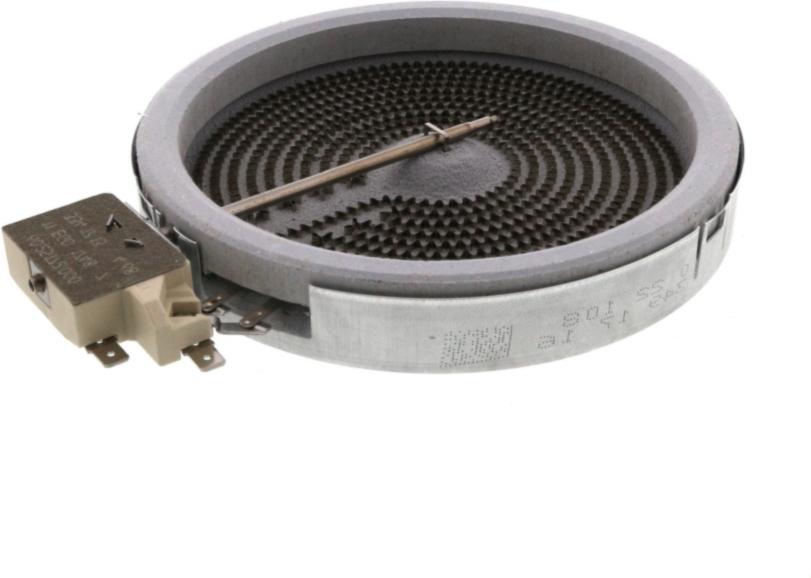

RESISTANCE Cuisinière Hilight 145/1200W 1652032812 EIKA
RESISTANCE Cuisinière Hilight 145/1200W 1652032812 EIKA
Position: 184
Indicative price: 63.14 €

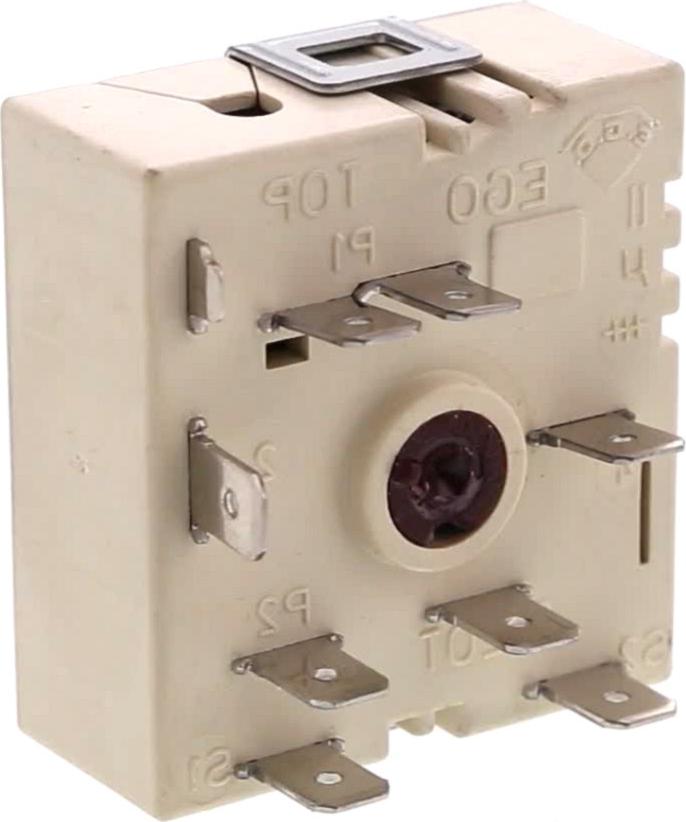

COMMUTATEUR Cuisinière NRJ 50.57021.010 5057021010
COMMUTATEUR Cuisinière NRJ 50.57021.010 5057021010
Position: 188
Indicative price: 33.44 €
SUPPORT Plaque PLAQUE remplace par KIT
SUPPORT Plaque PLAQUE remplace par KIT
Position: 222
Indicative price: 12.12 €
TAQUE Plaque VITRO NOIRE 4HL 590*520 ATLANTIC *DESTOCKAGE*
TAQUE Plaque VITRO NOIRE 4HL 590*520 ATLANTIC *DESTOCKAGE*
Position: 249
Indicative price: 156.19 €
TOLE Plaque Inférieur
TOLE Plaque Inférieur
Position: 273
Indicative price: 27.21 €
CACHE Plaque Commutateur NRJ
CACHE Plaque Commutateur NRJ
Position: 275
Indicative price: 11.06 €
SUPPORT Plaque Commutateur NRJ
SUPPORT Plaque Commutateur NRJ
Position: 277
Indicative price: 10.95 €
