Exploded view réfrigérateur FAGOR FAFN8281X

Discover the complete exploded view réfrigérateur FAGOR FAFN8281X, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur FAGOR FAFN8281X and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

Interrupteur Froid ECLAIRAGE
Interrupteur Froid ECLAIRAGE
Position: 5
Indicative price: 18.96 €
CHARNIERE Froid SUPERIEURE
CHARNIERE Froid SUPERIEURE
Position: 6
Indicative price: 22 €
JOINT Froid PORTE REFRIGERATEUR GRIS 1032*566
JOINT Froid PORTE REFRIGERATEUR GRIS 1032*566
Position: 7
Indicative price: 40.08 €
DOUILLE Froid PORTE Réfrigérateur Droit
DOUILLE Froid PORTE Réfrigérateur Droit
Position: 10
Indicative price: 3.84 €
BUTEE Froid PORTE GAUCHE
BUTEE Froid PORTE GAUCHE
Position: 12
Indicative price: 9.41 €
ARRET Froid DROIT PORTE Congélateur
ARRET Froid DROIT PORTE Congélateur
Position: 15
Indicative price: 7.64 €
ARRET Froid GAUCHE PORTE Congélateur
ARRET Froid GAUCHE PORTE Congélateur
Position: 16
Indicative price: 14.55 €
JOINT Froid PORTE CONGELATEUR GRIS 725*566
JOINT Froid PORTE CONGELATEUR GRIS 725*566
Position: 17
Indicative price: 35.81 €
DESSUS Froid BAC LEGUMES 478*380
DESSUS Froid BAC LEGUMES 478*380
Position: 23
Indicative price: 61.82 €

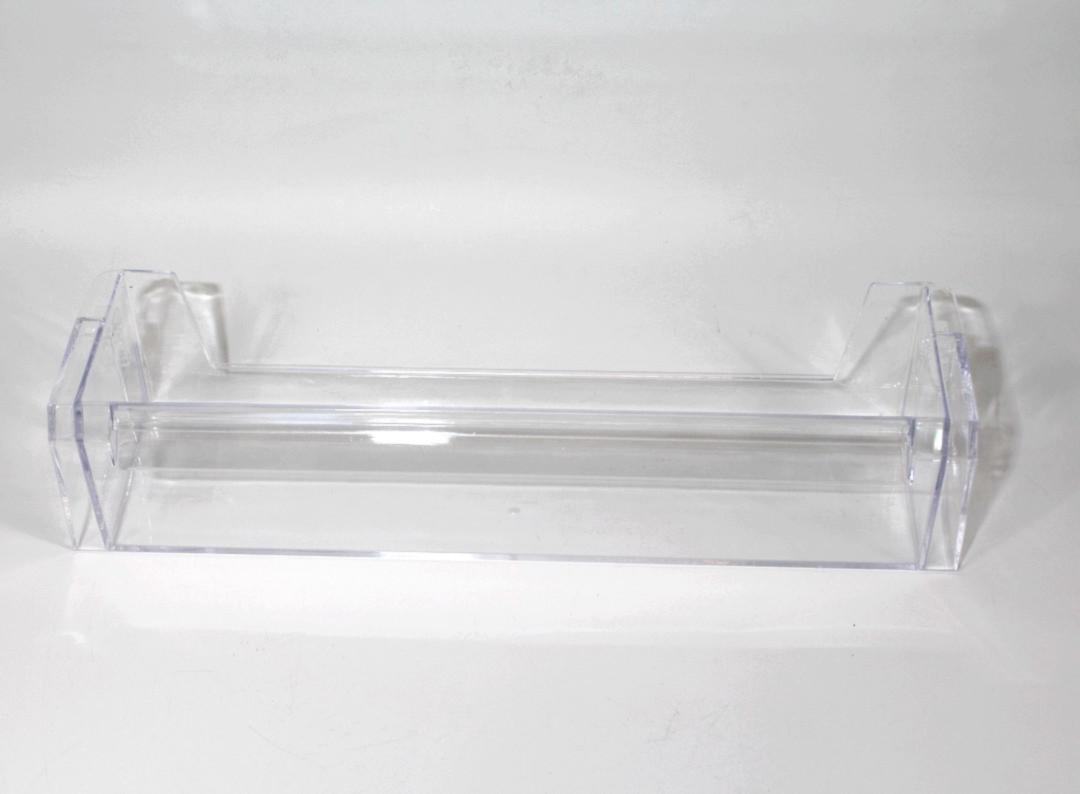

BALCONNET Froid BOUTEILLES TRANSPARENT BLEU 467*93*123
BALCONNET Froid BOUTEILLES TRANSPARENT BLEU 467*93*123
Position: 24
Indicative price: 30.5 €
CLAYETTE Froid 480*295
CLAYETTE Froid 480*295
Position: 25
Indicative price: 46.12 €
BALCONNET Froid Supérieur ou CENTRAL TRANSPARENT GRIS 465*58*125
BALCONNET Froid Supérieur ou CENTRAL TRANSPARENT GRIS 465*58*125
Position: 27
Indicative price: 36.55 €
CHARNIERE Froid CENTRALE
CHARNIERE Froid CENTRALE
Position: 32
Indicative price: 28.32 €
RESISTANCE Froid DEGIVRAGE
RESISTANCE Froid DEGIVRAGE
Position: 33
Indicative price: 26.92 €
EVAPORATEUR Froid RH-AM350
EVAPORATEUR Froid RH-AM350
Position: 34
Indicative price: 62.07 €
SONDE Froid DEGIVRAGE
SONDE Froid DEGIVRAGE
Position: 36
Indicative price: 28.08 €
CHARNIERE Froid INFERIEURE
CHARNIERE Froid INFERIEURE
Position: 37
Indicative price: 30.32 €
PIED Froid COURT
PIED Froid COURT
Position: 39
Indicative price: 10.16 €
CABLE Froid ALIMENTATION
CABLE Froid ALIMENTATION
Position: 40
Indicative price: 35.39 €
COMPRESSEUR HKV5.0 3 80 JM1110Y ETY80L
COMPRESSEUR HKV5.0 3 80 JM1110Y ETY80L
Position: 43
Indicative price: 151.46 €
DESHYDRATEUR Froid 15G
DESHYDRATEUR Froid 15G
Position: 46
Indicative price: 7.66 €
BAC Froid DEGIVRAGE A COTE COMPRESSEUR FC2-450.00.08-01
BAC Froid DEGIVRAGE A COTE COMPRESSEUR FC2-450.00.08-01
Position: 48
Indicative price: 9.22 €
PLATINE Froid PUISSANCE H08010CU01 P08010CU02 420016739
PLATINE Froid PUISSANCE H08010CU01 P08010CU02 420016739
Position: 50
Indicative price: 44.41 €
CACHE Froid PLATINE
CACHE Froid PLATINE
Position: 52
Indicative price: 13.65 €
PLATINE Froid THERMOSTAT+SONDE+LED W27-103
PLATINE Froid THERMOSTAT+SONDE+LED W27-103
Position: 60
Indicative price: 30.07 €
MANETTE Froid PARTIE VENTILATION FROID
MANETTE Froid PARTIE VENTILATION FROID
Position: 60
Indicative price: 8.02 €
MOTEUR Froid VENTILATEUR
MOTEUR Froid VENTILATEUR
Position: 70
Indicative price: 118.81 €
