Exploded view lave linge FAGOR LD943
Discover the complete exploded view lave linge FAGOR LD943, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge FAGOR LD943 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
SUPPORT Lave-Linge FIXATION TOP
Position: 2
Indicative price: 57.07 €
SUPPORT Lave-Linge FIXATION TOP
Position: 6
Indicative price: 29.38 €
PIED Lave-Linge
Position: 9
Indicative price: 44.89 €
DOUILLE Lave-Linge SUPPORT RESSORT CUVE
Position: 10
Indicative price: 28.33 €
RESSORT Lave-Linge TAMBOUR 200MM 27 STRIES
Position: 11
Indicative price: 47.18 €
PLINTHE Lave-Linge
Position: 21
PATIN Lave-Linge FRICTION
Position: 30
Indicative price: 55.68 €
RESSORT Lave-Linge AMORTISSEUR
Position: 31
Indicative price: 63.07 €
SUPPORT Lave-Linge AMORTISSEUR
Position: 32
Indicative price: 45.55 €
SYPHON Lave-Linge TIROIR A PRODUIT
Position: 54
BAC Lave-Linge LESSIVE LIQUIDE
Position: 57
Indicative price: 75.02 €
SYPHON Lave-Linge BOITE LESSIVE
Position: 58
Indicative price: 141868825.29 €
TIROIR Lave-Linge BAC LESSIVE
Position: 59
BOITE Lave-Linge Lessive INF+COUV
Position: 61
AXE Lave-Linge TRANSMISSION
Position: 62
Indicative price: 37.22 €
CAME Lave-Linge Programmateur COMPLETE E
Position: 66
VOYANT Lave-Linge ROND
Position: 76
Indicative price: 53.75 €
DISQUE Lave-Linge MANETTE COMMUTATEUR
Position: 82
Indicative price: 50.01 €
MANETTE Lave-Linge Programmateur
Position: 83
MANETTE Lave-Linge THERMOSTAT
Position: 83
Indicative price: 145649622.66 €

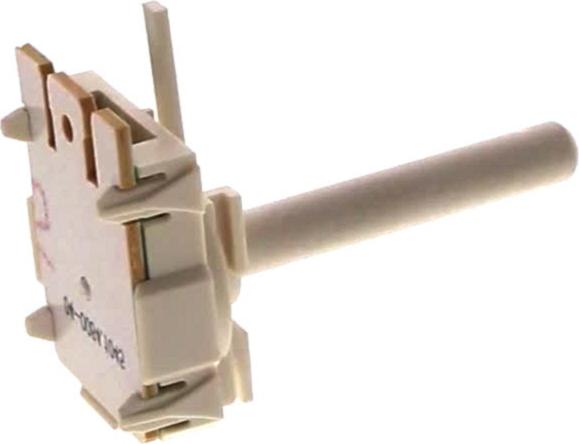

VARIATEUR Lave-Linge TEMPERATURE
Position: 85
Indicative price: 36.58 €

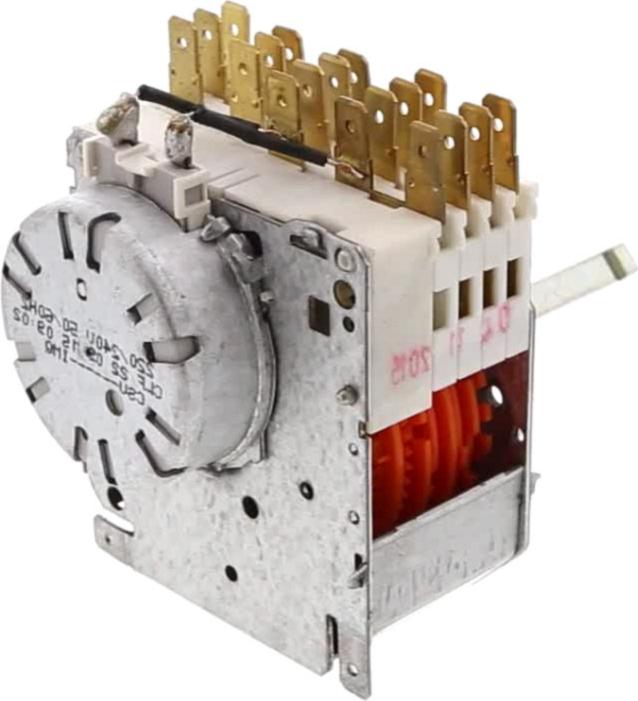

Programmateur Lave-Linge TD01 0053 0806/0/0.00
Position: 86
Indicative price: 159.46 €
JOINT Lave-Linge THERMOSTAT SECURITE
Position: 87
Indicative price: 29.81 €
Contre porte Lave-Linge HUBLOT BO75A00
Position: 93
Indicative price: 49.34 €
SUPPORT Lave-Linge FIXATION CHARNIERE
Position: 94
CHARNIERE Lave-Linge HUBLOT
Position: 95
Indicative price: 19.32 €
HUBLOT Lave-Linge VERRE D324MM H92MM 1 ERGOT
Position: 96
Indicative price: 59.1 €
ENJOLIVEUR Lave-Linge HUBLOT
Position: 99
Indicative price: 36.32 €
POIGNEE Lave-Linge HUBLOT
Position: 100
Indicative price: 17.51 €
SUPPORT Lave-Linge SECURITE PORTE
Position: 101
Indicative price: 5.95 €
SECURITE Lave-Linge PORTE ZV445M2 ZV-445 M2
Position: 102
Indicative price: 28.02 €
VIS Lave-Linge Contre-poids Inférieur
Position: 109
Indicative price: 6.96 €
VIS Lave-Linge Contre-poids Supérieur
Position: 109
Indicative price: 3.83 €
Contre-poids Lave-Linge Supérieur
Position: 110
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 110
SUPPORT Lave-Linge Contre-poids
Position: 111
Indicative price: 61.55 €
Batteur Lave-Linge TAMBOUR 190mm
Position: 114
Indicative price: 14.29 €
CLIP Lave-Linge TAMBOUR
Position: 115
Indicative price: 5.84 €
FLASQUE Lave-Linge CUVE
Position: 116
Indicative price: 60.19 €
JOINT Lave-Linge HUBLOT
Position: 117
Indicative price: 43.89 €
COLLIER Lave-Linge MEUBLE-JOINT HUBLOT
Position: 118
Indicative price: 55.07 €
COLLIER Lave-Linge JOINT HUBLOT
Position: 118
Indicative price: 50.42 €
COLLIER Lave-Linge JOINT HUBLOT-CUVE
Position: 118
Indicative price: 43.81 €
VIS Lave-Linge POULIE
Position: 120
Indicative price: 6.15 €

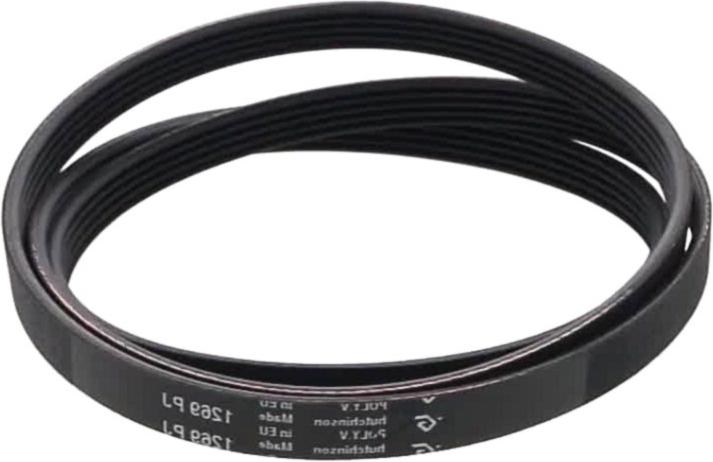

COURROIE Lave-Linge 1269J5
Position: 121
Indicative price: 21.23 €
POULIE Lave-Linge TAMBOUR
Position: 122
Indicative price: 124.05 €
CUVE Lave-Linge PALIER+JOINT
Position: 123
Indicative price: 109.58 €
PLAQUE Lave-Linge AMORTISSEUR
Position: 124
Indicative price: 9.27 €
JOINT Lave-Linge FLASQUE
Position: 129
Indicative price: 57.25 €
TUYAU Lave-Linge ARRIVE Droit EAU
Position: 134
Indicative price: 15.56 €
Electrovanne Lave-Linge 1 VOIE 180°
Position: 136
Indicative price: 19.04 €
DURITE Lave-Vaisselle Répartiteur remplisseur BOL
Position: 138
Indicative price: 59.87 €
DURITE Lave-Linge EVACUATION
Position: 139
Indicative price: 40.9 €
COLLIER Lave-Linge
Position: 140
Indicative price: 28.26 €
DURITE Lave-Linge BAC PRODUIT/CUVE
Position: 142
Indicative price: 32.63 €
DURITE Lave-Linge CUVE/PV
Position: 144
Indicative price: 42.2 €
TUYAU Lave-Vaisselle VIDANGE
Position: 146
Indicative price: 31.62 €
TUYAU Lave-Vaisselle PRESSOSTAT
Position: 149
Indicative price: 17.81 €
CHAMBRE Lave-Linge COMPRESSION E
Position: 150
COLLIER Lave-Linge TUYAU 32-50
Position: 151
Indicative price: 12.36 €

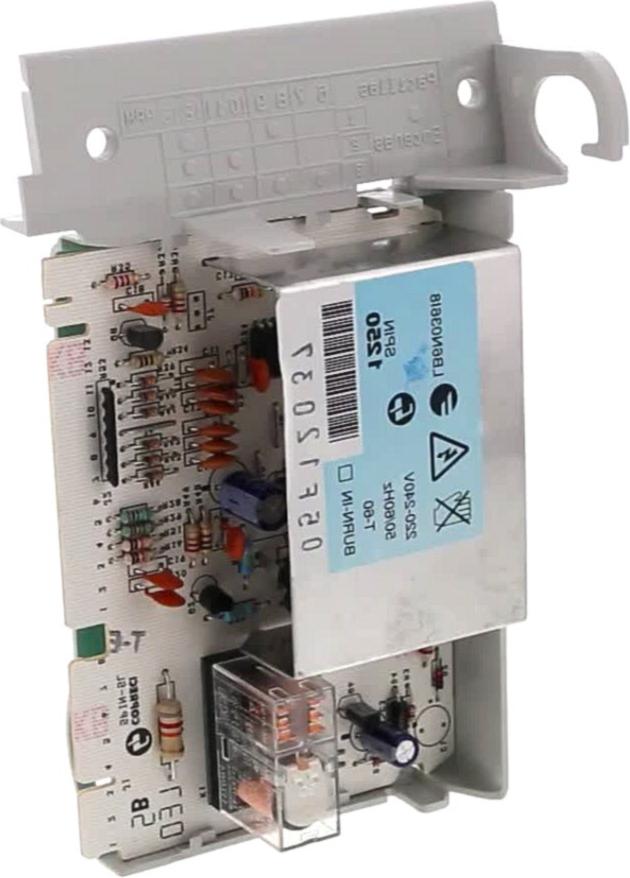

MODULE Lave-Linge
Position: 157
Indicative price: 135.21 €
MOTEUR Lave-Linge
Position: 158
Indicative price: 413.04 €
CABLE Lave-Linge Alimentation
Position: 159
Indicative price: 59.05 €
BORNIER Lave-Linge
Position: 160
Indicative price: 57.16 €
CONDENSATEUR Lave-Linge ANTIPARASITE
Position: 161
Indicative price: 62.42 €
PRESSOSTAT Lave-Linge 2N
Position: 162
Indicative price: 56.26 €
Résistance Lave-Linge 1850W
Position: 163
Indicative price: 67.74 €
Thermostat Lave-Linge NC96TR-791
Position: 164
Thermostat Lave-Linge 96°C-50°C
Position: 164
DURITE Lave-Linge Pompe de vidange ARRIERE
Position: 166
Indicative price: 19.02 €
Pompe de vidange Lave-Linge EBS2556 30W COPRECI
Position: 168
Indicative price: 68.03 €
Interrupteur Lave-Linge COMMANDE
Position: 203
Indicative price: 86.64 €
VIS Lave-Linge CHARNIERE
Position: 295
Indicative price: 5.62 €
