Exploded view lave linge FAURE FWY51223WR 91310562300
Discover the complete exploded view lave linge FAURE FWY51223WR 91310562300, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge FAURE FWY51223WR 91310562300 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PIED Lave-Linge AVANT
Position: 130
Indicative price: 24.4 €
ECROU Lave-Linge PIED
Position: 130
Indicative price: 18.16 €
PANNEAU Lave-Linge AVANT
Position: 150
Indicative price: 133.18 €
PANNEAU Lave-Linge LATERAL DROIT
Position: 152
Indicative price: 77.19 €
PLINTHE Lave-Linge
Position: 170
Indicative price: 47.99 €
COUVERCLE Lave-Linge TOP + CROCHET
Position: 215
Indicative price: 145.51 €
JOINT Lave-Linge COUVERCLE
Position: 215
Indicative price: 51.12 €
POIGNEE Lave-Linge
Position: 216
Indicative price: 44.08 €
VIS Lave-Linge POIGNEE
Position: 216
Indicative price: 9.66 €
CONDUIT Lave-Linge VENTILATION
Position: 217
Indicative price: 12.35 €
JOINT Lave-Linge TORIQUE
Position: 217
Indicative price: 10.42 €
CADRE Lave-Linge SOUS TOP
Position: 218
Indicative price: 115.8 €
AXE Lave-Linge CHARNIERE COUVERCLE
Position: 219
Indicative price: 8.44 €
BAC Lave-Linge LESSIVE
Position: 220
Indicative price: 44.52 €
VIS Sèche-Linge POULIE AVANT
Position: 504
Indicative price: 4.78 €

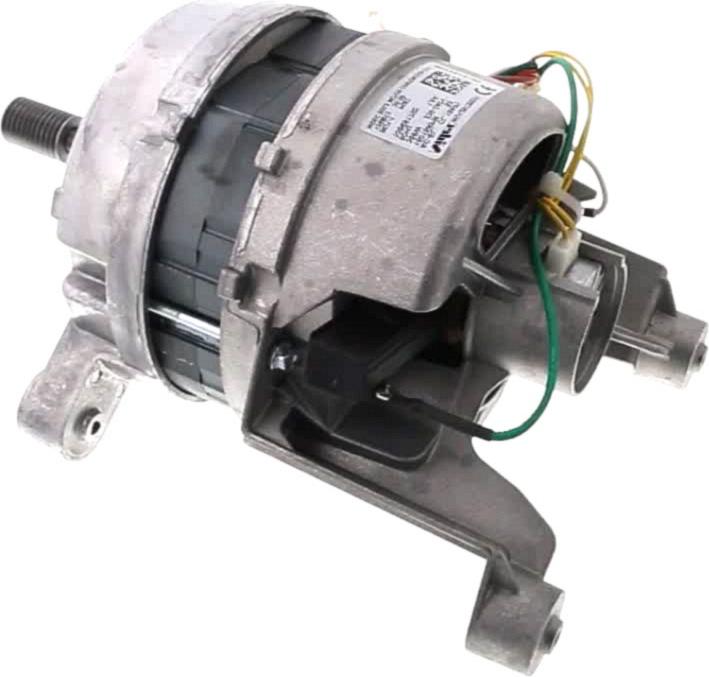

MOTEUR Lave-Linge 240V NIDEC WU126T35E01
Position: 504
Indicative price: 162.32 €
POMPE Lave-Linge VIDANGE BPX2-75
Position: 506
Indicative price: 76.55 €
Electrovanne Lave-Linge 2V BROCHES
Position: 507
Indicative price: 55.46 €
Résistance Lave-Linge 1950W
Position: 510
Indicative price: 26.26 €
PRESSOSTAT Lave-Linge
Position: 513
Indicative price: 22.36 €
SECURITE Lave-Linge PORTE
Position: 521
Indicative price: 48.22 €
PLATINE Lave-Linge PUISSANCE *vierge*
Position: 587
Indicative price: 149.83 €
PLATINE Lave-Linge PUISSANCE
Position: 587
Indicative price: 153.81 €
PLATINE Lave-Linge COMMANDE
Position: 587
Indicative price: 78.18 €
SUPPORT Lave-Linge PLATINE PUISSANCE
Position: 588
Indicative price: 57.57 €
PORTE Lave-Linge TAMBOUR KIT
Position: 600
Indicative price: 188.44 €
CUVE Lave-Linge COMPLETE
Position: 600
Indicative price: 210.16 €
TAMBOUR Lave-Linge
Position: 600
Indicative price: 209.24 €
Batteur Lave-Linge TAMBOUR PETITE
Position: 601
Indicative price: 20.81 €
Batteur Lave-Linge TAMBOUR LARGE Grand modèle
Position: 601
Indicative price: 41.43 €
COURROIE Lave-Linge 1195J5EL 5P195JE
Position: 602
Indicative price: 31.34 €
VIS Lave-Linge AXE PALIER M7*14
Position: 610
Indicative price: 17.27 €
PALIER Lave-Linge Gauche + JOINT
Position: 610
Indicative price: 41.31 €
PALIER Lave-Linge Droit + JOINT
Position: 610
Indicative price: 47.98 €
JOINT Lave-Linge PALIER
Position: 610
Indicative price: 11.1 €
JOINT Lave-Linge PALIER
Position: 610
Indicative price: 11.05 €
POULIE Lave-Linge TAMBOUR diam 273
Position: 620
Indicative price: 39.33 €
VIS Lave-Linge POULIE TAMBOUR M7*22
Position: 620
Indicative price: 9.86 €
Contre-poids Lave-Linge GAUCHE 12.8kk
Position: 621
Indicative price: 106.98 €
Contre-poids Lave-Linge DROIT 9,8 kgs
Position: 621
Indicative price: 62.62 €
AXE Lave-Linge AMORTISSEUR
Position: 623
Indicative price: 3.58 €
AMORTISSEUR Lave-Linge
Position: 623
Indicative price: 22.7 €
RESSORT Lave-Linge CUVE AVANT
Position: 624
Indicative price: 20.74 €
RESSORT Lave-Linge CUVE ARRIERE 14 STRIES 183MM
Position: 624
Indicative price: 21.02 €
JOINT Lave-Linge CHARGEMENT
Position: 808
Indicative price: 76.24 €
COLLIER Lave-Linge JOINT CHARGEMENT Inférieur
Position: 808
Indicative price: 32.63 €
COLLIER Lave-Linge JOINT CHARGEMENT Supérieur
Position: 808
Indicative price: 21.52 €
COLLIER Lave-Linge DURITE Electrovanne 16mm
Position: 821
Indicative price: 7.98 €
DURITE Lave-Linge PRELAVAGE
Position: 821
Indicative price: 45.22 €
TUYAU Lave-Linge PRESSOSTAT
Position: 827
Indicative price: 22.21 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 830
Indicative price: 15.85 €
TUYAU Lave-Linge VIDANGE
Position: 831
Indicative price: 19.83 €
COLLIER Lave-Linge DURITE
Position: 831
Indicative price: 6.77 €
CORPS Lave-Linge POMPE ASSEMBLE
Position: 840
Indicative price: 38.73 €
FILTRE Lave-Linge POMPE
Position: 841
Indicative price: 21.94 €
DISTRIBUTEUR Lave-Linge EAU
Position: 853
Indicative price: 62.69 €
ATTACHE Lave-Linge TUYAU VIDANGE
Position: 884
Indicative price: 8.59 €
