Exploded view réfrigérateur AMICA AB4221

Discover the complete exploded view réfrigérateur AMICA AB4221, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur AMICA AB4221 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

BALCONNET Froid CENTRAL TRANSPARENT CLAIR 440mm h=70mm
BALCONNET Froid CENTRAL TRANSPARENT CLAIR 440mm h=70mm
Position: 2
Indicative price: 31.92 €
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 440mm h=100/58mm
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 440mm h=100/58mm
Position: 3
Indicative price: 46.72 €
AMPOULE Froid 15w
AMPOULE Froid 15w
Position: 4
Indicative price: 3.29 €
DOUILLE Four LAMPE
DOUILLE Four LAMPE
Position: 5
Indicative price: 16.94 €
BOITIER Froid THERMOSTAT
BOITIER Froid THERMOSTAT
Position: 6
Indicative price: 18.78 €
DESHYDRATEUR Froid
DESHYDRATEUR Froid
Position: 6
Indicative price: 27.73 €
COMPRESSEUR UKV WS75YV R600A QD35Y
COMPRESSEUR UKV WS75YV R600A QD35Y
Position: 7
Indicative price: 126.4 €
CABLE Froid ALIMENTATION
CABLE Froid ALIMENTATION
Position: 8
Indicative price: 46.69 €

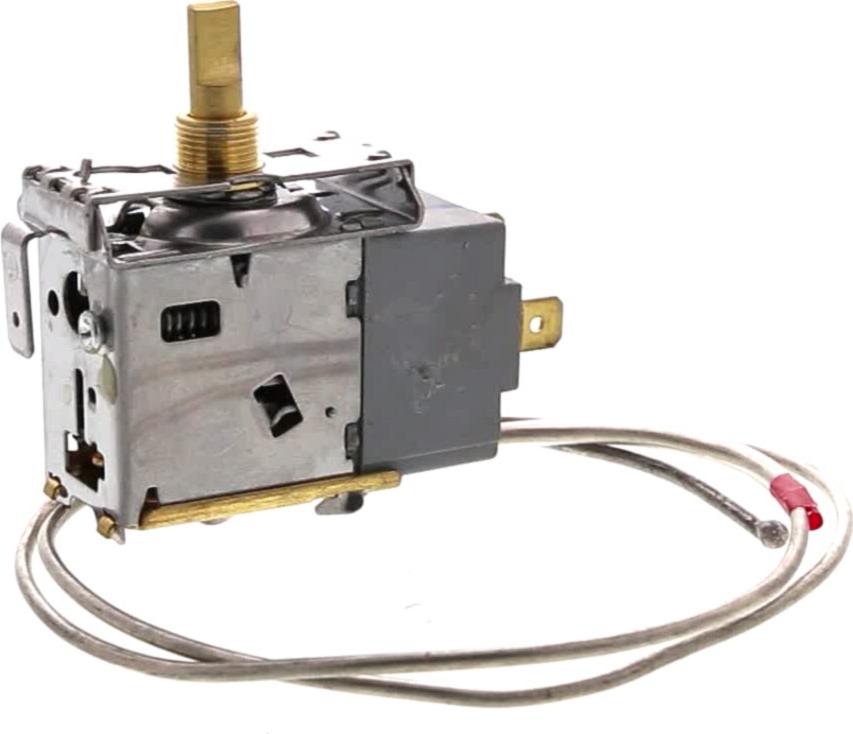

THERMOSTAT Froid WDF25K-921-328 bulbe=615mm 3 cosses
THERMOSTAT Froid WDF25K-921-328 bulbe=615mm 3 cosses
Position: 10
Indicative price: 31.65 €
BORNIER Froid
BORNIER Froid
Position: 12
Indicative price: 6.6 €
Interrupteur Froid LUMIERE
Interrupteur Froid LUMIERE
Position: 17
Indicative price: 22.18 €
DESSUS Froid BAC LEGUMES 466*258
DESSUS Froid BAC LEGUMES 466*258
Position: 19
Indicative price: 33.21 €
CLAYETTE Froid VERRE 468*290
CLAYETTE Froid VERRE 468*290
Position: 20
Indicative price: 56.83 €
