Exploded view réfrigérateur AMICA AF0902S
Discover the complete exploded view réfrigérateur AMICA AF0902S, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur AMICA AF0902S and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PIED Froid Avant Gauche
Position: 3
Indicative price: 8.5 €
CLAYETTE Froid REFRIGERATEUR 410*260
Position: 7
Indicative price: 21.47 €
DESSUS Froid BAC LEGUMES 406*123
Position: 8
Indicative price: 15.18 €
BAC Froid LEGUMES TRANSPARENT CLAIR 382*110*211 382*95*208
Position: 10
Indicative price: 44.62 €
JOINT Froid MAGNETIQUE 790*465
Position: 11
Indicative price: 46.27 €
RELAIS Froid DEMARRAGE QPE2-A15MD3 3 COSSES
Position: 26
Indicative price: 14.41 €
BALCONNET Froid CENTRAL
Position: 34
Indicative price: 25.33 €
BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 389*80*100
Position: 36
Indicative price: 30.27 €
BOITIER Froid THERMOSTAT
Position: 43
Indicative price: 18.55 €
THERMOSTAT Froid
Position: 44
Indicative price: 38.65 €
CHARNIERE Froid PORTE FREEZER
Position: 48
Indicative price: 14.48 €

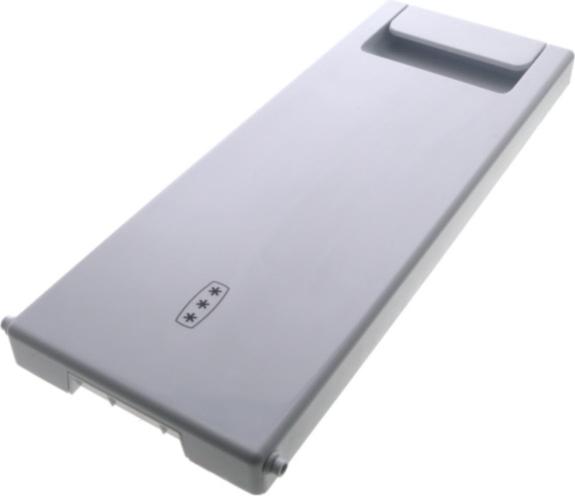

PORTE Froid FREEZER
Position: 52
Indicative price: 22.18 €
JOINT Froid PORTE FREEZER 370*145
Position: 53
Indicative price: 28.46 €
Interrupteur Froid LUMIERE Réfrigérateur
Position: 55
Indicative price: 15.3 €

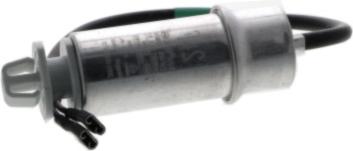

CONDENSATEUR Froid 4uf 450V
Position: 65
Indicative price: 23.66 €
LAMPE Froid LED
Position: 67
Indicative price: 41.16 €
