Exploded view cuisinière AMICA ACG103B
Discover the complete exploded view cuisinière AMICA ACG103B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière AMICA ACG103B and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
SUPPORT Cuisinière CHARNIERE
Position: 1
Indicative price: 20.25 €
CHAPEAU Cuisinière BRULEUR Auxiliaire D=53mm
Position: 3
Indicative price: 12.33 €
CHAPEAU Cuisinière BRULEUR Rapide
Position: 4
Indicative price: 14.77 €
CHAPEAU Cuisinière BRULEUR Semi-rapide D=73mm
Position: 5
Indicative price: 15.96 €
FOND Cuisinière FOUR AMOVIBLE
Position: 5
Indicative price: 59.57 €
BUTEE Cuisinière NOIR
Position: 7
Indicative price: 16.34 €
TETE Cuisinière BRULEUR Auxiliaire
Position: 7
Indicative price: 20.71 €

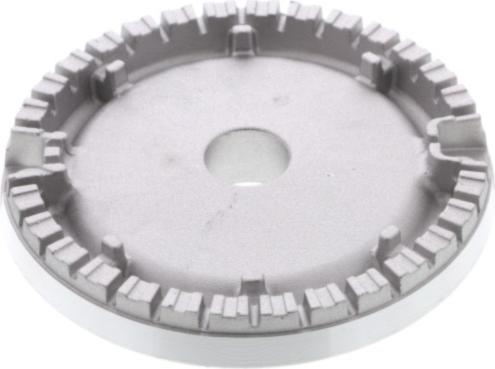

TETE Cuisinière BRULEUR Rapide
Position: 8
Indicative price: 24.53 €
PLAQUE Four CATALYTIQUE
Position: 8
Indicative price: 69.71 €
BRULEUR Cuisinière FOUR COMPLET
Position: 11
Indicative price: 69.65 €
THERMOCOUPLE Cuisinière FOUR
Position: 13
Indicative price: 27.56 €
VOYANT Cuisinière
Position: 14
Indicative price: 29.05 €
THERMOCOUPLE Cuisinière FOUR 1200mm A EMBOITER
Position: 15
Indicative price: 31.12 €
CACHE Cuisinière VOYANT ROUGE
Position: 15
Indicative price: 8.44 €
PROGRAMMATEUR Cuisinière MINUTERIE DKJ-Y 120' E237571 V012647 50192052
Position: 16
Indicative price: 32.32 €
MANETTE Cuisinière MINUTERIE Blanc
Position: 18
Indicative price: 16.15 €
CLIPS Cuisinière MANETTE
Position: 20
Indicative price: 18.76 €
MANETTE Cuisinière BLANCHE
Position: 22
Indicative price: 34.55 €
ALLUMEUR Cuisinière
Position: 22
Indicative price: 32.62 €
MOTEUR Cuisinière TOURNE BROCHE
Position: 23
Indicative price: 37.78 €
BUTEE Cuisinière PORTE
Position: 23
Indicative price: 19.73 €
JOINT Cuisinière MOUFLE
Position: 24
Indicative price: 35.56 €
BORNIER Four
Position: 25
Indicative price: 31.88 €
PORTE Cuisinière SOUS FOUR
Position: 26
Indicative price: 31.62 €
GUIDE Cuisinière GAUCHE TIROIR
Position: 29
Indicative price: 28.62 €
LECHE FRITES Cuisinière 430*377
Position: 34
Indicative price: 58.34 €
BOUGIE Cuisinière 600mm
Position: 35
Indicative price: 16.53 €
BOUGIE Cuisinière 300mm
Position: 36
Indicative price: 15.73 €
SUPPORT Cuisinière BRULEUR Rapide
Position: 37
Indicative price: 26.31 €
SUPPORT Cuisinière BRULEUR Semi-rapide
Position: 38
Indicative price: 17.4 €
SUPPORT Cuisinière INJECTEUR Auxiliaire
Position: 39
Indicative price: 17.73 €
PIED Cuisinière 32*30
Position: 41
Indicative price: 15.43 €
CHARNIERE Cuisinière COUVERCLE
Position: 48
Indicative price: 18.03 €
DOUILLE Cuisinière ECLAIRAGE COMPLETE
Position: 51
Indicative price: 44.81 €
ENTRETOISE Cuisinière POIGNEE
Position: 53
Indicative price: 18.31 €
AMPOULE Cuisinière
Position: 56
Indicative price: 5.87 €
JEU Cuisinière Injecteur Gaz Naturel
Position: 58
Indicative price: 33.82 €
JEU Cuisinière Injecteur Gaz Butane
Position: 59
Indicative price: 26.66 €
GUIDE Cuisinière DROIT TIROIR
Position: 63
Indicative price: 29.83 €
