Exploded view cuisinière AMICA ACG121B
Discover the complete exploded view cuisinière AMICA ACG121B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière AMICA ACG121B and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
VITRE Cuisinière EXTERIEURE 495*471 entraxe 447
Position: 3007
Indicative price: 112.91 €
COUVERCLE Cuisinière
Position: 3019
Indicative price: 71.44 €
CHARNIERE Cuisinière PORTE Droit ou Gauche
Position: 3023
Indicative price: 33.7 €
GRILLE Cuisinière FOUR 430*373
Position: 3026
Indicative price: 39.08 €
LECHE Cuisinière FRITES
Position: 3027
Indicative price: 79.54 €
COUVERCLE Cuisinière BLANC
Position: 3034
Indicative price: 66.8 €
PANNEAU Cuisinière ISOLATION ARRIERE
Position: 3035
Indicative price: 37.6 €
BORNIER Four
Position: 3045
Indicative price: 30.49 €
FOND Cuisinière FOUR AMOVIBLE
Position: 3067
Indicative price: 69.65 €
JOINT Cuisinière PORTE FOUR 4 crochets 405*315
Position: 3068
Indicative price: 38.61 €

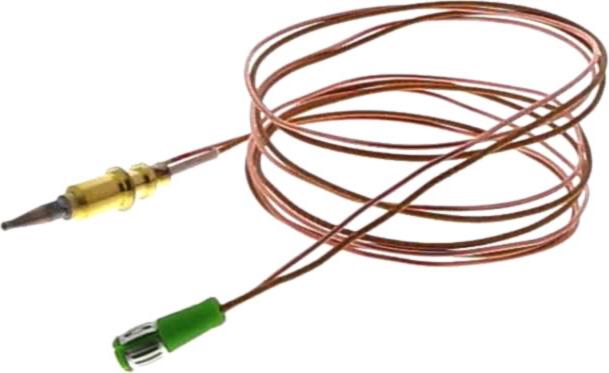

THERMOCOUPLE Cuisinière FOUR
Position: 3092
Indicative price: 24.94 €
THERMOCOUPLE Cuisinière 245MM A EMBOITER
Position: 3092
Indicative price: 15.94 €
THERMOCOUPLE Cuisinière FOUR
Position: 3092
Indicative price: 28.35 €
PIED Cuisinière 32*30
Position: 3093
Indicative price: 14.78 €
CLIPS Cuisinière MANETTE
Position: 3096
Indicative price: 19.7 €

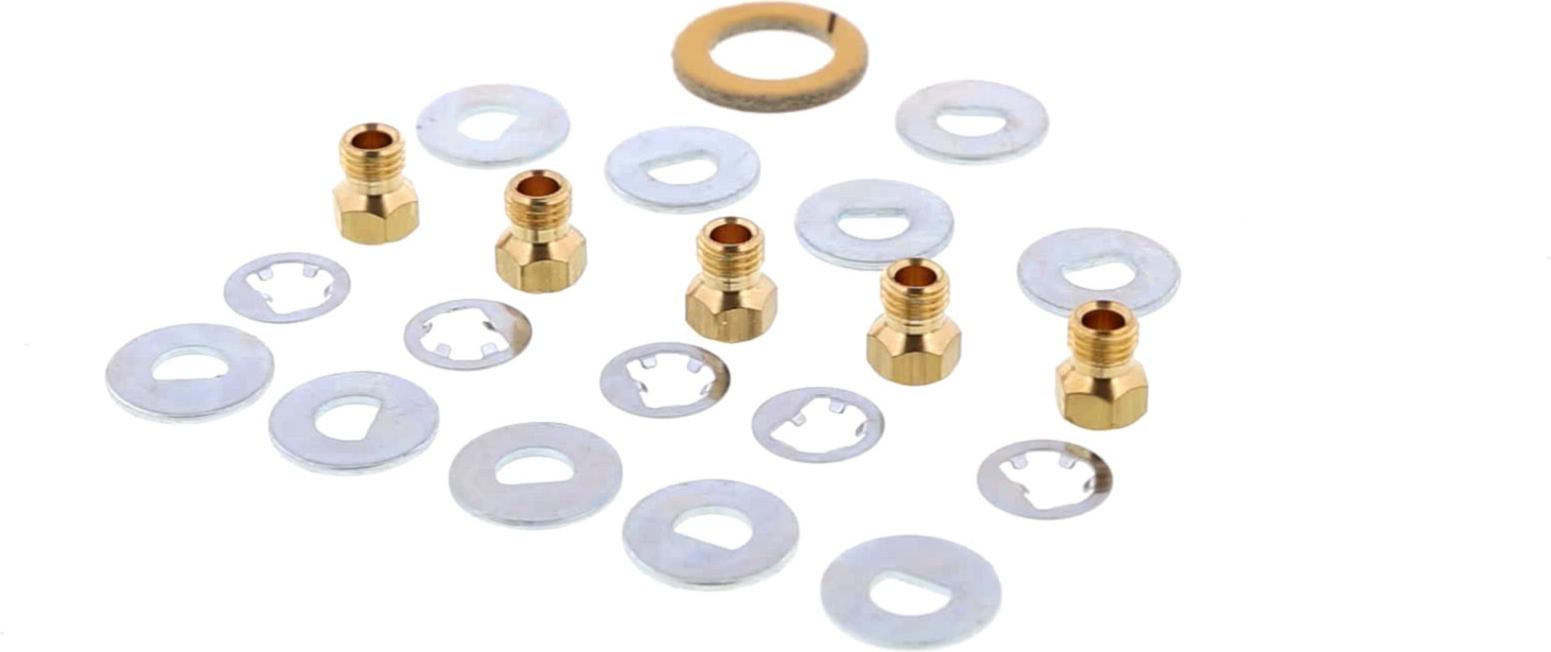

JEU Cuisinière Injecteur Gaz Butane
Position: 3157
Indicative price: 21.44 €
RESSORT Cuisinière MANETTE
Position: 3190
Indicative price: 18.4 €
PROFIL Cuisinière Supérieur PORTE
Position: 3253
Indicative price: 19.89 €
TETE Cuisinière BRULEUR Auxiliaire
Position: 3270
Indicative price: 19.49 €
TETE Cuisinière BRULEUR Semi-rapide D68
Position: 3271
Indicative price: 22.7 €
TETE Cuisinière BRULEUR Rapide
Position: 3272
Indicative price: 23 €
SUPPORT Cuisinière INJECTEUR Auxiliaire
Position: 3273
Indicative price: 16.88 €
SUPPORT Cuisinière BRULEUR Semi-rapide
Position: 3274
Indicative price: 20.53 €
SUPPORT Cuisinière BRULEUR Rapide
Position: 3275
Indicative price: 23.43 €
CHAPEAU Cuisinière BRULEUR Auxiliaire D=53mm
Position: 3278
Indicative price: 12.55 €
CHAPEAU Cuisinière BRULEUR Semi-rapide D=73mm
Position: 3279
Indicative price: 15.36 €
CHAPEAU Cuisinière BRULEUR Rapide
Position: 3280
Indicative price: 13.78 €
PLAQUE Four CATALYTIQUE
Position: 3363
Indicative price: 67.86 €
JEU Cuisinière Injecteur Gaz Butane
Position: 3418
Indicative price: 28.52 €
ISOLATION Cuisinière ARRIERE
Position: 3565
Indicative price: 17.18 €
SUPPORT Cuisinière CHARNIERE
Position: 3566
Indicative price: 21.53 €
CHARNIERE Cuisinière COUVERCLE
Position: 3572
Indicative price: 16.92 €
AGRAPHE Cuisinière DROITE VITRE
Position: 3575
Indicative price: 21.57 €
AGRAPHE Cuisinière GAUCHE VITRE
Position: 3576
Indicative price: 22.78 €
BUTEE Four INFERIEURE
Position: 3577
Indicative price: 12.35 €
GRILLE Cuisinière GAUCHE
Position: 3586
Indicative price: 66.33 €
GRILLE Cuisinière DROITE
Position: 3587
Indicative price: 45.56 €
Interrupteur Cuisinière ALLULMAGE
Position: 3589
Indicative price: 38.89 €
TUYAU Cuisinière RACCORD BRULEUR FOUR
Position: 3600
Indicative price: 11.98 €
JOINT Plaque RACCORD GAZ
Position: 3983
Indicative price: 2.32 €
JEU Cuisinière Injecteur Gaz Naturel
Position: 4022
Indicative price: 43.49 €
ROBINET Cuisinière 0,29
Position: 4307
Indicative price: 46.52 €
ROBINET Cuisinière 0,39 BY PASS
Position: 4519
Indicative price: 69.58 €
VIS Cuisinière CHARNIERE COUVERCLE
Position: 4582
Indicative price: 13.4 €
