Exploded view cuisinière AMICA ACV3004B
Discover the complete exploded view cuisinière AMICA ACV3004B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière AMICA ACV3004B and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PROFIL Cuisinière SOCLE TIROIR AVEC PIED
Position: 1
Indicative price: 34.25 €
FOYER Cuisinière 1200W
Position: 3
Indicative price: 100.62 €
CLIPS Cuisinière MANETTE
Position: 4
Indicative price: 18.17 €
FOYER Cuisinière 1800W
Position: 4
Indicative price: 89.39 €
DOUILLE Cuisinière ECLAIRAGE COMPLETE
Position: 6
Indicative price: 41.23 €
AMPOULE Cuisinière
Position: 7
Indicative price: 6.14 €
COMMUTATEUR Cuisinière NRJ 50.87021.000 57087021000
Position: 8
Indicative price: 41.04 €

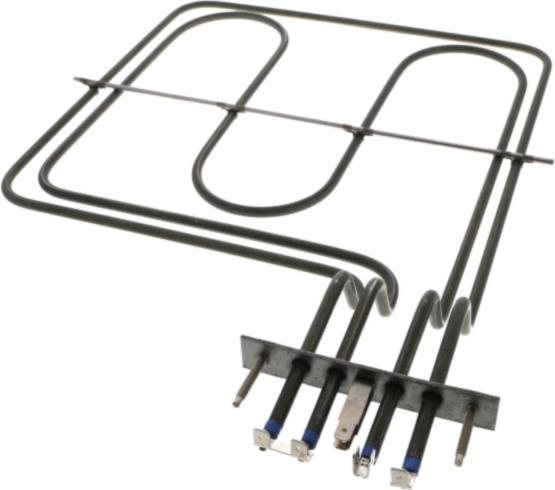

RESISTANCE Cuisinière VOUTE 2900W
Position: 10
Indicative price: 75.6 €
SUPPORT Cuisinière BROCHE
Position: 11
Indicative price: 35.11 €
ENTRETOISE Cuisinière POIGNEE
Position: 12
Indicative price: 18.71 €
BROCHE Cuisinière
Position: 12
Indicative price: 27.23 €
PIED Cuisinière 32*30
Position: 13
Indicative price: 17.84 €
CONNECTEUR Cuisinière
Position: 14
Indicative price: 21.02 €
VOYANT Cuisinière
Position: 14
Indicative price: 26.97 €
RESISTANCE Cuisinière INFERIEURE 1100W 42413
Position: 15
Indicative price: 52.4 €
CACHE Cuisinière VOYANT ROUGE
Position: 15
Indicative price: 8.37 €
SUPPORT Cuisinière FACADE TIROIR
Position: 16
Indicative price: 42.86 €
BORNIER Cuisinière 12C
Position: 18
Indicative price: 41.7 €
MOTEUR Cuisinière TOURNE BROCHE
Position: 19
Indicative price: 37.08 €
CABLE Cuisinière ALIMENTATION 5*2.5
Position: 20
Indicative price: 73.02 €
PLAQUE Four CATALYTIQUE
Position: 22
Indicative price: 66.83 €
FACADE Cuisinière TIROIR
Position: 23
Indicative price: 53.4 €
TAQUE Cuisinière VITRO
Position: 25
Indicative price: 334.9 €
BUTEE Cuisinière PORTE
Position: 27
Indicative price: 17.8 €
TIROIR Cuisinière INFERIEUR
Position: 28
Indicative price: 76.86 €
MOTEUR Cuisinière C/T P161 20W A15 R 00217 + TURBINE
Position: 28
Indicative price: 88.15 €
THERMOSTAT Cuisinière 299° 55.17069.140 5517069140
Position: 29
Indicative price: 49.72 €
CHARNIERE Four PORTE FOUR 170MM 15 STRIES
Position: 30
Indicative price: 33.32 €
JOINT Cuisinière PORTE FOUR 4 crochets 405*315
Position: 32
Indicative price: 43.3 €
GUIDE Cuisinière GAUCHE TIROIR
Position: 34
Indicative price: 27.71 €
GUIDE Cuisinière DROIT TIROIR
Position: 35
Indicative price: 27.17 €
COMMUTATEUR Cuisinière FOUR 800810K 8062895
Position: 35
Indicative price: 48.81 €
SUPPORT Cuisinière VITRE INTERIEUR DROIT
Position: 36
Indicative price: 23.3 €
SUPPORT Cuisinière VITRE INTERIEUR GAUCHE
Position: 37
Indicative price: 21.97 €
PROFIL Four Supérieur PORTE
Position: 38
Indicative price: 21.78 €
SUPPORT Four VITRE INTERMEDIAIRE
Position: 39
Indicative price: 16.78 €
POIGNEE Cuisinière PORTE BLANCHE
Position: 46
Indicative price: 64.43 €
MANETTE Cuisinière THERMOSTAT
Position: 49
Indicative price: 32.56 €
LECHE FRITE Cuisinière 430*376*46
Position: 50
Indicative price: 53.95 €

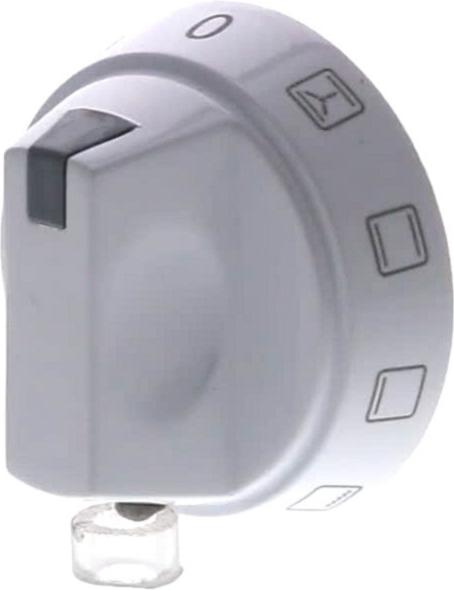

MANETTE Cuisinière COMMUTATEUR
Position: 51
Indicative price: 14.22 €
