Exploded view cuisinière AMICA ACI315B
Discover the complete exploded view cuisinière AMICA ACI315B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière AMICA ACI315B and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
PLAQUE Cuisinière PATISSERIE 362*340
Position: 1
Indicative price: 37.33 €

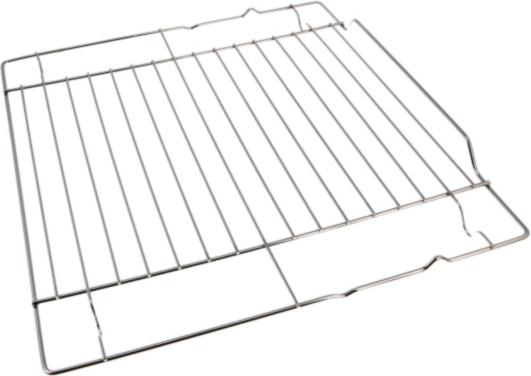

GRILLE Cuisinière FOUR 430*373
Position: 2
Indicative price: 38.89 €
LECHE FRITES Cuisinière
Position: 3
Indicative price: 82.18 €

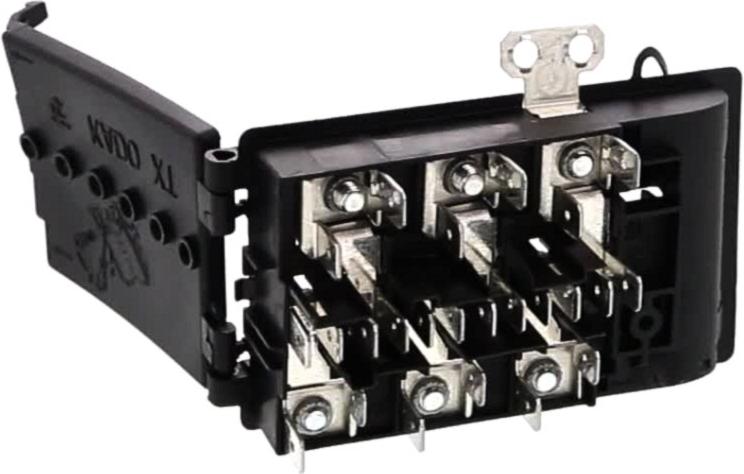

BORNIER Cuisinière BORNES
Position: 12
Indicative price: 34.18 €

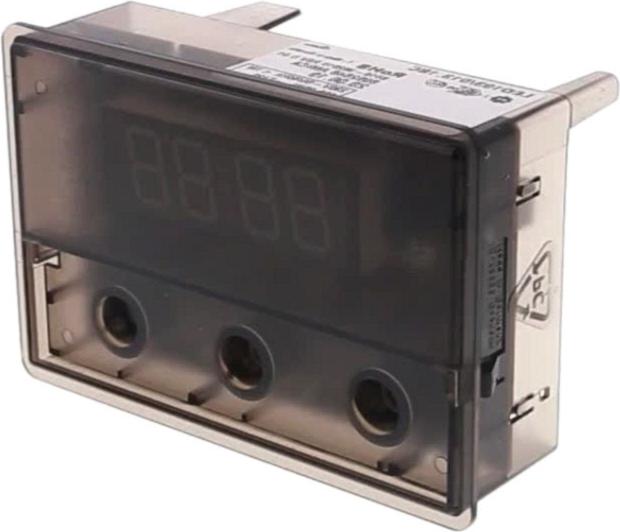

PROGRAMMATEUR Cuisinière 3 BOUTONS ATA11001 LED193/013.1BC
Position: 14
Indicative price: 99.26 €
VOYANT Cuisinière
Position: 15
Indicative price: 29.31 €
CACHE Cuisinière VOYANT ROUGE
Position: 16
Indicative price: 8.56 €

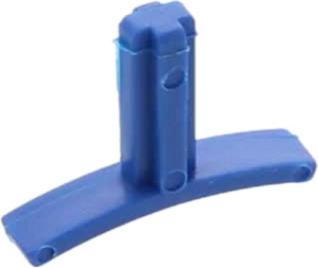

AXE Four BOUTON
Position: 18
Indicative price: 6.99 €

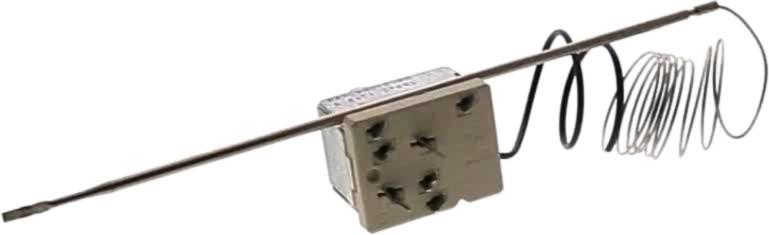

THERMOSTAT Cuisinière 299° 55.17069.140 5517069140
Position: 21
Indicative price: 55.15 €

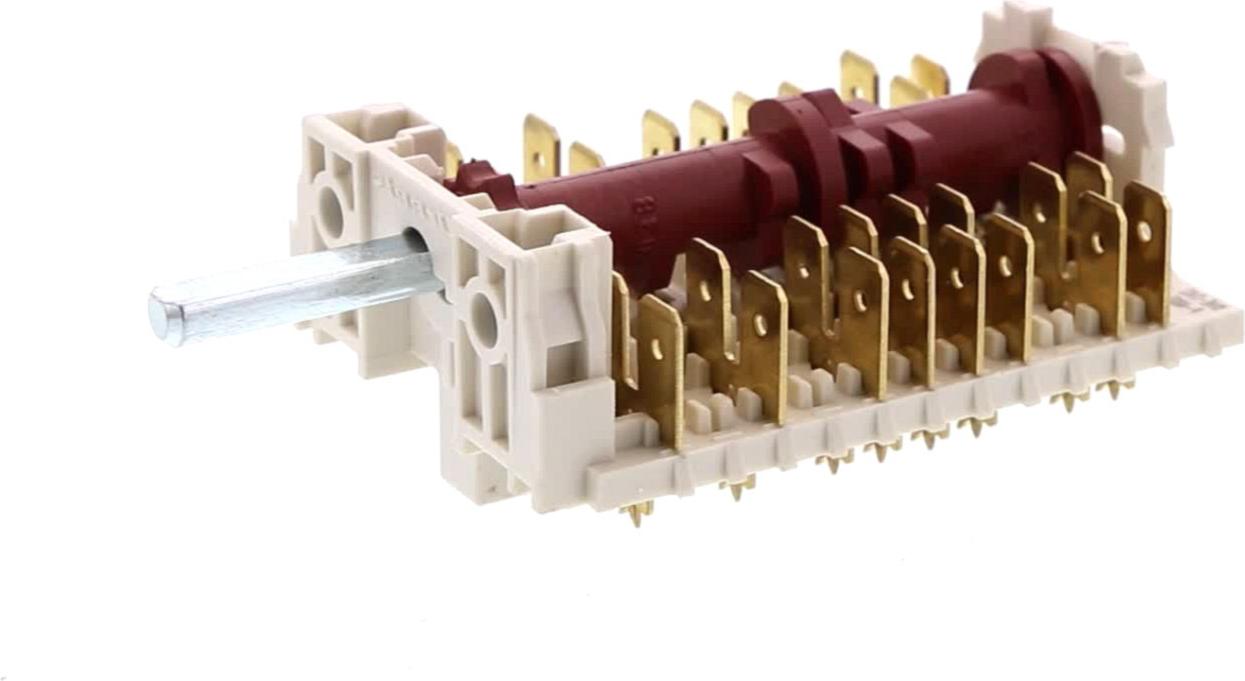

COMMUTATEUR Cuisinière 11HE-242 P-0916 4891/1 W4 3
Position: 22
Indicative price: 40.63 €
DOUILLE Cuisinière ECLAIRAGE COMPLETE
Position: 23
Indicative price: 28.6 €
AMPOULE Cuisinière
Position: 24
Indicative price: 5.72 €

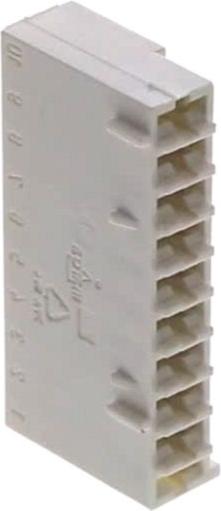

CONNECTEUR Cuisinière
Position: 25
Indicative price: 20.37 €

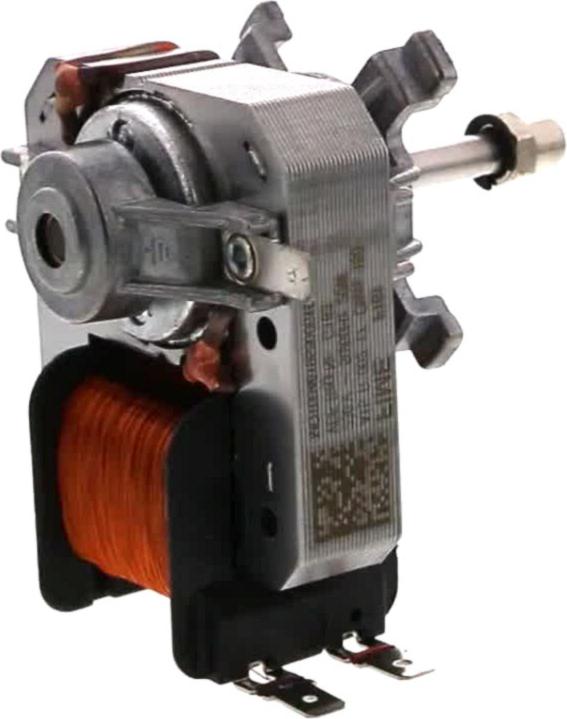

MOTEUR Cuisinière C/T P161 20W A15 R 00217 + TURBINE
Position: 26
Indicative price: 93.89 €
BOUTON Cuisinière TIMER OK
Position: 29
Indicative price: 11.09 €
BOUTON Cuisinière TIMER
Position: 30
Indicative price: 9.82 €

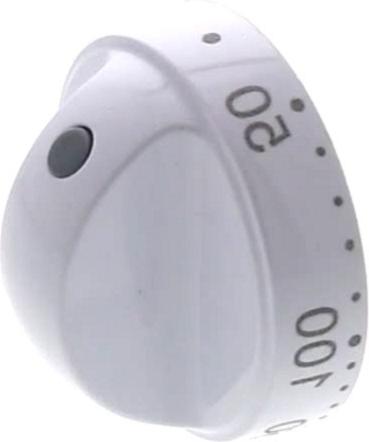

MANETTE Cuisinière
Position: 31
Indicative price: 30.99 €

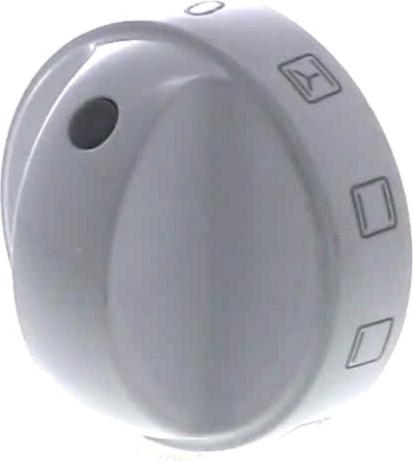

MANETTE Cuisinière
Position: 32
Indicative price: 12.64 €
CLIPS Cuisinière MANETTE
Position: 33
Indicative price: 19.37 €
RESISTANCE Cuisinière GRILL
Position: 35
Indicative price: 58.12 €
PANNEAU Cuisinière ISOLATION ARRIERE
Position: 38
Indicative price: 36.31 €
PIED Cuisinière 32*30
Position: 39
Indicative price: 17.31 €
BUTEE Cuisinière PORTE
Position: 40
Indicative price: 19.3 €
JOINT Cuisinière MOUFLE
Position: 41
Indicative price: 33.78 €
GRILLE Cuisinière VENTILATION
Position: 42
Indicative price: 47.8 €
SUPPORT Cuisinière CHARNIERE
Position: 43
Indicative price: 20.84 €

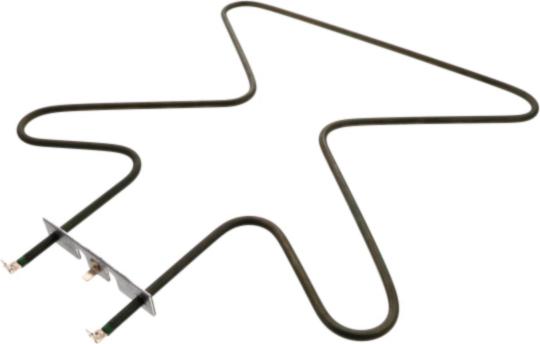

RESISTANCE Cuisinière INFERIEURE 1100W 42413
Position: 45
Indicative price: 52.6 €
CABLE Cuisinière ALIMENTATION 5*2.5
Position: 49
Indicative price: 70.21 €

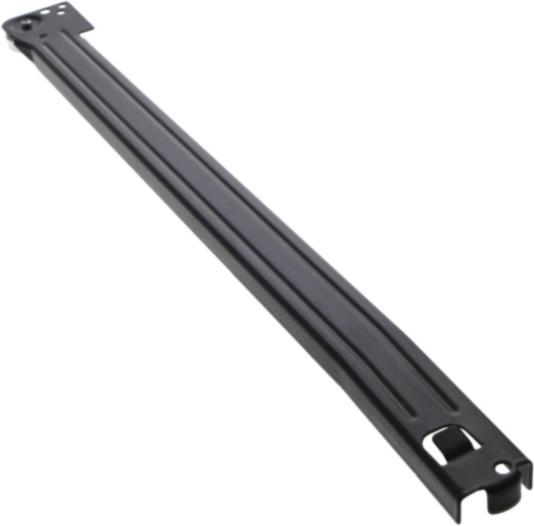

GUIDE Cuisinière GAUCHE TIROIR
Position: 50
Indicative price: 29.61 €
PLAQUE Four CATALYTIQUE
Position: 55
Indicative price: 60.9 €

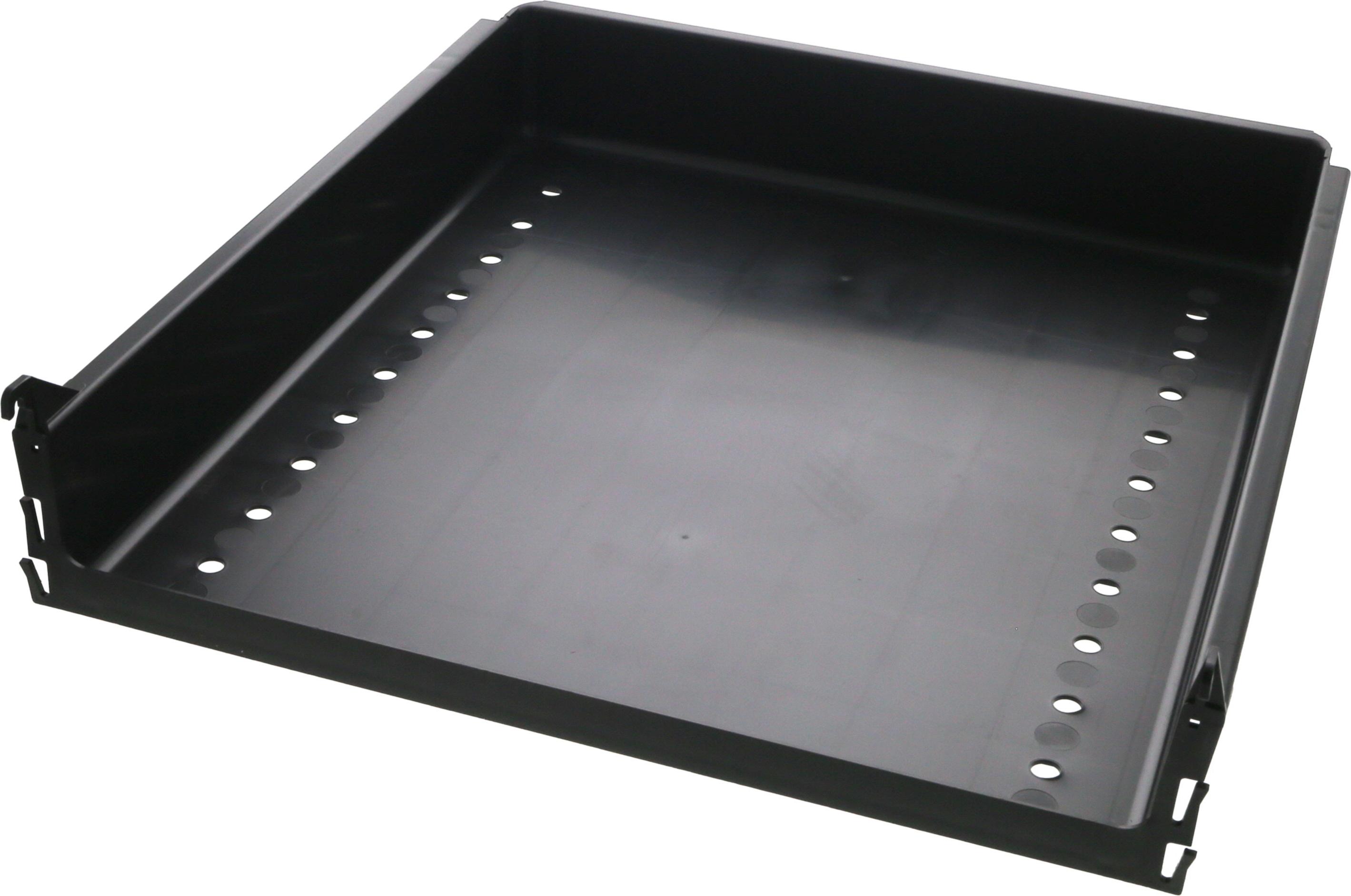

TIROIR Cuisinière
Position: 57
Indicative price: 52.42 €
ENTRETOISE Cuisinière POIGNEE
Position: 59
Indicative price: 18.11 €
MOTEUR Cuisinière TOURNE BROCHE
Position: 63
Indicative price: 33.37 €
SUPPORT Cuisinière BROCHE
Position: 64
Indicative price: 34.42 €

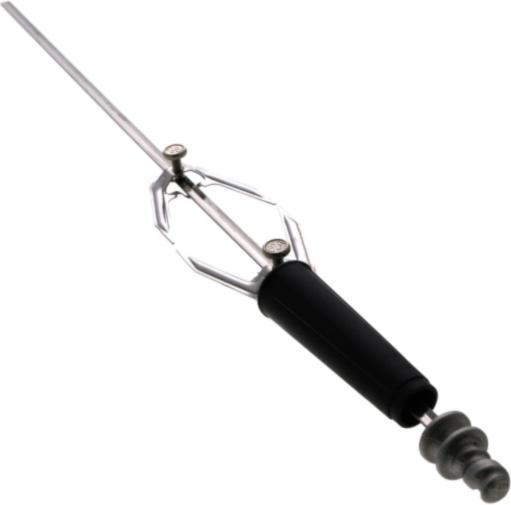

BROCHE Cuisinière
Position: 65
Indicative price: 25.26 €
VITRE Cuisinière Extérieure NOIRE AMICA 495*471 (entraxe 370mm)
Position: 67

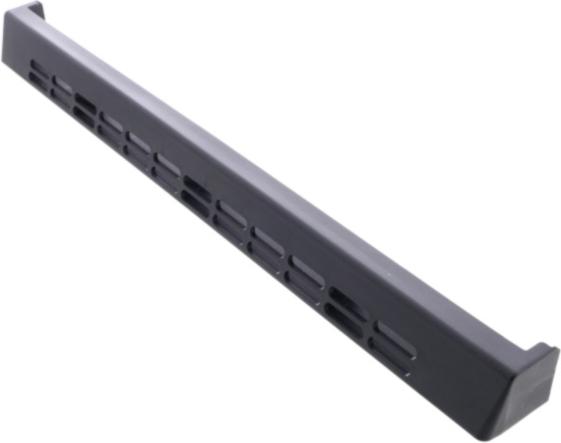

PROFIL Cuisinière Supérieur PORTE
Position: 68
Indicative price: 20.57 €

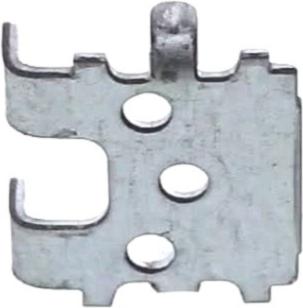

BUTEE Four INFERIEURE
Position: 69
Indicative price: 12.56 €
VITRE Cuisinière INTERMEDIAIRE420*388
Position: 70
Indicative price: 42.24 €
VITRE Cuisinière INTERIEURE 470*391
Position: 71
Indicative price: 76.5 €

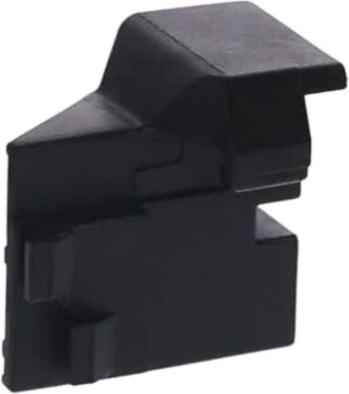

AGRAPHE Cuisinière DROITE VITRE
Position: 72
Indicative price: 20.09 €

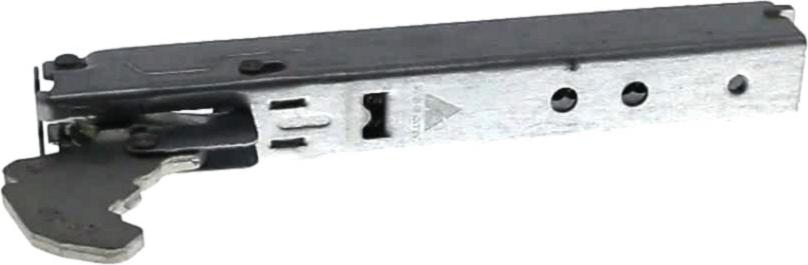

CHARNIERE Cuisinière PORTE Gauche OU Droit
Position: 73
Indicative price: 27.92 €
PROFIL Cuisinière VITRE INTERMEDIAIRE
Position: 74
Indicative price: 12.28 €

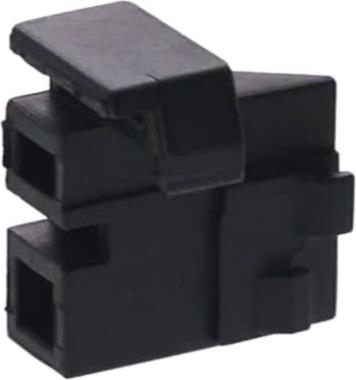

AGRAPHE Cuisinière GAUCHE VITRE
Position: 75
Indicative price: 20.1 €

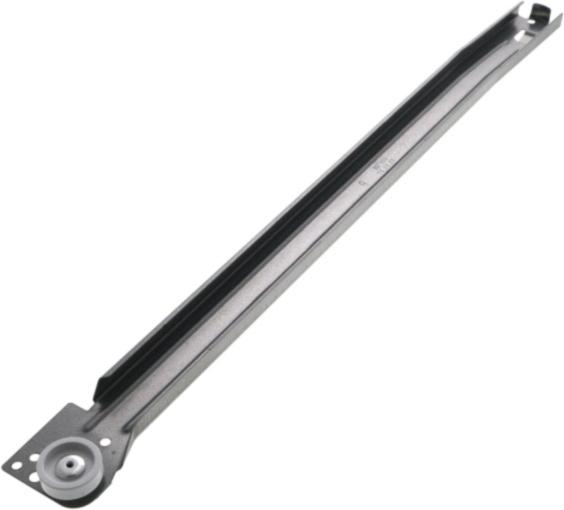

GUIDE Cuisinière DROIT TIROIR
Position: 76
Indicative price: 24.42 €
