Exploded view cuisinière AMICA ACI7005VB

Discover the complete exploded view cuisinière AMICA ACI7005VB, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière AMICA ACI7005VB and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

VITRE Cuisinière EXTERIEURE
VITRE Cuisinière EXTERIEURE
Position: 3007
Indicative price: 109.49 €
CHARNIERE Four PORTE FOUR 170MM 15 STRIES
CHARNIERE Four PORTE FOUR 170MM 15 STRIES
Position: 3023
Indicative price: 32.62 €
LECHE Cuisinière FRITES
LECHE Cuisinière FRITES
Position: 3027
Indicative price: 69.94 €
DOUILLE Cuisinière ECLAIRAGE COMPLETE
DOUILLE Cuisinière ECLAIRAGE COMPLETE
Position: 3029
Indicative price: 30.61 €

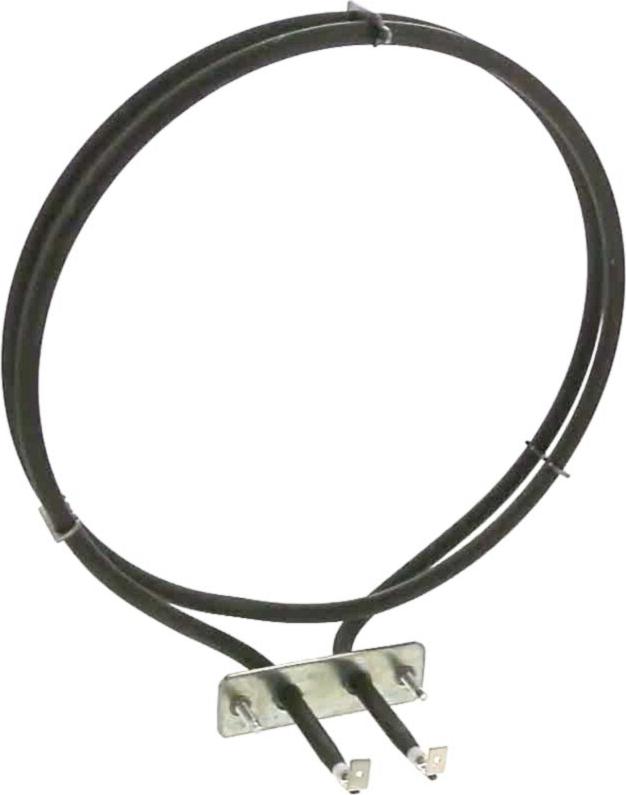

RESISTANCE Four CIRCULAIRE 2100W  7768 04
RESISTANCE Four CIRCULAIRE 2100W 7768 04
Position: 3040
Indicative price: 48.32 €

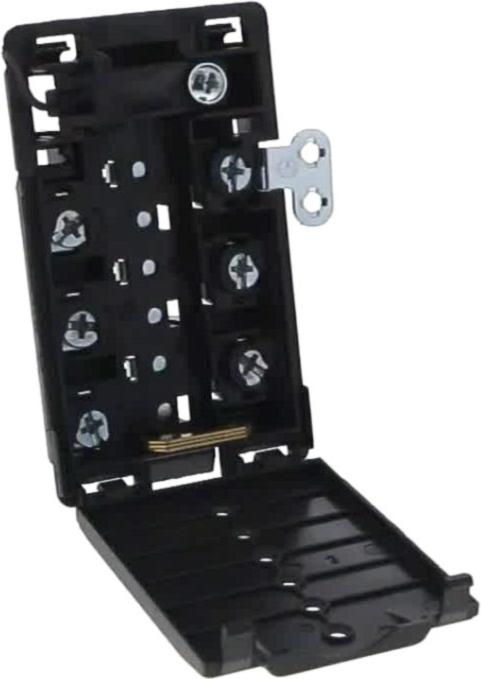

BORNIER Cuisinière
BORNIER Cuisinière
Position: 3045
Indicative price: 17.16 €
JOINT Cuisinière PORTE
JOINT Cuisinière PORTE
Position: 3068
Indicative price: 38.25 €
AXE Four BOUTON
AXE Four BOUTON
Position: 3071
Indicative price: 7.53 €
THERMOSTAT Cuisinière 299° 55.17069.140 5517069140
THERMOSTAT Cuisinière 299° 55.17069.140 5517069140
Position: 3074
Indicative price: 54.85 €

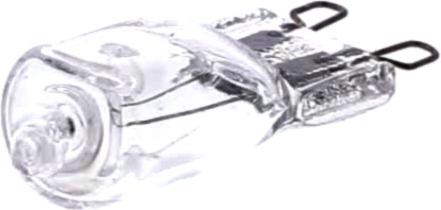

AMPOULE Four HALOGENE G9 25W 400° **remplacée par 40W**
AMPOULE Four HALOGENE G9 25W 400° **remplacée par 40W**
Position: 3081
Indicative price: 12.25 €

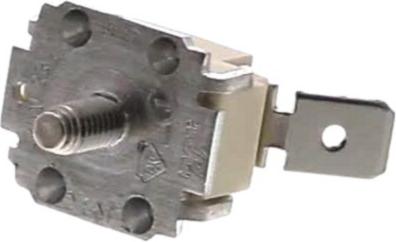

THERMOSTAT Cuisinière SECURITE
THERMOSTAT Cuisinière SECURITE
Position: 3086
Indicative price: 19.58 €
PIED Cuisinière 32*30
PIED Cuisinière 32*30
Position: 3093
Indicative price: 16.08 €
CLIPS Cuisinière MANETTE
CLIPS Cuisinière MANETTE
Position: 3096
Indicative price: 19.19 €

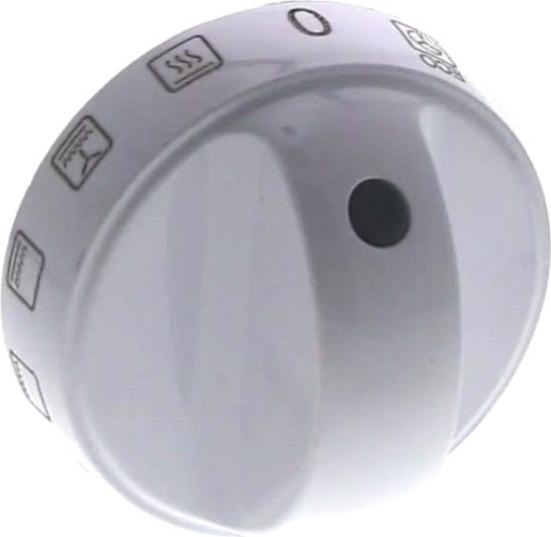

MANETTE Cuisinière COMMUTATEUR
MANETTE Cuisinière COMMUTATEUR
Position: 3110
Indicative price: 13.07 €
MANETTE Cuisinière
MANETTE Cuisinière
Position: 3111
Indicative price: 30.77 €
MOTEUR Cuisinière C/T P161 20W A15 R 00217 + TURBINE
MOTEUR Cuisinière C/T P161 20W A15 R 00217 + TURBINE
Position: 3152
Indicative price: 84.52 €
CACHE Four VOYANT ROUGE
CACHE Four VOYANT ROUGE
Position: 3256
Indicative price: 2.62 €
SUPPORT Cuisinière FACADE TIROIR
SUPPORT Cuisinière FACADE TIROIR
Position: 3348
Indicative price: 38.22 €
VOYANT Cuisinière S43C
VOYANT Cuisinière S43C
Position: 3488
Indicative price: 12.91 €
RESISTANCE Cuisinière SUPERIEURE
RESISTANCE Cuisinière SUPERIEURE
Position: 3562
Indicative price: 57.66 €
SUPPORT Cuisinière VITRE INTERIEUR DROIT
SUPPORT Cuisinière VITRE INTERIEUR DROIT
Position: 3575
Indicative price: 26.86 €
SUPPORT Cuisinière VITRE INTERIEUR GAUCHE
SUPPORT Cuisinière VITRE INTERIEUR GAUCHE
Position: 3576
Indicative price: 22.14 €
BUTEE Four INFERIEURE
BUTEE Four INFERIEURE
Position: 3577
Indicative price: 11.94 €
CONNECTEUR Cuisinière
CONNECTEUR Cuisinière
Position: 3797
Indicative price: 18.74 €
PROFIL Cuisinière VITRE INTERMEDIAIRE
PROFIL Cuisinière VITRE INTERMEDIAIRE
Position: 4221
Indicative price: 14.47 €
SUPPORT Four VITRE INTERMEDIAIRE
SUPPORT Four VITRE INTERMEDIAIRE
Position: 4238
Indicative price: 18.07 €

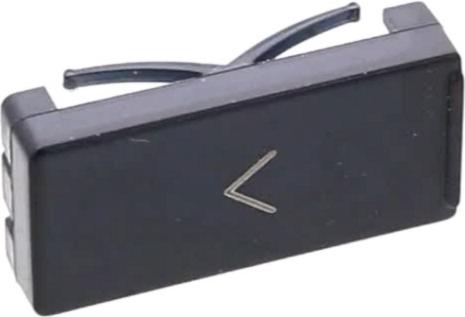

BOUTON Four PROGRAMMATEUR
BOUTON Four PROGRAMMATEUR
Position: 4257
Indicative price: 12.1 €
PLATINE Cuisinière PUISSANCE MG360.02
PLATINE Cuisinière PUISSANCE MG360.02
Position: 4288
Indicative price: 425.76 €
VIS Cuisinière CHARNIERE COUVERCLE
VIS Cuisinière CHARNIERE COUVERCLE
Position: 4582
Indicative price: 14.25 €
