Exploded view lave linge VEDETTE LF703 9210032T7

Discover the complete exploded view lave linge VEDETTE LF703 9210032T7, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge VEDETTE LF703 9210032T7 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

RESSORT Lave-Linge CUVE
RESSORT Lave-Linge CUVE
Position: 4
Indicative price: 29.52 €

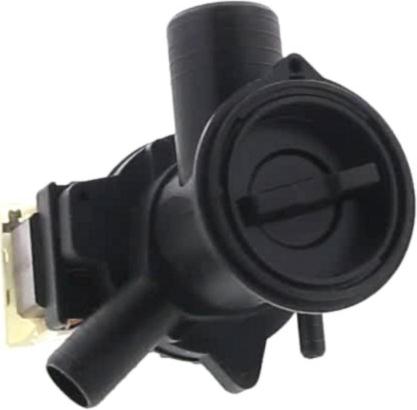

POMPE Lave-Linge VIDANGE 66404 30w
POMPE Lave-Linge VIDANGE 66404 30w
Position: 6
Indicative price: 37.22 €
FILTRE Lave-Linge Pompe de vidange
FILTRE Lave-Linge Pompe de vidange
Position: 8
Indicative price: 28.18 €
MODULE Lave-Linge
MODULE Lave-Linge
Position: 13
Indicative price: 186.37 €
MOTEUR Lave-Linge
MOTEUR Lave-Linge
Position: 13
Indicative price: 163.4 €
CONDENSATEUR Lave-Linge ANTIPARASITE
CONDENSATEUR Lave-Linge ANTIPARASITE
Position: 25
Indicative price: 65.62 €
ELECTROVANNE Lave-Linge 1 VOIE DROITE
ELECTROVANNE Lave-Linge 1 VOIE DROITE
Position: 39
Indicative price: 38.67 €
AMORTISSEUR Lave-Linge = épuisé
AMORTISSEUR Lave-Linge = épuisé
Position: 102
CUVE Lave-Linge + ROULEMENT
CUVE Lave-Linge + ROULEMENT
Position: 109
Indicative price: 116.2 €
TAMBOUR Lave-Linge COMPLET
TAMBOUR Lave-Linge COMPLET
Position: 119
Indicative price: 132.79 €
FLASQUE Lave-Linge CUVE
FLASQUE Lave-Linge CUVE
Position: 134
Indicative price: 116.42 €
JOINT Lave-Linge HUBLOT
JOINT Lave-Linge HUBLOT
Position: 137
Indicative price: 43.19 €
COURROIE Lave-Linge 1250H7EL
COURROIE Lave-Linge 1250H7EL
Position: 144
Indicative price: 30.99 €
DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 145
Indicative price: 75.36 €
RESISTANCE Lave-Linge 2000W Avant 07/01
RESISTANCE Lave-Linge 2000W Avant 07/01
Position: 148
Indicative price: 49.77 €
RESISTANCE Lave-Linge AVEC TROU
RESISTANCE Lave-Linge AVEC TROU
Position: 148
Indicative price: 83.3 €
DURITE Lave-Linge CUVE/POMPE
DURITE Lave-Linge CUVE/POMPE
Position: 173
Indicative price: 54.29 €
PLINTHE Lave-Linge
PLINTHE Lave-Linge
Position: 402
Indicative price: 46.06 €
CHARNIERE Lave-Linge
CHARNIERE Lave-Linge
Position: 405
Indicative price: 51.91 €
SECURITE Lave-Linge PORTE ZV-446 M2 ZV446M2
SECURITE Lave-Linge PORTE ZV-446 M2 ZV446M2
Position: 407
Indicative price: 25.77 €
Contre porte Lave-Linge PORTE
Contre porte Lave-Linge PORTE
Position: 410
Indicative price: 83.36 €
POIGNEE Lave-Linge HUBLOT
POIGNEE Lave-Linge HUBLOT
Position: 414
Indicative price: 16.83 €
RESSORT Lave-Linge POIGNEE
RESSORT Lave-Linge POIGNEE
Position: 415
Indicative price: 18.98 €
Interrupteur Lave-Linge 1T M/A
Interrupteur Lave-Linge 1T M/A
Position: 419
Indicative price: 52.72 €
Interrupteur Lave-Linge 1T
Interrupteur Lave-Linge 1T
Position: 419
Indicative price: 26.58 €
Programmateur Lave-Linge 0834/2 ELBI
Programmateur Lave-Linge 0834/2 ELBI
Position: 421
Indicative price: 120.76 €
FACADE Lave-Linge TIROIR
FACADE Lave-Linge TIROIR
Position: 425
Indicative price: 69.61 €
THERMOSTAT Lave-Linge REGLABLE AV18-2001
THERMOSTAT Lave-Linge REGLABLE AV18-2001
Position: 433
Indicative price: 72.2 €
THERMOSTAT Lave-Linge REGLABLE AP18-2001
THERMOSTAT Lave-Linge REGLABLE AP18-2001
Position: 433
Indicative price: 91.3 €
MANETTE Lave-Linge TEMP
MANETTE Lave-Linge TEMP
Position: 446
Indicative price: 50.32 €
VARIATEUR Lave-Linge ESSOR AXE COURT
VARIATEUR Lave-Linge ESSOR AXE COURT
Position: 456
Indicative price: 65.18 €
