Exploded view lave vaisselle LADEN AFE1B16 859991010540
Discover the complete exploded view lave vaisselle LADEN AFE1B16 859991010540, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave vaisselle. Quickly find the parts you need to extend the life of your lave vaisselle LADEN AFE1B16 859991010540 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
ECROU Lave-Vaisselle
Position: 2
Indicative price: 14.93 €
SECURITE Lave-Vaisselle ANTIDEBORDEMENT
Position: 2
Indicative price: 32.98 €
SERRURE Lave-Vaisselle PORTE
Position: 3
Indicative price: 32.66 €
PLATINE Lave-Vaisselle COMMANDE
Position: 5
Indicative price: 76.41 €
SUPPORT Lave-Vaisselle BRAS Supérieur
Position: 6
Indicative price: 20.83 €
CONDENSATEUR Lave-Vaisselle ANTIPARASITE PLMFL10027031 1UF(K2) +2.27nF
Position: 7
Indicative price: 36.94 €
BRAS Lave-Vaisselle SUPERIEUR
Position: 7
Indicative price: 36.84 €
MANETTE Lave-Vaisselle Blanc
Position: 7
Indicative price: 26.26 €
BAGUE Lave-Vaisselle BRAS Supérieur
Position: 8
Indicative price: 13.37 €
BRAS Lave-Vaisselle INFERIEUR
Position: 9
Indicative price: 16.45 €
CHARNIERE Lave-Vaisselle DROITE PORTE
Position: 9
Indicative price: 43.73 €
CHARNIERE Lave-Vaisselle PORTE GAUCHE
Position: 11
Indicative price: 31.92 €
PLATINE Lave-Vaisselle PUISSANCE
Position: 12
Indicative price: 190.15 €
Programmateur Lave-Vaisselle PLP2
Position: 12
Indicative price: 172.4 €
CLAPET Lave-Vaisselle ANTIRETOUR
Position: 15
Indicative price: 8.74 €
BOITIER TEST TROUBLE NTC MARQUAR
Position: 16
Indicative price: 24.48 €
BUTEE Lave-Vaisselle ARRIERE PANIER
Position: 17
Indicative price: 4.93 €
POMPE Lave-Vaisselle VIDANGE
Position: 17
Indicative price: 57.2 €
BOL Lave-Vaisselle FOND CUVE + JOINT
Position: 18
Indicative price: 47.91 €
SYSTèME Lave-Vaisselle ANTI-DEBORDEMENT
Position: 19
Indicative price: 15.19 €
TUYAU Lave-Vaisselle VIDANGE
Position: 20
Indicative price: 15.06 €
JOINT Lave-Vaisselle TOUR DE PORTE 177MM
Position: 20
Indicative price: 27.7 €
MOTEUR Lave-Vaisselle CYCLAGE
Position: 21
Indicative price: 130.67 €
RESISTANCE Lave-Vaisselle + JOINT
Position: 22
Indicative price: 83.38 €
CROCHET Lave-Vaisselle PORTE
Position: 22
Indicative price: 6.97 €
DURITE Lave-Vaisselle BOL/MOTEUR CYCLAGE
Position: 23
Indicative price: 27.26 €
DURITE Lave-Vaisselle RESISTANCE/MOT
Position: 24
Indicative price: 14.57 €
MOTEUR Lave-Vaisselle DISTRIBUTEUR ALTERNE 3 VOIES
Position: 25
Indicative price: 51.88 €
GLISSIERE Lave-Vaisselle SUPPORT VERRE
Position: 26
Indicative price: 8.67 €
JOINT Lave-Vaisselle
Position: 26
Indicative price: 8.43 €
DURITE Lave-Vaisselle AIRBREAK
Position: 27
Indicative price: 15.3 €
Répartiteur remplisseur Lave-Vaisselle
Position: 28
Indicative price: 63.6 €
PANIER Lave-Vaisselle SUPERIEUR
Position: 28
Indicative price: 67.34 €
PANIER Lave-Vaisselle INFERIEUR
Position: 29

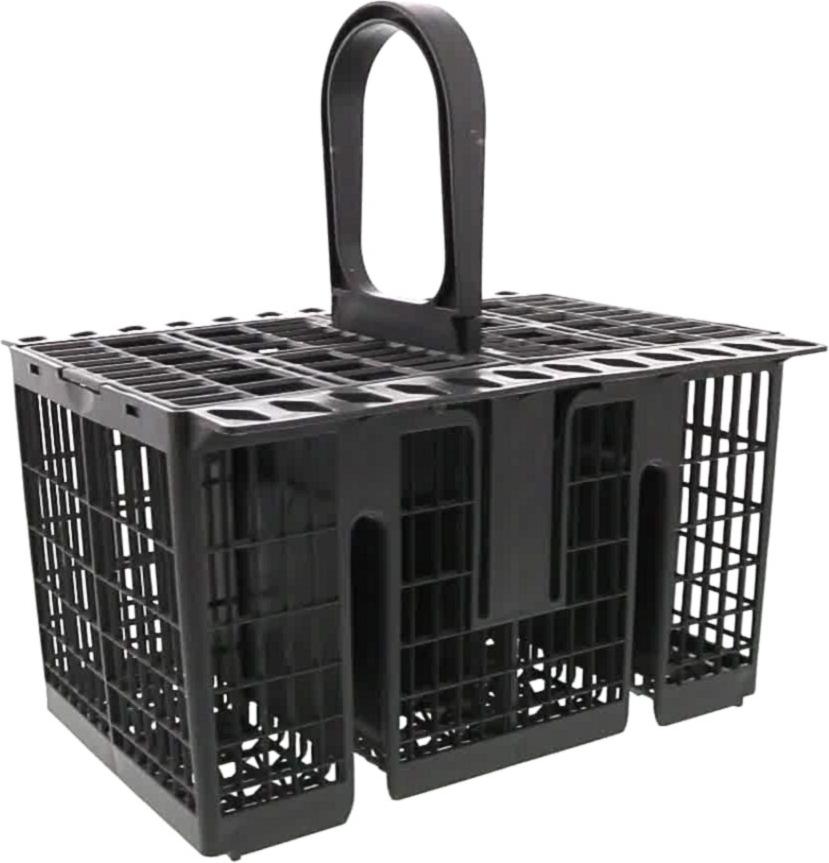

PANIER Lave-Vaisselle COUVERTS GRIS
Position: 30
Indicative price: 37.44 €
BAC Lave-Vaisselle SEL
Position: 30
Indicative price: 57.61 €
JOINT Lave-Vaisselle BAC A SEL 70*54mm
Position: 31
Indicative price: 11.26 €
ENTONNOIR Lave-Vaisselle SEL
Position: 34
Indicative price: 17.34 €
SUPPORT Lave-Vaisselle AQUASTOP
Position: 36
Indicative price: 9.47 €
ELECTROVANNE Lave-Vaisselle 1 VOIE
Position: 38
Indicative price: 20.59 €
COLLIER Lave-Vaisselle PPE LAVAGE SYNC/BRAS D=38,1
Position: 99
Indicative price: 7.22 €
COLLIER Lave-Vaisselle PUITS/PPE LAVAGE
Position: 99
Indicative price: 7.88 €
SERRE Lave-Vaisselle TUBE D=14,9
Position: 99
Indicative price: 9.36 €
