Exploded view réfrigérateur BEKO RSSA250K20S 7521920006

Discover the complete exploded view réfrigérateur BEKO RSSA250K20S 7521920006, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur BEKO RSSA250K20S 7521920006 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

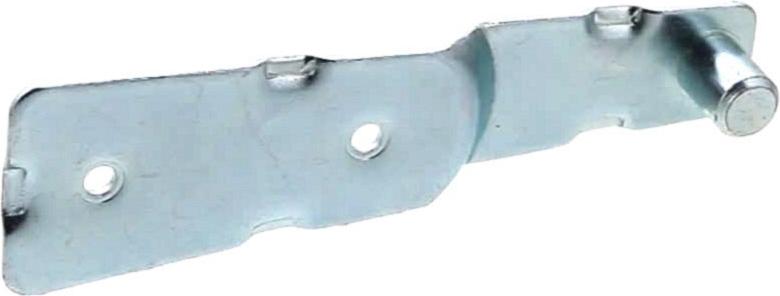

CHARNIERE Froid Sup
CHARNIERE Froid Sup
Position: 14
Indicative price: 15.06 €
COMPRESSEUR Froid TG1112Y
COMPRESSEUR Froid TG1112Y
Position: 30
Indicative price: 106.52 €

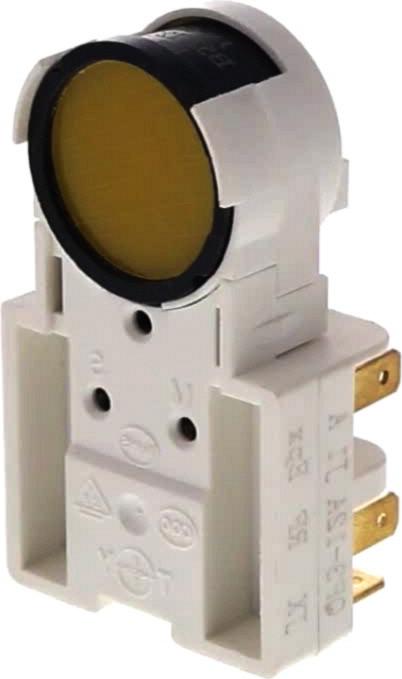

RELAIS Froid DEMARRAGE
RELAIS Froid DEMARRAGE
Position: 39
Indicative price: 57.2 €
PORTE Froid FREEZER 443*200 (222mm avec axes)
PORTE Froid FREEZER 443*200 (222mm avec axes)
Position: 58
Indicative price: 64.51 €
PIED Froid ARRIERE
PIED Froid ARRIERE
Position: 80
Indicative price: 6.3 €

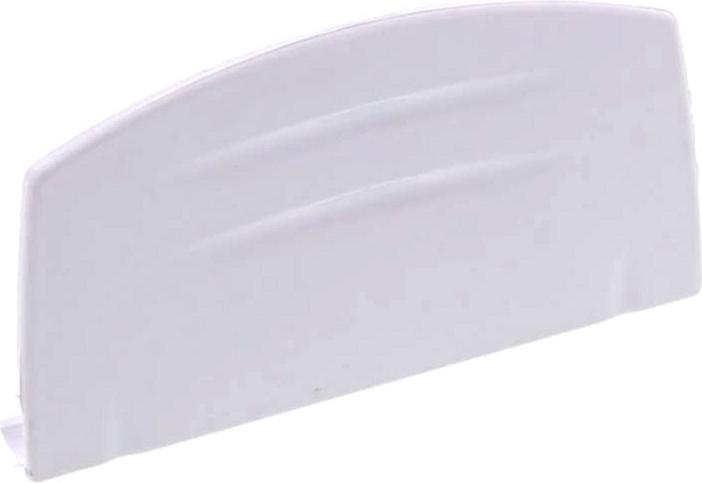

POIGNEE Froid PORTE FREEZER
POIGNEE Froid PORTE FREEZER
Position: 82
Indicative price: 14.27 €

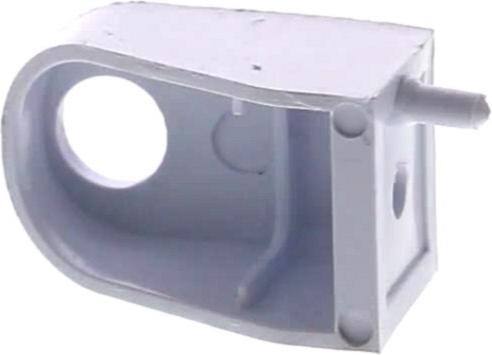

CHARNIERE Froid PORTILLON FREEZER
CHARNIERE Froid PORTILLON FREEZER
Position: 94
Indicative price: 9.34 €

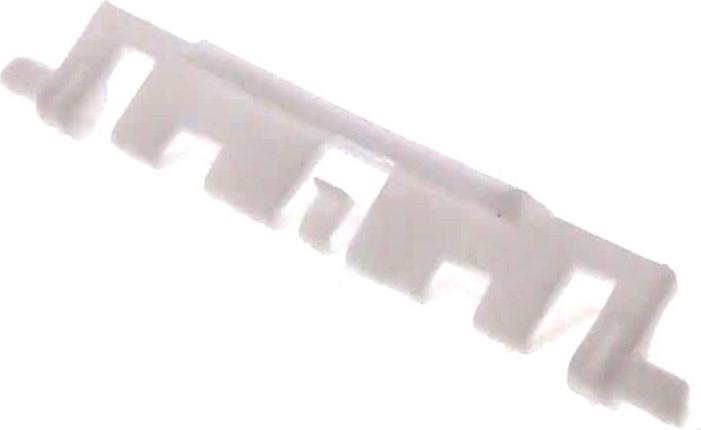

AXE Froid POIGNEE Porte FREEZER
AXE Froid POIGNEE Porte FREEZER
Position: 98
Indicative price: 9.74 €

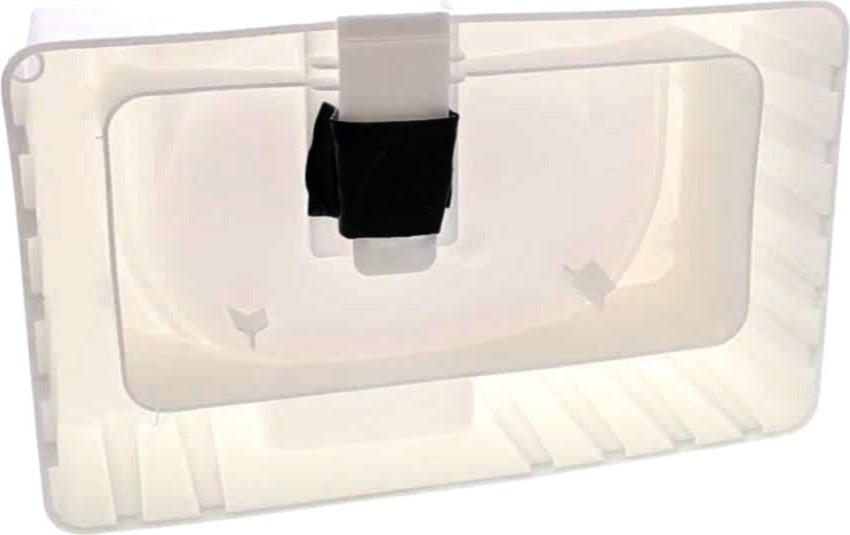

BAC Froid COMPRESSEUR
BAC Froid COMPRESSEUR
Position: 132
Indicative price: 28.67 €
BALCONNET Froid CENTRAL TRANSPARENT BLEU 430*50*108 463802
BALCONNET Froid CENTRAL TRANSPARENT BLEU 430*50*108 463802
Position: 254
Indicative price: 34.07 €
BALCONNET Froid BOUTEILLES TRANSPARENT BLEU 426*89*108
BALCONNET Froid BOUTEILLES TRANSPARENT BLEU 426*89*108
Position: 255
Indicative price: 40.31 €
Interrupteur Froid LUMIERE
Interrupteur Froid LUMIERE
Position: 633
Indicative price: 15.25 €
SUPPORT Froid FIXATION CONDENSEUR PARTIE 1
SUPPORT Froid FIXATION CONDENSEUR PARTIE 1
Position: 698
Indicative price: 4.51 €

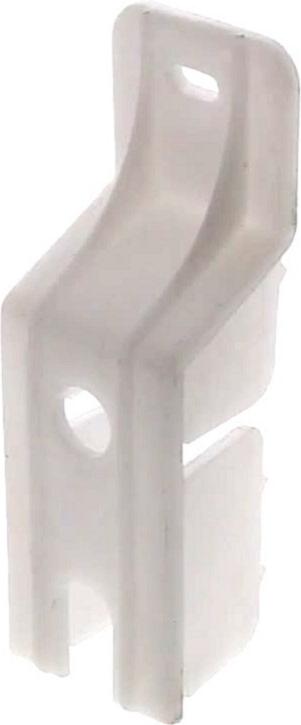

SUPPORT Froid FIXATION CONDENSEUR PARTIE 2
SUPPORT Froid FIXATION CONDENSEUR PARTIE 2
Position: 699
Indicative price: 4.4 €
PROFIL Froid AVANT CLAYETTE
PROFIL Froid AVANT CLAYETTE
Position: 861
Indicative price: 22.74 €
THERMOSTAT Froid Réfrigérateur KDF30B1
THERMOSTAT Froid Réfrigérateur KDF30B1
Position: 1218
Indicative price: 51.88 €
PLATINE Froid ECLAIRAGE
PLATINE Froid ECLAIRAGE
Position: 1232
Indicative price: 29.86 €
JOINT Froid PORTE 1330*530
JOINT Froid PORTE 1330*530
Position: 2391
Indicative price: 62.99 €

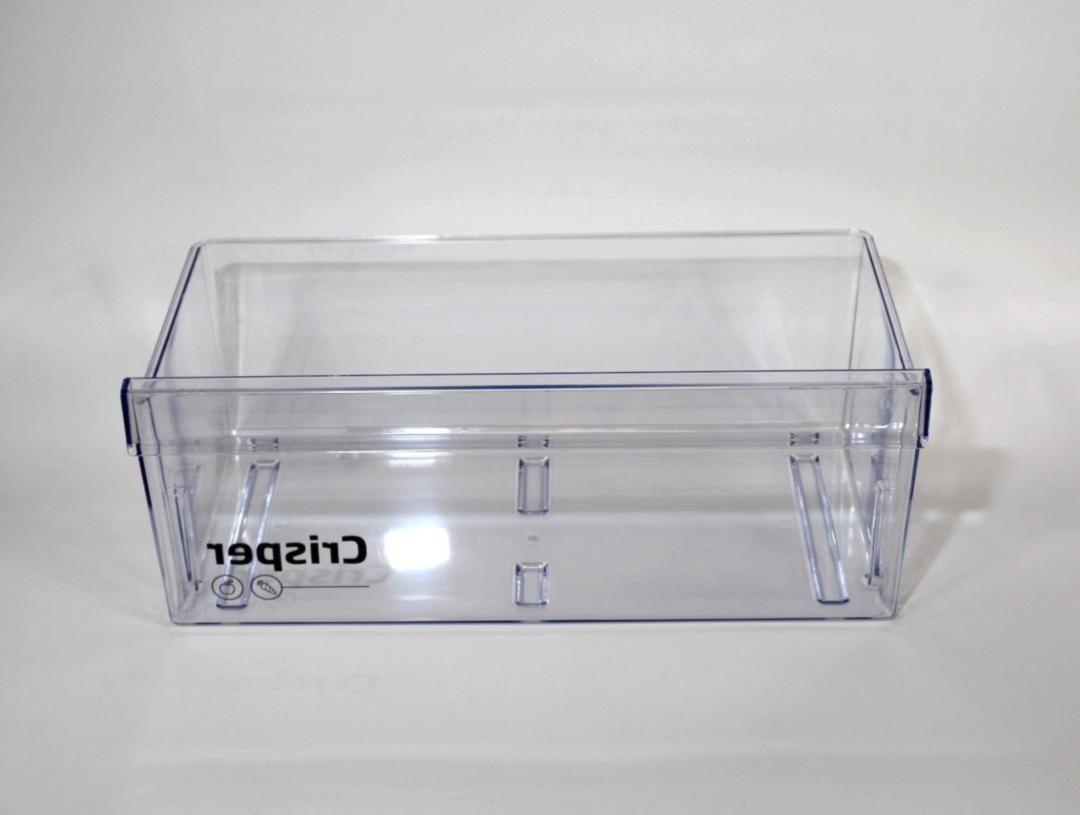

BAC Froid LEGUMES TRANSPARENT CLAIR 443*180* 463817-1
BAC Froid LEGUMES TRANSPARENT CLAIR 443*180* 463817-1
Position: 2553
Indicative price: 94.28 €
PROFIL Froid ARRIERE CLAYETTE
PROFIL Froid ARRIERE CLAYETTE
Position: 2555
Indicative price: 26.79 €
CLAYETTE Froid COMPLETE 447*303
CLAYETTE Froid COMPLETE 447*303
Position: 2563
Indicative price: 40.81 €
DESSUS Froid BAC LEGUMES + PROFIL 446*270
DESSUS Froid BAC LEGUMES + PROFIL 446*270
Position: 2564
Indicative price: 35.04 €
PLAFONNIER Froid LED
PLAFONNIER Froid LED
Position: 2573
Indicative price: 25.53 €

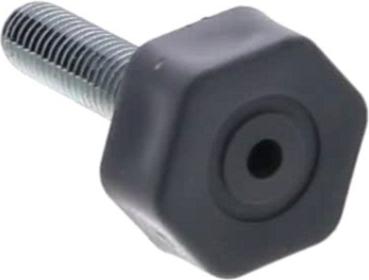

PIED Froid AVANT
PIED Froid AVANT
Position: 3188
Indicative price: 10.21 €

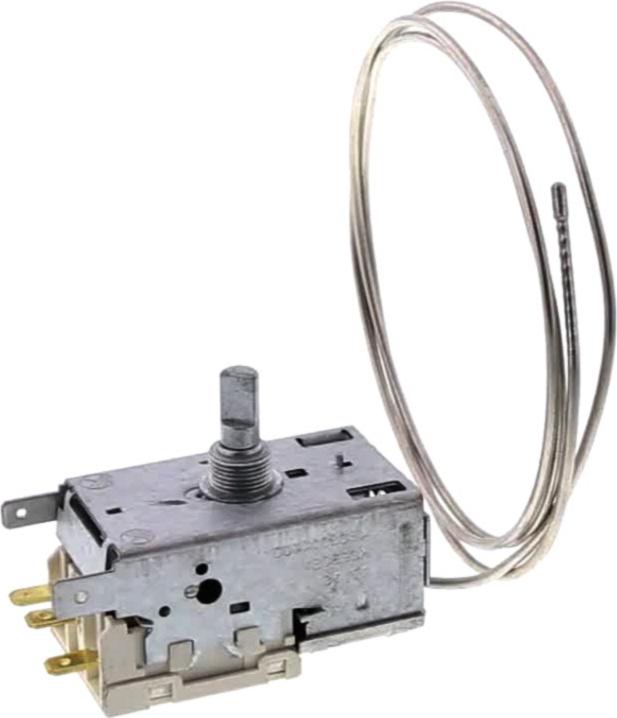

Thermostat Froid K59-L2683
Thermostat Froid K59-L2683
Position: 3951
Indicative price: 53.75 €
