Exploded view lave linge BEKO LLF08W7 7111641800
Discover the complete exploded view lave linge BEKO LLF08W7 7111641800, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO LLF08W7 7111641800 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
POIGNEE Lave-Linge HUBLOT
Position: 9
Indicative price: 9.57 €
HUBLOT Lave-Linge COMPLET
Position: 10
Indicative price: 108.93 €
HUBLOT Lave-Linge VERRE D325MM H90 2 ENCOCHES
Position: 11
Indicative price: 48.83 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 24.59 €
CHARNIERE Lave-Linge HUBLOT METAL
Position: 14
Indicative price: 30.14 €
CHARNIERE Lave-Linge HUBLOT PLASTIQUE 130MM (entraxe 115mm)
Position: 14
Indicative price: 29.64 €
PIED Lave-Linge AVANT M10
Position: 18
Indicative price: 8.9 €
VIS Lave-Linge BRIDAGE
Position: 20
Indicative price: 13.21 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 5.9 €
COLLIER Froid
Position: 33
Indicative price: 8.26 €
JOINT Lave-Linge HUBLOT
Position: 54
Indicative price: 39.8 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 9.24 €

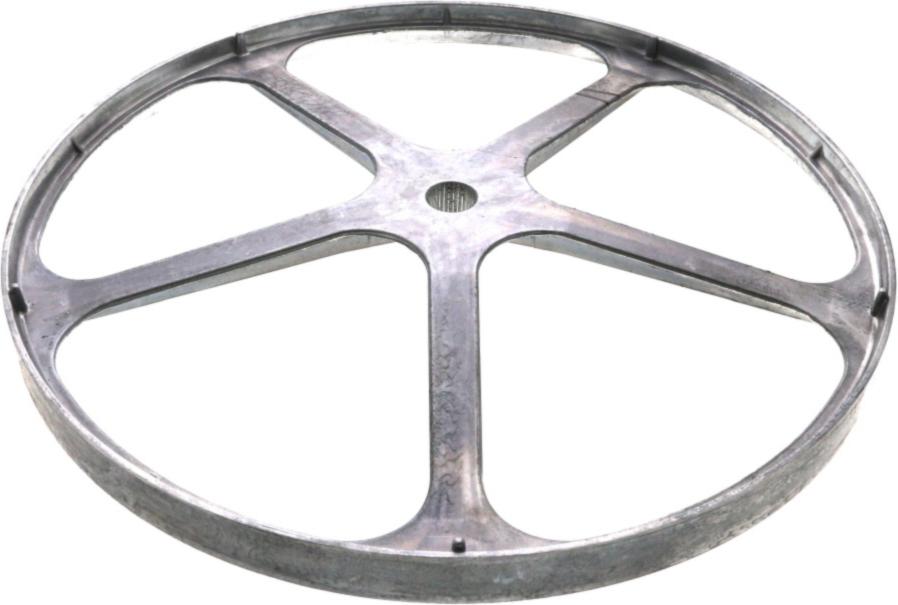

POULIE Lave-Linge
Position: 56
Indicative price: 40.2 €
COURROIE Lave-Linge 1244J5EL 1244J4EL
Position: 59
Indicative price: 30.35 €
COURROIE Lave-Linge 1244J5EL
Position: 59
Indicative price: 33.46 €
MOTEUR Lave-Linge
Position: 63
Indicative price: 160.94 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 31.19 €
AXE Lave-Linge Supérieur AMORTISSEUR
Position: 78
Indicative price: 5.59 €
VIS Lave-Linge Contre-poids SUPERIEUR
Position: 80
Indicative price: 12.51 €
FIXATION Lave-Linge TUYAU VIDANGE
Position: 93
Indicative price: 7.04 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 24.21 €

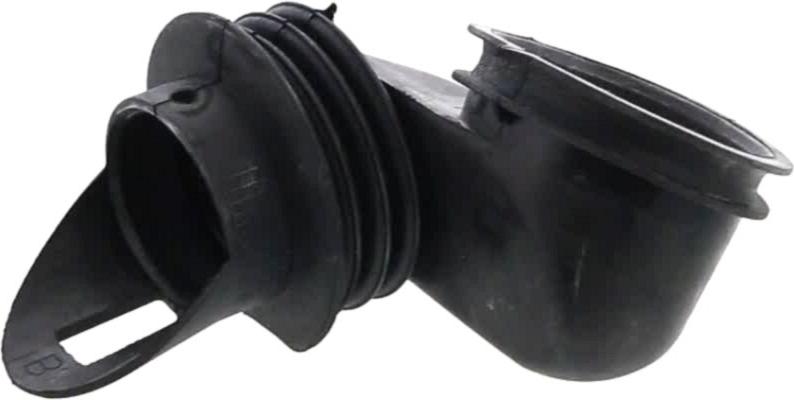

DURITE Lave-Linge BOITE/CUVE
Position: 117
Indicative price: 25.35 €

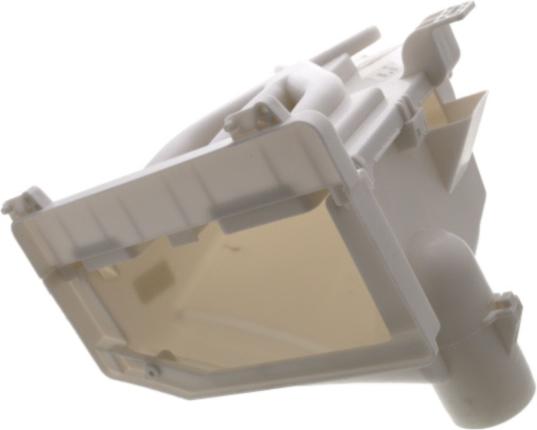

BOITE Lave-Linge PRODUITS
Position: 146
Indicative price: 33.08 €

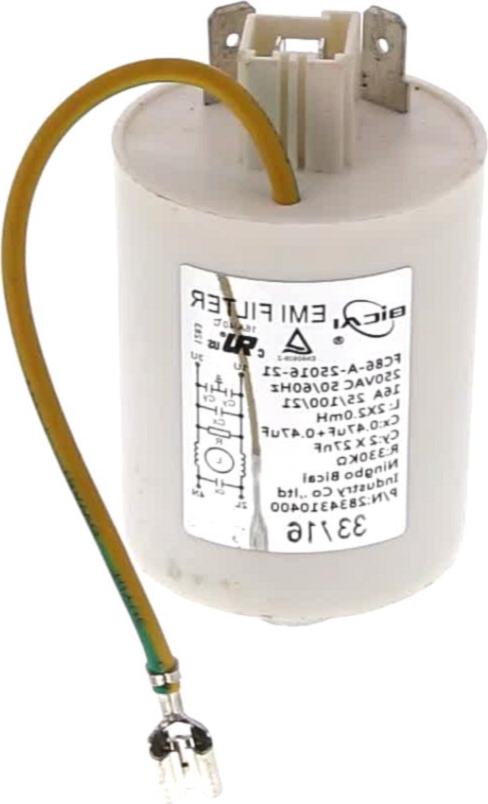

FILTRE Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 38.11 €
CONDENSATEUR Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 45.04 €
CABLAGE Lave-Linge
Position: 166
Indicative price: 96.5 €
CABLE Lave-Linge ALIMENTATION
Position: 169
Indicative price: 21.83 €
Pompe de vidange Lave-Linge VIDANGE B15-6AZ 34W
Position: 194
Indicative price: 39.32 €
MANETTE Lave-Linge PROGRAMMATEUR
Position: 203
Indicative price: 25.75 €
COLLIER Lave-Linge HUBLOT JOINT/FACADE 316MM
Position: 230
Indicative price: 5.89 €
BOITE Lave-Linge LESSIVE
Position: 336
Indicative price: 36.43 €
CROCHET Lave-Linge PORTE
Position: 341
Indicative price: 11.61 €
TUYAU Lave-Linge VIDANGE
Position: 373
Indicative price: 23.24 €
FACADE Lave-Linge AVANT
Position: 401
Indicative price: 74.27 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 9.53 €
COLLIER Lave-Linge DURITE Electrovanne
Position: 552
Indicative price: 4.93 €
DURITE Lave-Linge VIDANGE
Position: 553
Indicative price: 14.67 €
BOUCHON Lave-Linge POMPE DE VIDANGE + JOINT
Position: 598
Indicative price: 13.39 €
ISOLATION Lave-Linge DROITE ou GAUCHE
Position: 617
Indicative price: 27.51 €
VIS Sèche-Linge AXE PALIER
Position: 658
Indicative price: 5.88 €
BOUCHON Lave-Linge DURITE VIDANGE
Position: 677
Indicative price: 10.53 €
ELECTROVANNE Lave-Linge 2 VOIES 180°
Position: 737
Indicative price: 27.13 €

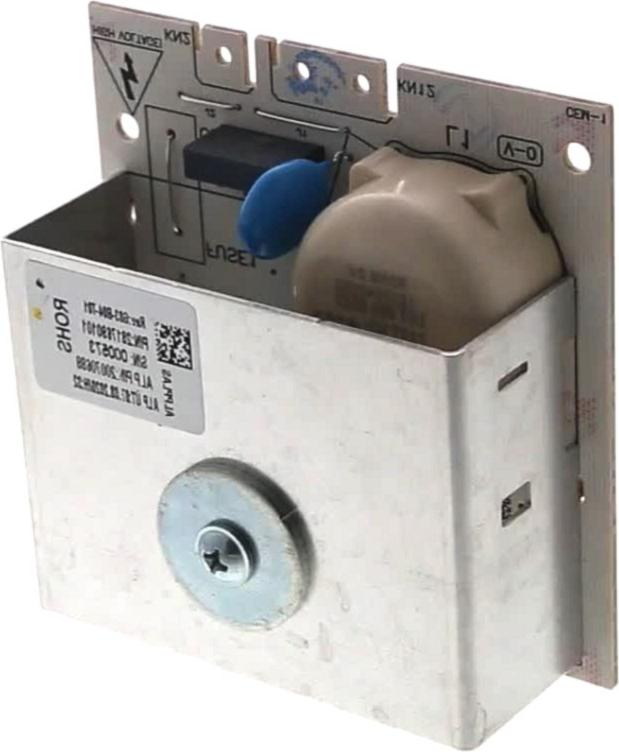

PLATINE Lave-Linge PUISSANCE
Position: 748
Indicative price: 87.58 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 6.4 €
TUYAU Lave-Linge ELECTROVANNE / BOITE A PRODUIT
Position: 1109
Indicative price: 40.42 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 36.13 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 25.94 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 27.86 €

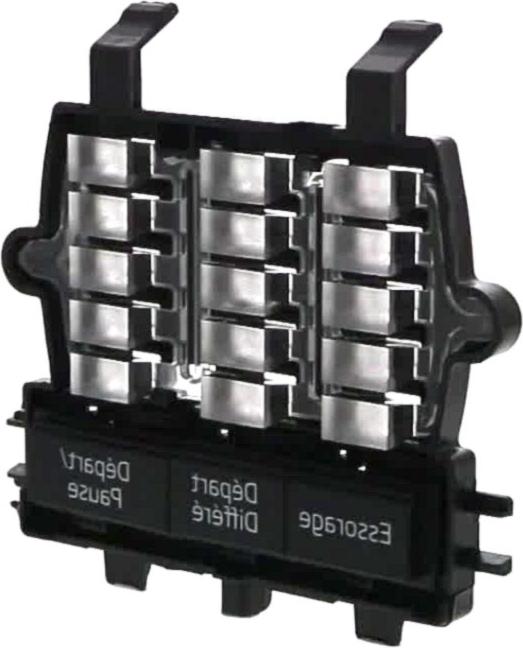

BOUTON Lave-Linge ENSEMBLE
Position: 1396
Indicative price: 26.47 €
AXE Lave-Linge AMORTISSEUR
Position: 1442
Indicative price: 7.66 €
TRAPPE Lave-Linge VIDANGE
Position: 1585
Indicative price: 9.34 €
PRESSOSTAT Lave-Linge
Position: 1640
Indicative price: 34.35 €
COLLIER Lave-Linge
Position: 1686
Indicative price: 7.04 €
AXE Lave-Linge PROGRAMMATEUR
Position: 1740
Indicative price: 16.91 €
ENTRETOISE Lave-Linge AXE MANETTE Programmateur
Position: 1741
Indicative price: 5.85 €

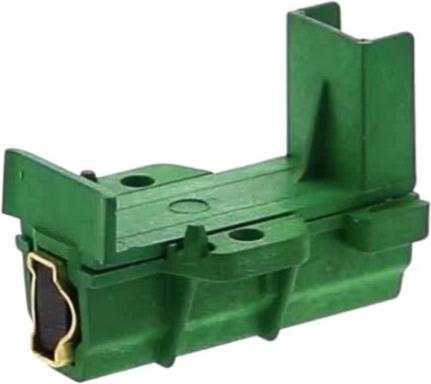

CHARBON Lave-Linge MOTEUR " lot de 2 "
Position: 8331
Indicative price: 36.72 €

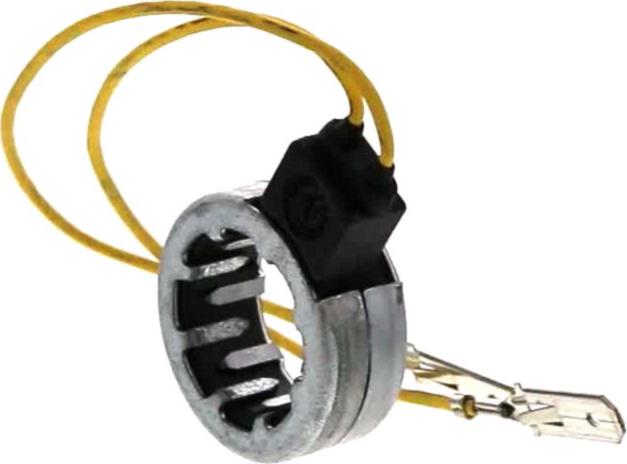

TACHYMETRE Lave-Linge
Position: 8335
Indicative price: 20.72 €
CACHE Lave-Linge TACHYMETRIE
Position: 8336
Indicative price: 7.13 €
COLLIER Lave-Linge DURITE CUVE
Position: 8355
Indicative price: 4.23 €
VIS Lave-Linge
Position: 8384
Indicative price: 4.93 €
VIS Lave-Linge CHARNIERE
Position: 8396
Indicative price: 5.68 €
COLLIER Lave-Linge DURITE
Position: 8430
Indicative price: 4.86 €
