Exploded view lave linge BEKO WDR7543121W 7161541500
Discover the complete exploded view lave linge BEKO WDR7543121W 7161541500, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO WDR7543121W 7161541500 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
AXE Lave-Linge POIGNEE HUBLOT
Indicative price: 6.89 €
EMBOUT Lave-Linge AXE CHARNIERE
Indicative price: 5.42 €

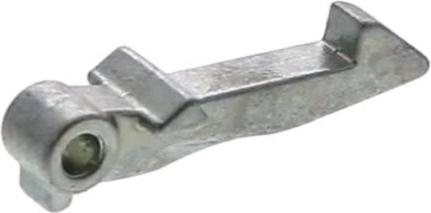

CROCHET Lave-Linge HUBLOT LG 43.60MM
Indicative price: 9.85 €
RESSORT Lave-Linge CROCHET
Indicative price: 8.59 €
Contre porte Lave-Linge HUBLOT
Indicative price: 30.78 €

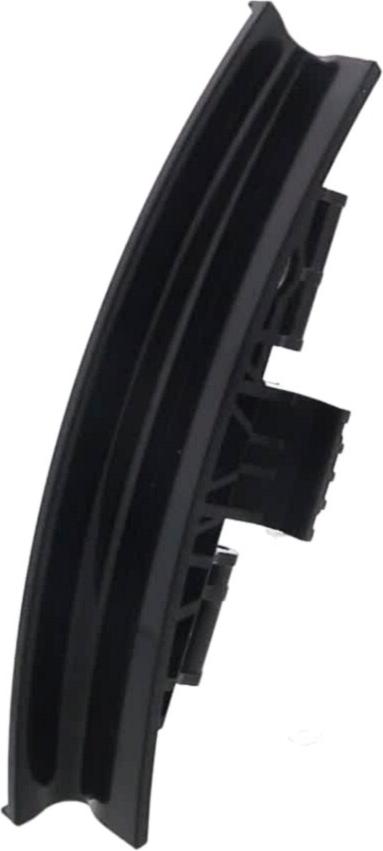

POIGNEE Lave-Linge HUBLOT
Position: 9
Indicative price: 21.69 €
HUBLOT Lave-Linge VERRE D363MM 3 GRANDES ENCOCHES
Position: 11
Indicative price: 51.07 €
SECURITE Lave-Linge PORTE ZV-446
Position: 13
Indicative price: 34.08 €
CHARNIERE Lave-Linge HUBLOT
Position: 14
Indicative price: 34.13 €
CHARNIERE Lave-Linge HUBLOT
Position: 14
Indicative price: 33.21 €
PIED Lave-Linge AVANT M10
Position: 18
Indicative price: 9.19 €
VIS Lave-Linge BRIDAGE UNITAIRE
Position: 20
Indicative price: 12.85 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 5.65 €
COLLIER Froid
Position: 33
Indicative price: 7.56 €
RESSORT Lave-Linge CUVE
Position: 53
Indicative price: 17.56 €
JOINT Lave-Linge HUBLOT
Position: 54
Indicative price: 79.69 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 9.22 €
POULIE Lave-Linge TAMBOUR 260MM
Position: 56
Indicative price: 39.28 €
COURROIE Lave-Linge 1171J5EL
Position: 59
Indicative price: 22.42 €
MOTEUR Lave-Linge 15835
Position: 63
Indicative price: 129.76 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 24.96 €
AXE Lave-Linge Supérieur AMORTISSEUR
Position: 78
Indicative price: 5.78 €
VIS Lave-Linge Contre-poids SUPERIEUR
Position: 80
Indicative price: 10.89 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 25.56 €
FILTRE Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 38.39 €
CONDENSATEUR Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 46.09 €
POMPE Lave-Linge VIDANGE
Position: 194
Indicative price: 43.3 €
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE
Position: 230
Indicative price: 20.58 €
BOITE Lave-Linge LESSIVE
Position: 336
Indicative price: 33.77 €
TUYAU Lave-Linge VIDANGE
Position: 373
Indicative price: 22.2 €
FACADE Lave-Linge
Position: 401
Indicative price: 78.23 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 8.33 €
ELECTROVANNE Lave-Linge 3 VOIES
Position: 428
Indicative price: 77.87 €
BOUCHON Lave-Linge POMPE DE VIDANGE + JOINT
Position: 598
Indicative price: 13.19 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 598
CACHE Lave-Linge SECURITE DE PORTE
Position: 953
Indicative price: 16.18 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 5.57 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 33.89 €
PLATINE Lave-Linge MOTEUR SW_V114_32_950 G07-B11
Position: 1251
Indicative price: 127.9 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 31.72 €
AXE Lave-Linge AMORTISSEUR
Position: 1442
Indicative price: 8.88 €
SONDE Sèche-Linge CTN
Position: 1457
Indicative price: 18.51 €
THERMOSTAT Lave-Linge REARMABLE
Position: 1570
Indicative price: 17.87 €
PRESSOSTAT Lave-Linge
Position: 1640
Indicative price: 44.64 €

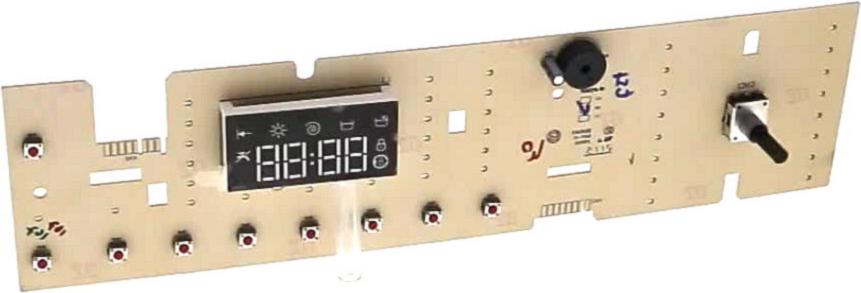

PLATINE Lave-Linge AFFICHAGE
Position: 1661
Indicative price: 127.14 €
COLLIER Lave-Linge
Position: 1686
Indicative price: 7.53 €
RESISTANCE Lave-Linge SECHAGE
Position: 1714
Indicative price: 177.29 €
RESISTANCE Lave-Linge
Position: 1731
Indicative price: 43.58 €
JOINT Lave-Linge CONDENSEUR
Position: 1824
Indicative price: 18.15 €
COLLIER Lave-Linge DURITE CUVE
Position: 8355
Indicative price: 4.13 €
COLLIER Lave-Linge DURITE
Position: 8430
Indicative price: 4.6 €
