Exploded view lave linge BEKO WMD78120 7134381300
Discover the complete exploded view lave linge BEKO WMD78120 7134381300, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO WMD78120 7134381300 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 94.35 €
POIGNEE Lave-Linge HUBLOT
Position: 9
Indicative price: 19.65 €
HUBLOT Lave-Linge VERRE D363MM 3 GRANDES ENCOCHES
Position: 11
Indicative price: 51.52 €
Contre porte Lave-Linge HUBLOT
Position: 12
Indicative price: 23.58 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 19.48 €
CHARNIERE Lave-Linge HUBLOT
Position: 14
Indicative price: 28.36 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 16
PIED Lave-Linge AVANT M10
Position: 18
Indicative price: 8.94 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 5.57 €
VIS Lave-Linge CHARNIERE
Position: 39
Indicative price: 6.03 €
RESSORT Lave-Linge CUVE 16 STRIES 182MM
Position: 53
Indicative price: 16.57 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 9.4 €
POULIE Lave-Linge
Position: 56
Indicative price: 41.82 €
COURROIE Lave-Linge 1244J5EL 1244J4EL
Position: 59
Indicative price: 30.22 €
MOTEUR Lave-Linge
Position: 63
Indicative price: 128.41 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 29.73 €
SUPPORT Lave-Linge AMORTISSEUR
Position: 78
Indicative price: 5.92 €
VIS Lave-Linge Contre-poids
Position: 80
Indicative price: 12.16 €
FIXATION Lave-Linge TUYAU VIDANGE
Position: 93
Indicative price: 5.72 €
SYPHON Lave-Linge
Position: 99
Indicative price: 10.52 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 15.28 €
DURITE Lave-Linge BOITE CUVE
Position: 117
Indicative price: 28.76 €
BOUCHON Lave-Linge FILTRE
Position: 134
Indicative price: 16.77 €
VIS Lave-Linge
Position: 140
Indicative price: 4.79 €
BOITE Lave-Linge PRODUIT INF+SUP
Position: 146
Indicative price: 56 €
Contre-poids Lave-Linge Inférieur
Position: 149
Indicative price: 65.6 €
CONDENSATEUR Lave-Linge ANTIPARASITE 1.0UF (X1)+470K 2X0.022UF(Y2)+2X1MH
Position: 162
Indicative price: 41.76 €
CABLE Lave-Linge ALIMENTATION
Position: 169
Indicative price: 47.5 €
PRESSOSTAT Lave-Linge SPS-A03E
Position: 170
Indicative price: 29.11 €
Interrupteur Lave-Linge 1T 4C M/A
Position: 180
Indicative price: 20.95 €
MODULE Lave-Linge
Position: 186
Indicative price: 143.33 €
TIROIR Lave-Linge BAC PRODUIT
Position: 336
Indicative price: 35.53 €
RESSORT Lave-Linge POIGNEE HUBLOT
Position: 340
Indicative price: 7.79 €
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 341
Indicative price: 6.47 €
AXE Lave-Linge POIGNEE HUBLOT
Position: 342
Indicative price: 7.1 €
PLINTHE Lave-Linge
Position: 365
Indicative price: 30.61 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 7.89 €
VIS Lave-Linge
Position: 415
Indicative price: 2.42 €
COLLIER Lave-Linge DURITE CUVE
Position: 453
Indicative price: 3.86 €
FILTRE Lave-Vaisselle ARRIVEE EAU
Position: 469
Indicative price: 14.13 €

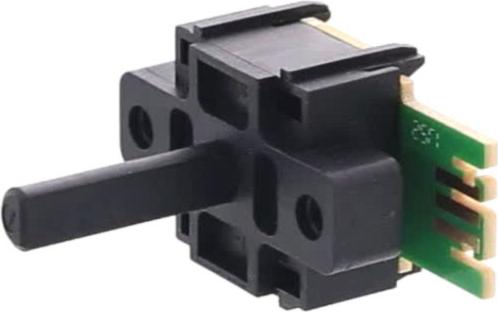

COMMUTATEUR Lave-Linge Programmateur
Position: 481
Indicative price: 30.89 €
COLLIER Lave-Linge DURITE Electrovanne
Position: 552
Indicative price: 4.74 €
DURITE Lave-Linge VIDANGE
Position: 553
Indicative price: 17.96 €

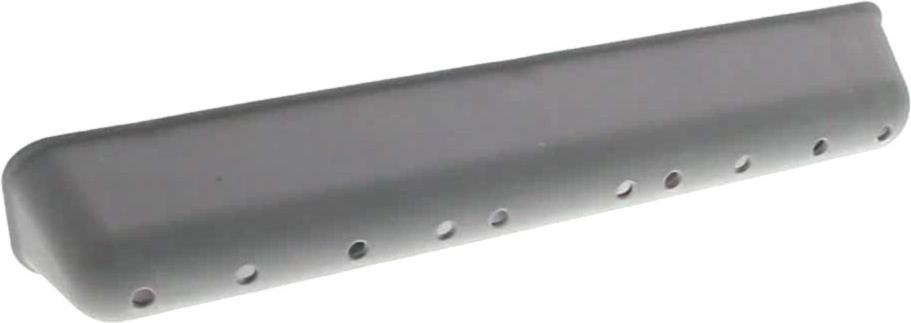

Batteur Lave-Linge TAMBOUR 282mm
Position: 584
Indicative price: 17.87 €
PLINTHE Lave-Linge ACCE Pompe de vidange
Position: 672
Indicative price: 26.1 €
TACHYMETRE Lave-Linge
Position: 736
Indicative price: 28.93 €
Electrovanne Lave-Linge 2 VOIES 180°
Position: 737
Indicative price: 44.85 €
PLATINE Lave-Linge PUISSANCE
Position: 748
Indicative price: 79.74 €
CHARBON Lave-Linge MOTEUR "lot de 2"
Position: 762
Indicative price: 36.44 €
CACHE Lave-Linge TACHYMETRIE
Position: 771
Indicative price: 7.2 €
CACHE Lave-Linge SECURITE DE PORTE
Position: 953
Indicative price: 16.01 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 5.59 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 24.96 €
Pompe de vidange Lave-Linge VIDANGE
Position: 1224
Indicative price: 84 €
SUPPORT Lave-Linge
Position: 1232
Indicative price: 11.91 €
CUVE Lave-Linge COMPLETE
Position: 1363
Indicative price: 231.27 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 31.08 €
RESISTANCE Lave-Linge
Position: 1384
Indicative price: 30.4 €
FILTRE Lave-Linge Pompe de vidange
Position: 1438
Indicative price: 22.3 €
AXE Lave-Linge AMORTISSEUR
Position: 1442
Indicative price: 9.68 €
JOINT Lave-Linge HUBLOT
Position: 1445
Indicative price: 75.35 €
BORNIER Lave-Linge
Position: 1451
Indicative price: 19.22 €
