Exploded view lave linge BEKO WTV1744X1WAQDOS 7163345700
Discover the complete exploded view lave linge BEKO WTV1744X1WAQDOS 7163345700, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO WTV1744X1WAQDOS 7163345700 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 71.93 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 46.36 €
PIED Lave-Linge AVANT M10
Position: 18
Indicative price: 9.73 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 5.57 €
COLLIER Froid
Position: 33
Indicative price: 7.72 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 9.1 €
POULIE Lave-Linge TAMBOUR 260MM
Position: 56
Indicative price: 44.15 €
COURROIE Lave-Linge 1171J5EL
Position: 59
Indicative price: 20.88 €
MOTEUR Lave-Linge 15835
Position: 63
Indicative price: 128.37 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 28.14 €
SUPPORT Lave-Linge AMORTISSEUR
Position: 78
Indicative price: 5.37 €
AXE Lave-Linge Supérieur AMORTISSEUR
Position: 78
Indicative price: 5.83 €
VIS Lave-Linge Contre-poids SUPERIEUR
Position: 80
Indicative price: 11.32 €
FIXATION Lave-Linge TUYAU VIDANGE
Position: 93
Indicative price: 6.26 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 23.57 €
DURITE Lave-Linge BOITE/CUVE
Position: 117
Indicative price: 34.4 €
BOUCHON Lave-Linge FILTRE
Position: 134
Indicative price: 15.04 €
POMPE Lave-Linge VIDANGE
Position: 138
Indicative price: 81.5 €
FILTRE Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 36.88 €
CONDENSATEUR Lave-Linge ANTI PARASITE
Position: 162
Indicative price: 44.07 €
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE
Position: 230
Indicative price: 17.89 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 8.65 €
COLLIER Lave-Linge DURITE Electrovanne
Position: 552
Indicative price: 4.78 €
DURITE Lave-Linge VIDANGE
Position: 553
Indicative price: 17.17 €
BOUCHON Lave-Linge DURITE VIDANGE
Position: 677
Indicative price: 10.56 €

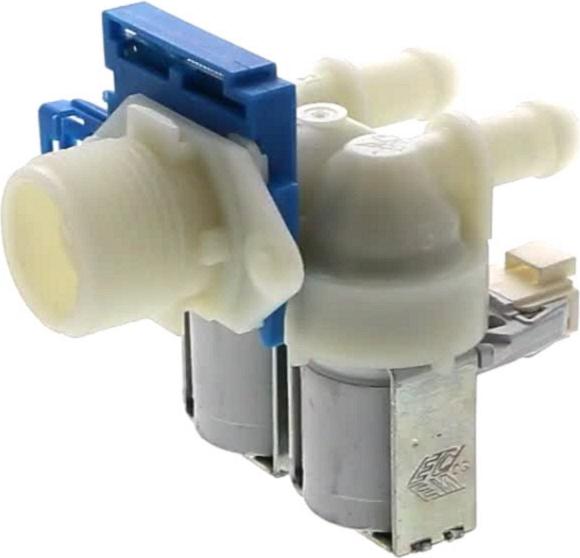

ELECTROVANNE Lave-Linge 2 VOIES +DEBIMETRE BLEU CONNECTION LATERAL
Position: 737
Indicative price: 67.86 €
ELECTROVANNE Lave-Linge 2 VOIES +DEBIMETRE GRIS CONNECTION CENTRAL
Position: 737
Indicative price: 93.23 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 5.2 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 28.71 €
RESISTANCE Lave-Linge 1900W
Position: 1384
Indicative price: 30.52 €
FILTRE Lave-Linge Pompe de vidange
Position: 1438
Indicative price: 23.43 €
AXE Lave-Linge AMORTISSEUR
Position: 1442
Indicative price: 8.84 €
PRESSOSTAT Lave-Linge
Position: 1640
Indicative price: 45.18 €
AMORTISSEUR Lave-Linge
Position: 1646
Indicative price: 34.66 €
COLLIER Lave-Linge
Position: 1686
Indicative price: 7.09 €
TIROIR Lave-Linge PRODUITS
Position: 1870
Indicative price: 211.41 €
BOITE Lave-Linge PRODUIT
Position: 1871
Indicative price: 121.8 €
COLLIER Lave-Linge DURITE CUVE
Position: 8355
Indicative price: 4.8 €
COLLIER Lave-Linge DURITE
Position: 8430
Indicative price: 5 €
