Exploded view lave linge BEKO WMD26120TS 7128481500
Discover the complete exploded view lave linge BEKO WMD26120TS 7128481500, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO WMD26120TS 7128481500 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DESSUS Lave-Linge
Position: 1
Indicative price: 74.82 €
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 82.92 €
POIGNEE Sèche-Linge HUBLOT SEULE
Position: 9
Indicative price: 21.91 €
HUBLOT Lave-Linge COMPLET
Position: 10
Indicative price: 80.21 €
HUBLOT Lave-Linge VERRE D325MM H106MM 2 ERGOTS
Position: 11
Indicative price: 53.04 €
CONTRE PORTE Lave-Linge HUBLOT
Position: 12
Indicative price: 32.93 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 18.58 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 21.15 €
CHARNIERE Lave-Linge HUBLOT
Position: 14
Indicative price: 31.78 €
SUPPORT Lave-Linge CHARNIERE
Position: 16
Indicative price: 14.67 €
PIED Lave-Linge
Position: 18
Indicative price: 10.59 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 6.23 €
SUPPORT Lave-Linge RESSORT SUSPENSION
Position: 38
Indicative price: 7.37 €
VIS Lave-Linge CHARNIERE
Position: 39
Indicative price: 5.79 €
TAMBOUR Lave-Linge
Position: 48
Indicative price: 106.53 €
RESSORT Lave-Linge CUVE 9 STRIES 195MMM
Position: 53
Indicative price: 49.34 €
JOINT Lave-Linge HUBLOT
Position: 54
Indicative price: 37.11 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 14.67 €
POULIE Lave-Linge TAMBOUR AXE CRANTE
Position: 56
Indicative price: 39.83 €
POULIE Lave-Linge TAMBOUR
Position: 56
Indicative price: 44.31 €
POULIE Lave-Linge TAMBOUR
Position: 56
Indicative price: 44.44 €
COURROIE Lave-Linge 1277J5EL
Position: 59
Indicative price: 30.33 €
COURROIE Lave-Linge 1277J4 MAEL
Position: 59
Indicative price: 22.58 €
MOTEUR Lave-Linge
Position: 63
Indicative price: 185.45 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 29.78 €
SUPPORT Lave-Linge AMORTISSEUR
Position: 78
Indicative price: 5.83 €
FIXATION Lave-Linge TUYAU VIDANGE
Position: 93
Indicative price: 5.93 €
SYPHON Lave-Linge
Position: 99
Indicative price: 9.49 €
DURITE Lave-Linge CHAMBRE COMPRESSION
Position: 101
Indicative price: 27.36 €
DURITE Lave-Linge CUVE/POMPE
Position: 105
Indicative price: 46.1 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 15.51 €
DURITE Lave-Linge BOITE CUVE
Position: 117
Indicative price: 28.47 €
VIS Lave-Linge
Position: 140
Indicative price: 4.79 €
JOINT Lave-Linge BOUCHON VIDANGE
Position: 143
Indicative price: 51.61 €
BOITE Lave-Linge PRODUIT INF+SUP
Position: 146
Indicative price: 57.81 €
CONDENSATEUR Lave-Linge ANTIPARASITE 0.47UF +0.47UF 2X27NF
Position: 162
Indicative price: 28.8 €
CONDENSATEUR Lave-Linge ANTIPARASIT 411724910
Position: 162
Indicative price: 35.38 €
CABLAGE Lave-Linge COMPLET
Position: 166
Indicative price: 59.09 €
CABLE Lave-Linge ALIMENTATION
Position: 169
Indicative price: 44.21 €
PRESSOSTAT Lave-Linge SPS-A04F
Position: 170
Indicative price: 33.5 €

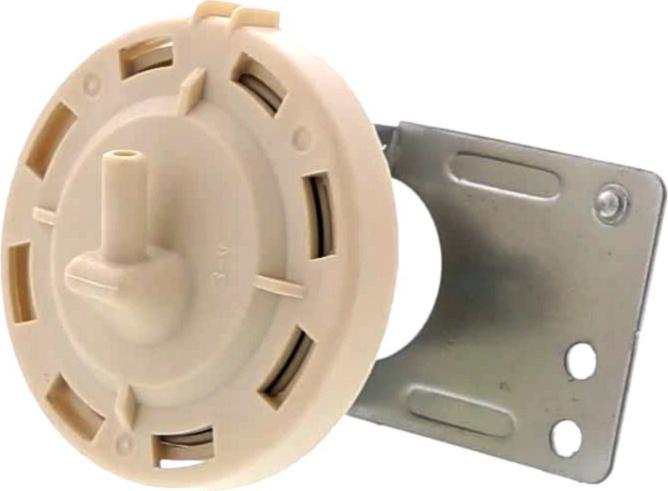

PRESSOSTAT Lave-Linge
Position: 170
Indicative price: 30.48 €
PLATINE Lave-Linge CDE
Position: 186
Indicative price: 145.62 €
Pompe de vidange Lave-Linge
Position: 194
Indicative price: 66 €
MANETTE Lave-Linge ESSORAGE
Position: 201
Indicative price: 15.68 €
MANETTE Lave-Linge Programmateur
Position: 203
Indicative price: 14.98 €
COLLIER Lave-Linge JOINT HUBLOT/MEUBLE
Position: 230
Indicative price: 10.28 €
TIROIR Lave-Linge BAC PRODUIT
Position: 336
Indicative price: 30.99 €
ENJOLIVEUR Lave-Linge HUBLOT
Position: 339
Indicative price: 60.95 €
POIGNEE Lave-Linge HUBLOT COMPLETE
Position: 340
Indicative price: 28.45 €
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 341
Indicative price: 7.31 €
AXE Lave-Linge POIGNEE HUBLOT
Position: 342
Indicative price: 7.3 €
PLINTHE Lave-Linge
Position: 365
Indicative price: 40.5 €
TUYAU Lave-Linge VIDANGE
Position: 373
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 9.36 €
COLLIER Lave-Linge DURITE CUVE
Position: 453
Indicative price: 4.39 €
FILTRE Lave-Vaisselle ARRIVEE EAU
Position: 469
Indicative price: 15.8 €
COLLIER Lave-Linge DURITE Electrovanne
Position: 552
Indicative price: 4.65 €
DURITE Lave-Linge VIDANGE
Position: 553
Indicative price: 15.6 €
Batteur Lave-Linge TAMBOUR
Position: 584
Indicative price: 14.27 €
ECROU Lave-Linge Batteur
Position: 585
Indicative price: 14.77 €
VIS Lave-Linge CROISILLON TAMBOUR M8*40
Position: 586
Indicative price: 9.47 €
FILTRE Lave-Linge VIDANGE
Position: 598
Indicative price: 32.59 €
ISOLATION Lave-Linge DROITE ou GAUCHE
Position: 616
Indicative price: 26.2 €
DOUILLE Lave-Linge Charnière
Position: 632
Indicative price: 7.05 €
VIS Sèche-Linge TOP
Position: 645
Indicative price: 5.34 €
PORTE Lave-Linge POMPE VIDANGE
Position: 672
Indicative price: 20.42 €
CUVE Lave-Linge 1/2 AVANT
Position: 687
Indicative price: 103.91 €
CUVE Lave-Linge 1/2 ARRIERE
Position: 688
Indicative price: 124.33 €
Electrovanne Lave-Linge 2 VOIES 180°
Position: 737
Indicative price: 46.21 €
CHARBON Lave-Linge MOTEUR "lot de 2"
Position: 762
Indicative price: 31.2 €
CACHE Lave-Linge TACHYMETRIE
Position: 771
Indicative price: 6.55 €
CACHE Lave-Linge SECURITE DE PORTE
Position: 953
Indicative price: 15.53 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 5.38 €
AXE Lave-Linge MANETTE Programmateur
Position: 1014
Indicative price: 8.67 €
AXE Lave-Linge MANETTE ESSORAGE
Position: 1015
Indicative price: 9.71 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 30.89 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 28.63 €
RESISTANCE Lave-Linge
Position: 1384
Indicative price: 30.53 €
BOUTON Lave-Linge M/A GRIS
Position: 1416
Indicative price: 25.1 €
