Exploded view lave linge BEKO LLF07W1 7176041100
Discover the complete exploded view lave linge BEKO LLF07W1 7176041100, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your lave linge. Quickly find the parts you need to extend the life of your lave linge BEKO LLF07W1 7176041100 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
POIGNEE Lave-Linge HUBLOT
Position: 9
Indicative price: 13.39 €
HUBLOT Lave-Linge COMPLET
Position: 10
Indicative price: 90.65 €
HUBLOT Lave-Linge VERRE D325MM H90 2 ENCOCHES
Position: 11
Indicative price: 45.95 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 18.84 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 17.48 €

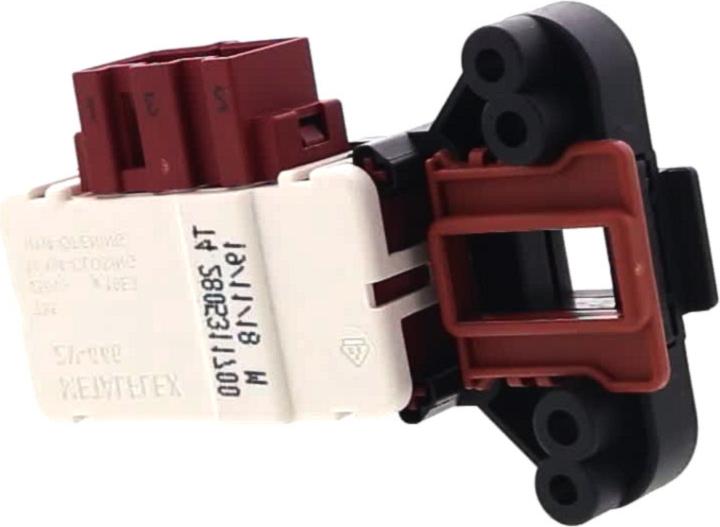

SECURITE Lave-Linge PORTE ZV-446
Position: 13
Indicative price: 29.8 €
SECURITE Lave-Linge PORTE
Position: 13
Indicative price: 31.11 €
CHARNIERE Lave-Linge HUBLOT
Position: 14
Indicative price: 27.97 €
PIED Lave-Linge AVANT M10
Position: 18
Indicative price: 9.43 €
PIED Lave-Linge ARRIERE "remplacé par pied reglable"
Position: 18
Indicative price: 10.75 €
BOUCHON Lave-Linge VIS BRIDAGE
Position: 25
Indicative price: 5.64 €
COLLIER Froid
Position: 33
Indicative price: 7.74 €
SUPPORT Lave-Linge RESSORT SUSPENSION
Position: 38
Indicative price: 6.97 €
JOINT Lave-Linge HUBLOT
Position: 54
Indicative price: 40.65 €
COLLIER Lave-Linge JOINT HUBLOT/CUVE
Position: 55
Indicative price: 8.31 €
POULIE Lave-Linge TAMBOUR
Position: 56
Indicative price: 36.02 €
COURROIE Lave-Linge 1244J5EL
Position: 59
Indicative price: 31.88 €
AMORTISSEUR Lave-Linge 110N
Position: 66
Indicative price: 27.81 €
AXE Lave-Linge Supérieur AMORTISSEUR
Position: 78
Indicative price: 5.47 €
VIS Lave-Linge Contre-poids SUPERIEUR
Position: 80
Indicative price: 11.15 €
FIXATION Lave-Linge TUYAU VIDANGE
Position: 93
Indicative price: 6.84 €
TUYAU Lave-Linge ARRIVEE EAU
Position: 106
Indicative price: 25.11 €
DURITE Lave-Linge BOITE/CUVE
Position: 117
Indicative price: 30.48 €
BOITE Lave-Linge PRODUIT
Position: 146
Indicative price: 31.46 €
CABLE Lave-Linge ALIMENTATION
Position: 169
Indicative price: 19.6 €

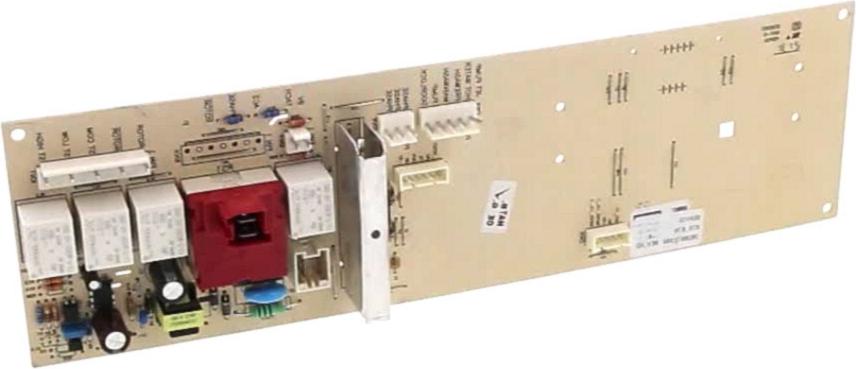

PLATINE Lave-Linge PUISSANCE
Position: 186
Indicative price: 97.77 €
Pompe de vidange Lave-Linge VIDANGE B15-6AZ 34W
Position: 194
Indicative price: 37.08 €
MANETTE Lave-Linge PROGRAMMATEUR
Position: 203
Indicative price: 25.74 €
COLLIER Lave-Linge HUBLOT JOINT/FACADE 316MM
Position: 230
Indicative price: 5.97 €
TIROIR Lave-Linge LESSIVE
Position: 336
Indicative price: 28.99 €
CROCHET Lave-Linge POIGNEE HUBLOT
Position: 341
Indicative price: 7.27 €
PLINTHE Lave-Linge
Position: 365
Indicative price: 24.39 €
TUYAU Lave-Linge VIDANGE 230cm
Position: 373
Indicative price: 32.84 €
SUPPORT Lave-Linge TUYAU VIDANGE
Position: 411
Indicative price: 8.74 €
COLLIER Lave-Linge DURITE Electrovanne
Position: 552
Indicative price: 5.51 €
DURITE Lave-Linge VIDANGE
Position: 553
Indicative price: 15.8 €
SUPPORT Lave-Linge BOUTON
Position: 571
Indicative price: 10.45 €
BOUCHON Lave-Linge POMPE DE VIDANGE + JOINT
Position: 598
Indicative price: 11.62 €
PLINTHE Lave-Linge ACCE Pompe de vidange
Position: 672
Indicative price: 27.54 €
PLINTHE Lave-Linge
Position: 672
Indicative price: 13.03 €
BOUCHON Lave-Linge DURITE VIDANGE
Position: 677
Indicative price: 10.3 €
ELECTROVANNE Lave-Linge 2 VOIES 180°
Position: 737
Indicative price: 32.21 €
CACHE Lave-Linge SECURITE DE PORTE
Position: 953
Indicative price: 15.51 €
VIS Lave-Linge POULIE TAMBOUR
Position: 1008
Indicative price: 6.24 €
AXE Lave-Linge MANETTE
Position: 1014
Indicative price: 13.07 €
DURITE Lave-Linge EV/BOITE 230 Millimètre
Position: 1110
Indicative price: 9.27 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 32.65 €
DURITE Lave-Linge CUVE/POMPE
Position: 1210
Indicative price: 29.32 €
Résistance Lave-Linge 1950W
Position: 1384
Indicative price: 31.42 €
AXE Lave-Linge AMORTISSEUR
Position: 1442
Indicative price: 9.16 €
PRESSOSTAT Lave-Linge
Position: 1640
Indicative price: 36.31 €
COLLIER Lave-Linge
Position: 1686
Indicative price: 6.98 €
COLLIER Lave-Linge DURITE CUVE
Position: 8355
Indicative price: 5.06 €
VIS Lave-Linge
Position: 8384
Indicative price: 4.5 €
COLLIER Lave-Linge DURITE
Position: 8430
Indicative price: 4.63 €
