Exploded view cuisinière BEKO CSE67101GW 7785987607

Discover the complete exploded view cuisinière BEKO CSE67101GW 7785987607, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière BEKO CSE67101GW 7785987607 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

TAQUE Cuisinière VITRO
TAQUE Cuisinière VITRO
Position: 6
Indicative price: 225 €
PANNEAU Cuisinière LATERAL
PANNEAU Cuisinière LATERAL
Position: 12
Indicative price: 40.42 €
PIED Cuisinière
PIED Cuisinière
Position: 14
Indicative price: 5.56 €
BORNIER Cuisinière
BORNIER Cuisinière
Position: 19
Indicative price: 37.23 €
BORNIER Cuisinière Alimentation + CABLE
BORNIER Cuisinière Alimentation + CABLE
Position: 19
Indicative price: 55.78 €
CONDUIT Cuisinière Air
CONDUIT Cuisinière Air
Position: 24
Indicative price: 22.08 €
GRILLE Cuisinière FOUR 464*362
GRILLE Cuisinière FOUR 464*362
Position: 27
Indicative price: 46 €
PLAT Cuisinière LECHE FRITE 462*368
PLAT Cuisinière LECHE FRITE 462*368
Position: 28
Indicative price: 30.2 €
JOINT Cuisinière GRD FOUR
JOINT Cuisinière GRD FOUR
Position: 29
Indicative price: 30.59 €
PROFIL Froid INFERIEUR PORTE
PROFIL Froid INFERIEUR PORTE
Position: 44
Indicative price: 13.71 €

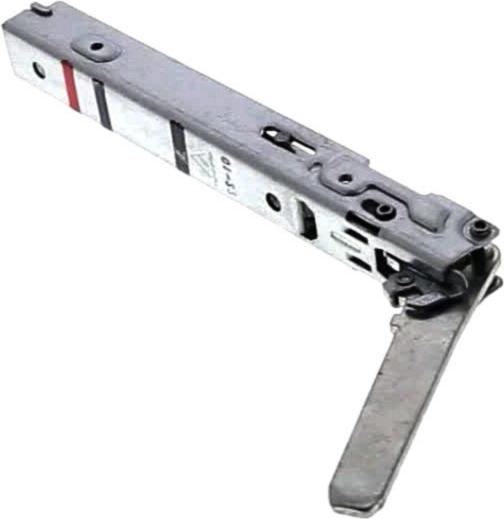

CHARNIERE Cuisinière PORTE FOUR
CHARNIERE Cuisinière PORTE FOUR
Position: 45
Indicative price: 35.06 €
CHARNIERE Cuisinière PORTE FOUR
CHARNIERE Cuisinière PORTE FOUR
Position: 45
Indicative price: 32.97 €
POIGNEE Cuisinière PORTE FOUR
POIGNEE Cuisinière PORTE FOUR
Position: 47
Indicative price: 32.52 €
Commutateur Cuisinière PLAQUE 4627266.500
Commutateur Cuisinière PLAQUE 4627266.500
Position: 92
Indicative price: 30.93 €
COMMUTATEUR Cuisinière FOUR
COMMUTATEUR Cuisinière FOUR
Position: 93
Indicative price: 34.27 €
Programmateur Cuisinière 100mn DKJ-Y DKJ-Y 100' K
Programmateur Cuisinière 100mn DKJ-Y DKJ-Y 100' K
Position: 96
Indicative price: 52.83 €
PROGRAMMATEUR Cuisinière MINUTERIE
PROGRAMMATEUR Cuisinière MINUTERIE
Position: 96
Indicative price: 64.36 €
PANNEAU Four FOND FOUR
PANNEAU Four FOND FOUR
Position: 97
Indicative price: 30.89 €
MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
Position: 101
Indicative price: 63.66 €
RESISTANCE Four Inférieur 1200w
RESISTANCE Four Inférieur 1200w
Position: 106
Indicative price: 38.02 €
RESISTANCE Cuisinière GRILL 1100+1100 W
RESISTANCE Cuisinière GRILL 1100+1100 W
Position: 107
Indicative price: 52.37 €
CABLE Cuisinière ALIMENTATION
CABLE Cuisinière ALIMENTATION
Position: 119
Indicative price: 26.9 €
PLAQUE Four CATALYSE
PLAQUE Four CATALYSE
Position: 242
Indicative price: 29.86 €
PLAQUE Four CATALYSE ARRIERE
PLAQUE Four CATALYSE ARRIERE
Position: 242
Indicative price: 28.64 €
GRILLE Cuisinière LATERALE DROITE + GAUCHE
GRILLE Cuisinière LATERALE DROITE + GAUCHE
Position: 243
Indicative price: 43.02 €
GRILLE Cuisinière LATERALE GAUCHE
GRILLE Cuisinière LATERALE GAUCHE
Position: 243
Indicative price: 26.5 €
MANETTE Cuisinière THERMOSTAT 75-MAX méplat 12h
MANETTE Cuisinière THERMOSTAT 75-MAX méplat 12h
Position: 246
Indicative price: 13.72 €
Thermostat Cuisinière FOUR 5517053030 55.17053.030
Thermostat Cuisinière FOUR 5517053030 55.17053.030
Position: 263
Indicative price: 41.68 €
Commutateur Cuisinière NRJ AVG
Commutateur Cuisinière NRJ AVG
Position: 359
Indicative price: 39.34 €
AMPOULE Cuisinière 15w E14 300°
AMPOULE Cuisinière 15w E14 300°
Position: 374
Indicative price: 7.12 €
DOUILLE Cuisinière LAMPE COMPLETE
DOUILLE Cuisinière LAMPE COMPLETE
Position: 375
Indicative price: 36.11 €
MANETTE Cuisinière NRJ 0-3 méplat 12h
MANETTE Cuisinière NRJ 0-3 méplat 12h
Position: 392
Indicative price: 14.61 €
PLAQUE Cuisinière 1200w 145mm
PLAQUE Cuisinière 1200w 145mm
Position: 467
Indicative price: 81.9 €
PLAQUE Cuisinière 1700W 180mm RAD TRIPLE
PLAQUE Cuisinière 1700W 180mm RAD TRIPLE
Position: 468
Indicative price: 105.29 €
PLAQUE Cuisinière Hilight 180mm 1800w
PLAQUE Cuisinière Hilight 180mm 1800w
Position: 548
Indicative price: 97.44 €
THERMOSTAT Cuisinière SECURITE
THERMOSTAT Cuisinière SECURITE
Position: 557
Indicative price: 21.81 €

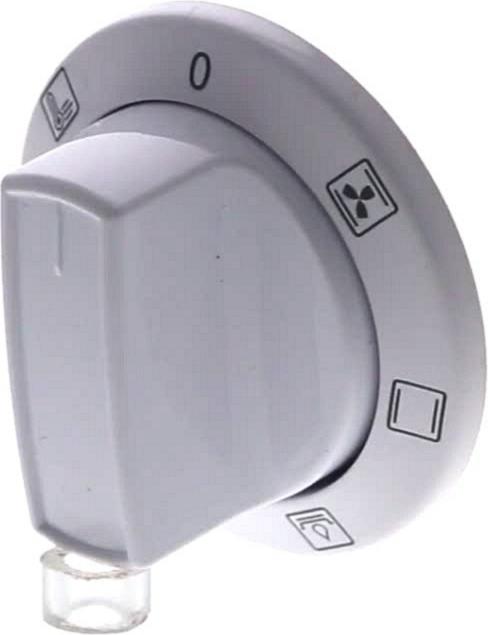

MANETTE Cuisinière COMMUTATEUR méplat 12h
MANETTE Cuisinière COMMUTATEUR méplat 12h
Position: 635
Indicative price: 14.7 €
MANETTE Cuisinière MINUTERIE BLANCHE 10-100 méplat 12h 6mm
MANETTE Cuisinière MINUTERIE BLANCHE 10-100 méplat 12h 6mm
Position: 658
Indicative price: 13.71 €
MANETTE Cuisinière HIGH LIGHT Blanc 0-6 MEPLAT 12H 6MM
MANETTE Cuisinière HIGH LIGHT Blanc 0-6 MEPLAT 12H 6MM
Position: 663
Indicative price: 15.04 €
SUPPORT Cuisinière CHARNIERE DROITE
SUPPORT Cuisinière CHARNIERE DROITE
Position: 883
Indicative price: 5.51 €
SUPPORT Four CHARNIERE Porte
SUPPORT Four CHARNIERE Porte
Position: 883
Indicative price: 10.53 €
PORTE Cuisinière FOUR COMPLETE
PORTE Cuisinière FOUR COMPLETE
Position: 884
Indicative price: 129.37 €
VIS Cuisinière POIGNEE PORTE
VIS Cuisinière POIGNEE PORTE
Position: 885
Indicative price: 9.36 €
ARRETOIRE Cuisinière
ARRETOIRE Cuisinière
Position: 916
Indicative price: 5.7 €
VIS Cuisinière GLISSIERE
VIS Cuisinière GLISSIERE
Position: 949
Indicative price: 7.61 €
TURBINE Cuisinière
TURBINE Cuisinière
Position: 950
Indicative price: 16.92 €
SUPPORT Cuisinière THERMOSTAT
SUPPORT Cuisinière THERMOSTAT
Position: 1027
Indicative price: 8.6 €
