Exploded view cuisinière BEKO FDF83310DA 7717187611
Discover the complete exploded view cuisinière BEKO FDF83310DA 7717187611, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your cuisinière. Quickly find the parts you need to extend the life of your cuisinière BEKO FDF83310DA 7717187611 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
COUVERCLE Cuisinière VERRE
Position: 1
Indicative price: 75 €
SUPPORT Cuisinière Droit CHARNIERE Couvercle
Position: 2
Indicative price: 14.19 €
CHARNIERE Cuisinière PORTE
Position: 13
Indicative price: 13.35 €
BORNIER Cuisinière
Position: 19
Indicative price: 30.6 €
BORNIER Cuisinière
Position: 19
Indicative price: 38.84 €
GRILLE Four
Position: 27
Indicative price: 38.57 €
JOINT Cuisinière GRD FOUR
Position: 29
Indicative price: 30.13 €

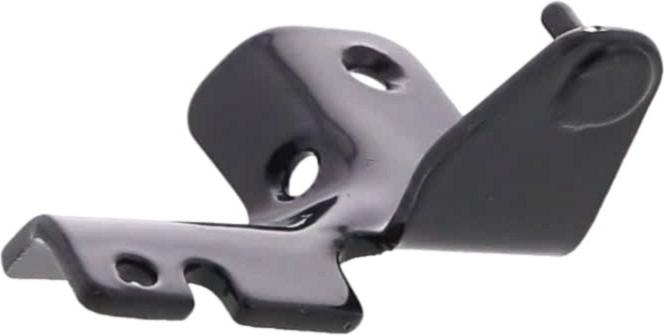

CHARNIERE Cuisinière PORTE FOUR
Position: 31
Indicative price: 21.92 €
VITRE Cuisinière INTERIEURE 522*410
Position: 40
Indicative price: 61.55 €
SERIGRAPHIE Cuisinière PORTE Supérieur
Position: 41
Indicative price: 19.71 €
POIGNEE Cuisinière PORTE
Position: 47
Indicative price: 83.12 €
GRILLE Cuisinière REDUCTRICE
Position: 58
Indicative price: 17.86 €
CLIPS Cuisinière BOUGIE
Position: 68
Indicative price: 5.54 €
BUTEE Froid PORTE
Position: 72
Indicative price: 5.91 €
EMBOUT Cuisinière Gaz Butane + JOINT
Position: 81
Indicative price: 9.73 €
BOUCHON Cuisinière ARRIVE DE GAZ
Position: 82
Indicative price: 13.07 €
COMMUTATEUR Cuisinière HIGHLIGHT
Position: 92
Indicative price: 29.5 €

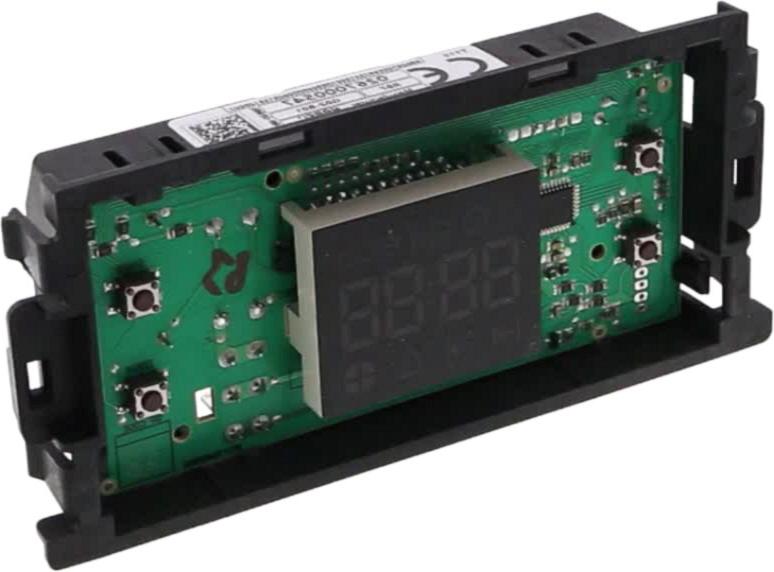

PROGRAMMATEUR Cuisinière
Position: 96
Indicative price: 119.97 €
PANNEAU Four FOND FOUR
Position: 97
Indicative price: 32.64 €
RESISTANCE Four CHALEUR TOURNANTE 1800W
Position: 98
Indicative price: 38.55 €
MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
Position: 101
Indicative price: 55.38 €
RESISTANCE Four SOLE
Position: 106
Indicative price: 54.69 €
RESISTANCE Cuisinière GRILL 2200w
Position: 107
Indicative price: 70.14 €
CABLE Cuisinière ALIMENTATION
Position: 119
Indicative price: 58.65 €
JOINT Cuisinière BRULEUR Rapide
Position: 124
Indicative price: 6.87 €
JOINT Plaque S/R
Position: 124
Indicative price: 7.64 €
JOINT Plaque Auxiliaire
Position: 124
Indicative price: 8.48 €
RONDELLE Cuisinière POIGNEE
Position: 140
Indicative price: 9.46 €
THERMOCOUPLE Cuisinière L=520mm
Position: 155
Indicative price: 25.42 €
ECROU Cuisinière THERMOCOUPLE
Position: 240
Indicative price: 4.51 €
ECROU Cuisinière CHARNIERE COUVERCLE
Position: 256
Indicative price: 36.24 €
ENTRETOISE Cuisinière POIGNEE
Position: 261
Indicative price: 9.1 €
Thermostat Cuisinière FOUR 5517053030 55.17053.030
Position: 263
Indicative price: 40.5 €
THERMOSTAT Cuisinière PETIT FOUR 55.17042.030 5517042030 250°C
Position: 263
Indicative price: 68.71 €
JEU Cuisinière Injecteur Gaz Butane
Position: 328
Indicative price: 21.71 €

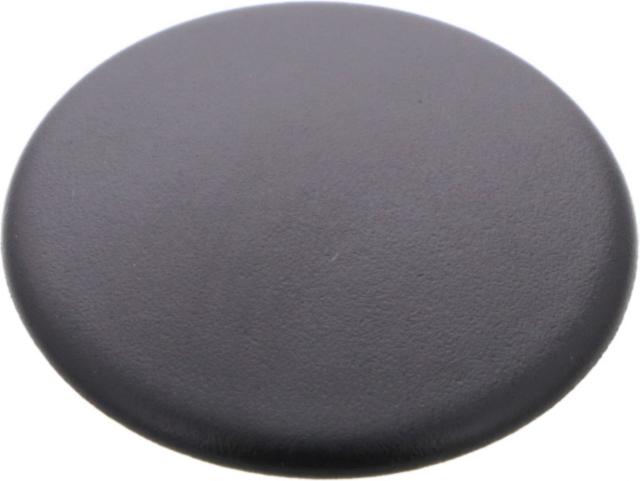

CHAPEAU Plaque BRULEUR Auxiliaire
Position: 338
Indicative price: 22.69 €

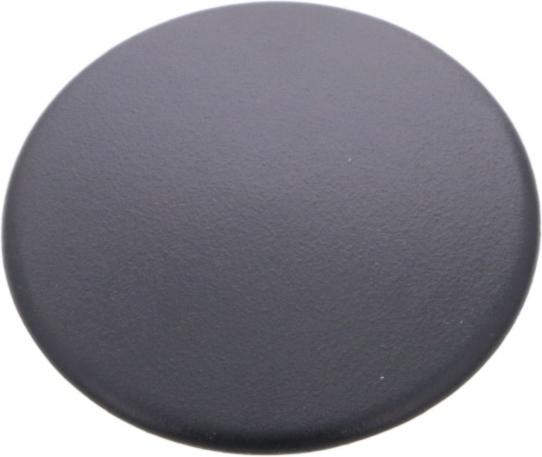

CHAPEAU Plaque BRULEUR Semi-rapide
Position: 339
Indicative price: 20.17 €
TETE Cuisinière BRULEUR Auxiliaire
Position: 342
Indicative price: 21.96 €
TETE Cuisinière BRULEUR Semi-rapide
Position: 343
Indicative price: 26.89 €
CHAPEAU Cuisinière BRULEUR Auxiliaire
Position: 345
Indicative price: 8.86 €
MANETTE Cuisinière
Position: 365
Indicative price: 55.55 €
VITRE Cuisinière INTERMEDIAIRE
Position: 479
Indicative price: 37.41 €
DOUILLE Cuisinière CHARNIERE
Position: 531
Indicative price: 8.79 €
BOUTON Cuisinière LAMPE/ALLUMAGE
Position: 550
Indicative price: 5.53 €
Interrupteur Cuisinière
Position: 554
Indicative price: 33.07 €
PATIN Cuisinière GRILLE
Position: 566
Indicative price: 5.94 €
ENJOLIVEUR Cuisinière Droit SUPPORT Charnière
Position: 583
Indicative price: 11.3 €
ENJOLIVEUR Cuisinière Gauche SUPPORT Charnière
Position: 583
Indicative price: 10.4 €
SUPPORT Cuisinière Gauche CHARNIERE Couvercle
Position: 598
Indicative price: 12.83 €
MANETTE Cuisinière Commutateur
Position: 663
Indicative price: 51.39 €
SUPPORT Cuisinière VITRE
Position: 740
Indicative price: 11.28 €
VIS Cuisinière M4X8
Position: 856
Indicative price: 5.46 €
SUPPORT Cuisinière CHARNIERE GAUCHE
Position: 883
Indicative price: 12.01 €
SUPPORT Cuisinière CHARNIERE DROITE
Position: 883
Indicative price: 13.4 €
VITRE Cuisinière EXTERIEURE
Position: 884
Indicative price: 63.92 €
ARRETOIRE Cuisinière
Position: 916
Indicative price: 5.69 €
TURBINE Cuisinière
Position: 950
Indicative price: 15.97 €
SUPPORT Cuisinière CHARNIERE
Position: 1022
Indicative price: 5.87 €
EMBOUT Cuisinière RACCORD Gaz Butane
Position: 1048
Indicative price: 42.95 €
SUPPORT Cuisinière VITRE
Position: 1251
Indicative price: 5.79 €
