Exploded view seche linge BEKO DC713 7187681500
Discover the complete exploded view seche linge BEKO DC713 7187681500, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your seche linge. Quickly find the parts you need to extend the life of your seche linge BEKO DC713 7187681500 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
DESSUS Lave-Linge TOP
Position: 1
Indicative price: 57.96 €
POIGNEE Sèche-Linge HUBLOT
Position: 9
Indicative price: 22.4 €
CHARNIERE Sèche-Linge HUBLOT
Position: 14
Indicative price: 26.56 €
PIED Sèche-Linge
Position: 18
Indicative price: 4.87 €
COLLIER Froid
Position: 33
Indicative price: 7.51 €
TAMBOUR Sèche-Linge
Position: 48
Indicative price: 117.82 €
COURROIE Sèche-Linge 1956H7 7PH1956
Position: 59
Indicative price: 36.01 €
MOTEUR Sèche-Linge
Position: 63
Indicative price: 128.92 €

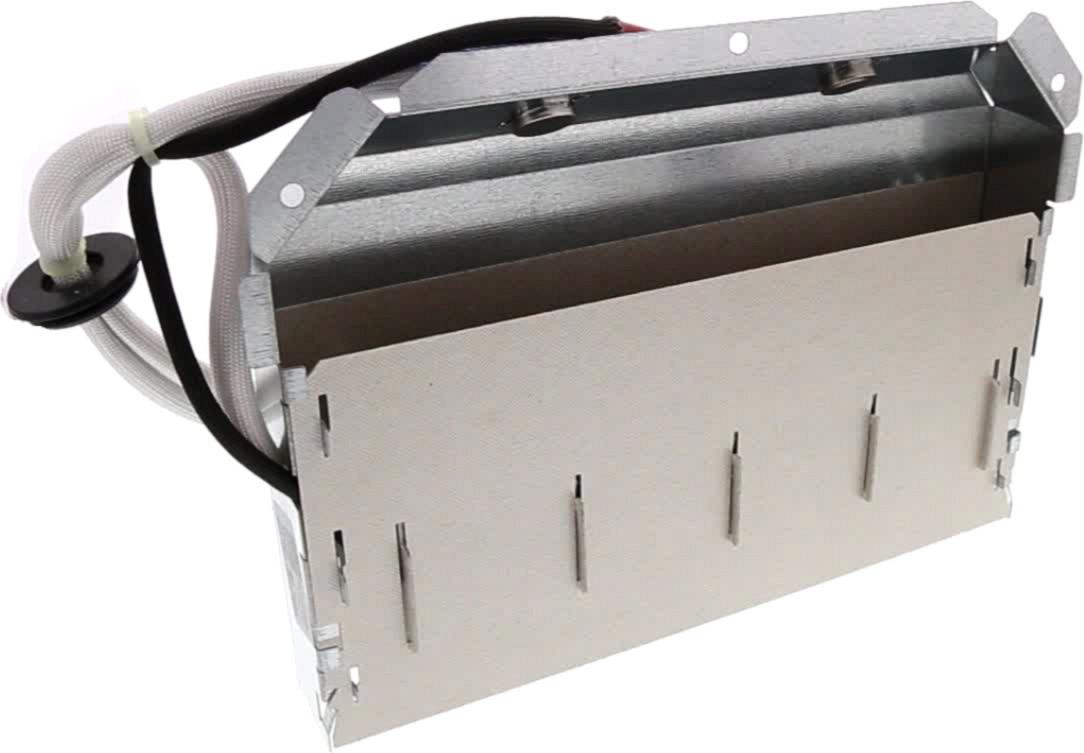

RESISTANCE Sèche-Linge 1600+900W IRCA
Position: 65
Indicative price: 70.56 €
CABLE Sèche-Linge ALIMENTATION 3G1.5
Position: 169
Indicative price: 22.52 €
CABLE Sèche-Linge ALIMENTATION
Position: 169
Indicative price: 32.47 €
Interrupteur Sèche-Linge M/A
Position: 180
Indicative price: 20.79 €

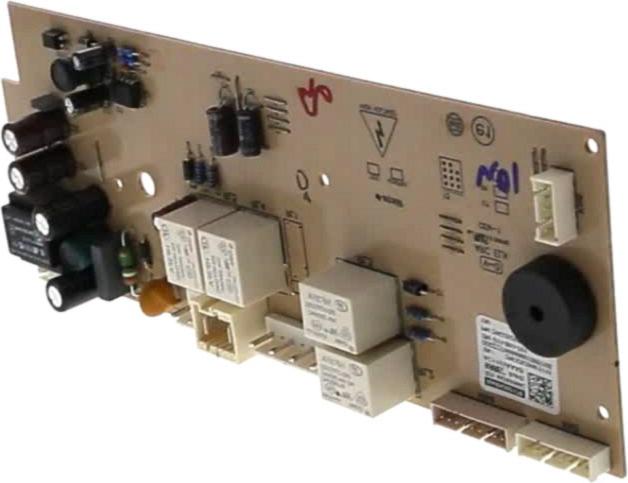

PLATINE Sèche-Linge COMMANDE
Position: 186
Indicative price: 132.4 €
COURROIE Sèche-Linge 285PHE4
Position: 189
Indicative price: 25.04 €
MANETTE Sèche-Linge Programmateur
Position: 203
Indicative price: 19.96 €
BOUTON Sèche-Linge
Position: 300
Indicative price: 5.58 €
CROCHET Sèche-Linge PORTE
Position: 341
Indicative price: 5.45 €
BOUTON Lave-Linge M/A
Position: 468
Indicative price: 5.06 €
VARIATEUR Sèche-Linge
Position: 481
Indicative price: 29.73 €
Batteur Sèche-Linge
Position: 584
Indicative price: 13.04 €
CONDENSATEUR Sèche-Linge 9uF
Position: 653
Indicative price: 14.5 €
VIS Sèche-Linge AXE PALIER
Position: 658
Indicative price: 4.98 €
JOINT Sèche-Linge ARRIERE
Position: 804
Indicative price: 64.12 €
PALIER Sèche-Linge ARRIERE
Position: 834
Indicative price: 28.01 €
AXE Sèche-Linge TAMBOUR
Position: 834
Indicative price: 41.92 €
BAC Sèche-Linge EAU
Position: 843
Indicative price: 70.7 €
BOUCHON Sèche-Linge BAC Récupération EAU
Position: 844
Indicative price: 9.35 €
LEVIER Sèche-Linge CONDENSEUR ROUGE
Position: 846
Indicative price: 6.17 €

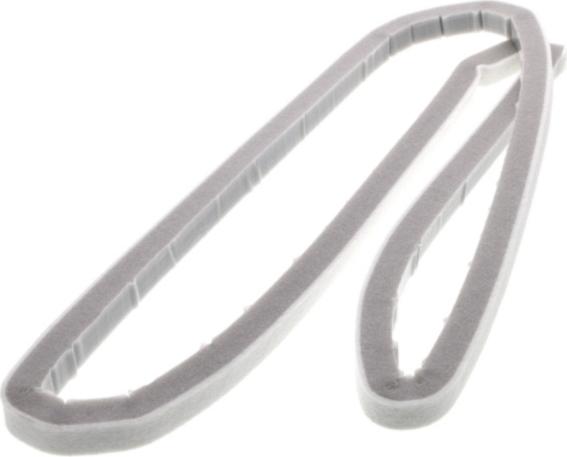

FEUTRE Sèche-Linge AVANT
Position: 861
Indicative price: 37.4 €
SUPPORT Sèche-Linge PLATINE CDE
Position: 873
Indicative price: 16.92 €
TURBINE Sèche-Linge
Position: 877
Indicative price: 22.89 €

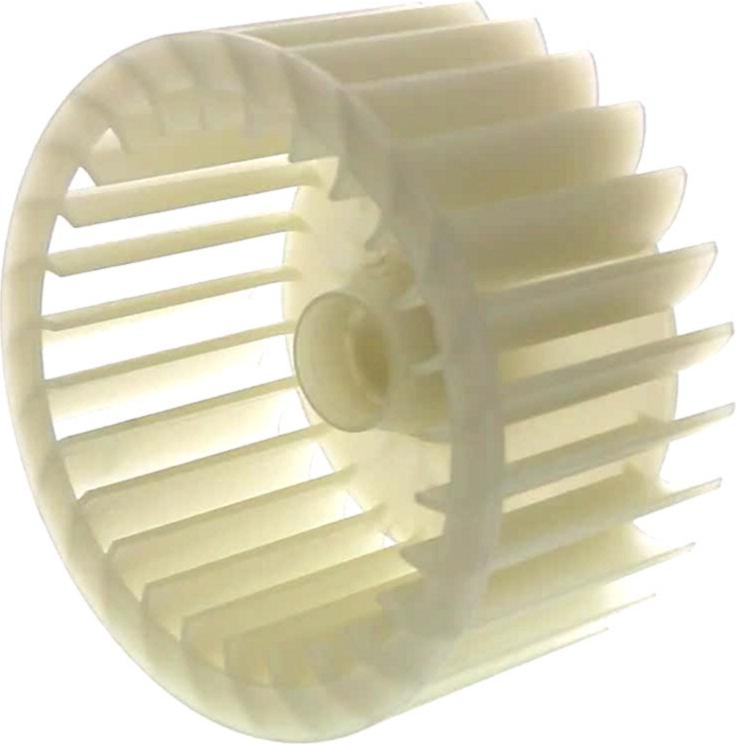

TURBINE Sèche-Linge MOTEUR D97MM H50MM
Position: 891
Indicative price: 16.01 €
TURBINE Sèche-Linge AVANT
Position: 891
Indicative price: 18.8 €
CONDENSEUR Sèche-Linge COMPLET
Position: 921
Indicative price: 135.34 €
Interrupteur Sèche-Linge ANTIDEBORDEMENT
Position: 985
Indicative price: 33.14 €
POULIE Sèche-Linge + COURROIE
Position: 1077
Indicative price: 48.78 €
SECURITE Sèche-Linge PORTE
Position: 1209
Indicative price: 12.02 €
TRANSFERT Sèche-Linge LED
Position: 1211
Indicative price: 9.7 €
CLAPET Sèche-Linge BAC CONDENSEUR
Position: 1230
Indicative price: 19.95 €
RACCORD Sèche-Linge BAC A EAU
Position: 1231
Indicative price: 22.99 €
JOINT Sèche-Linge
Position: 1240
Indicative price: 12.92 €
JOINT Sèche-Linge CLAPET CONDENSEU
Position: 1241
Indicative price: 12.54 €
FILTRE Sèche-Linge PELUCHES
Position: 1259
Indicative price: 29.7 €
TRANSFERT Sèche-Linge LED
Position: 1268
Indicative price: 11.97 €
SUPPORT Sèche-Linge + GUIDE CONDENSEUR
Position: 1271
Indicative price: 24.15 €

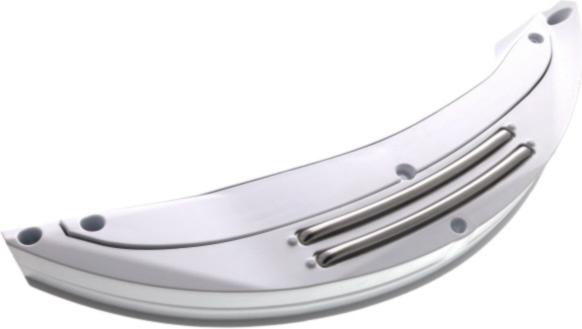

CAPTEUR Sèche-Linge HUMIDITE
Position: 1279
Indicative price: 38.72 €

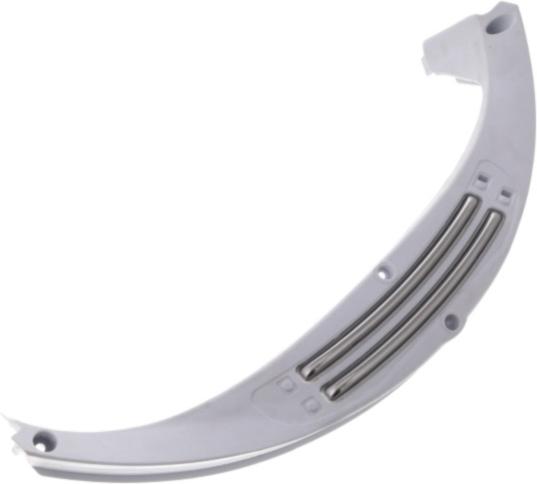

COUVERCLE Sèche-Linge SONDE
Position: 1279
Indicative price: 23.32 €
JOINT Sèche-Linge PORTE
Position: 1290
Indicative price: 20.99 €
SUPPORT Sèche-Linge ARRIERE MOTEUR
Position: 1295
Indicative price: 5.91 €
VIS Sèche-Linge CHARNIERE
Position: 1313
Indicative price: 9.16 €
JOINT Sèche-Linge MOTEUR
Position: 1401
Indicative price: 24.33 €
JOINT Sèche-Linge FILTRE PELUCHE
Position: 1453
Indicative price: 16.13 €
JOINT Sèche-Linge CONDUIT Air
Position: 1454
Indicative price: 19.73 €
SONDE Sèche-Linge CTN
Position: 1457
Indicative price: 17.96 €
ROUE Sèche-Linge AVANT 74.5mm axe 8mm
Position: 1459
Indicative price: 27.35 €
ROUE Sèche-Linge SUPPORT TAMBOUR
Position: 1459
Indicative price: 34 €
VIS Sèche-Linge PLASTIQUE
Position: 1466
Indicative price: 3.85 €
SUPPORT Sèche-Linge CROCHET
Position: 1473
Indicative price: 7.06 €
COND0 Lave-Vaisselle ANTIPARASITE
Position: 4210
Indicative price: 27.93 €
CONDENSATEUR Sèche-Linge ANTIPARASITE
Position: 4210
Indicative price: 24.59 €
COLLIER Lave-Vaisselle DURITE D=164MM
Position: 8318
Indicative price: 7.23 €
VIS Lave-Linge
Position: 8384
Indicative price: 5.19 €
VIS Sèche-Linge TOP
Position: 8392
Indicative price: 5.82 €
VIS Lave-Linge
Position: 8397
Indicative price: 2.29 €
