Exploded view four BEKO OIE226XP 7757787603

Discover the complete exploded view four BEKO OIE226XP 7757787603, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your four. Quickly find the parts you need to extend the life of your four BEKO OIE226XP 7757787603 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

MANETTE Cuisinière THERMOSTAT
MANETTE Cuisinière THERMOSTAT
Position: 10
Indicative price: 16.62 €
PROFIL Four GAUCHE
PROFIL Four GAUCHE
Position: 16
Indicative price: 24.02 €
PLAQUE Four FOND FOUR
PLAQUE Four FOND FOUR
Position: 23
Indicative price: 30.57 €
GRILLE Four
GRILLE Four
Position: 27
Indicative price: 52.01 €
PLAT Cuisinière LECHE FRITE 462*368
PLAT Cuisinière LECHE FRITE 462*368
Position: 28
Indicative price: 35.41 €

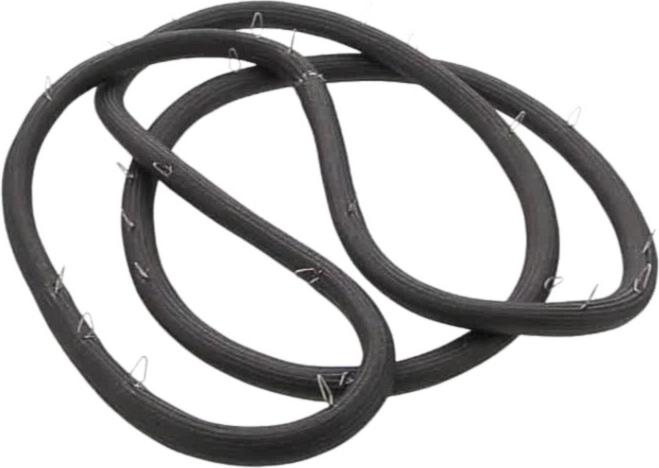

JOINT Four PORTE
JOINT Four PORTE
Position: 29
Indicative price: 96.65 €
VITRE Four Intérieure 510*400
VITRE Four Intérieure 510*400
Position: 40
Indicative price: 182.64 €
PROFIL Cuisinière Supérieur VITRE Extérieure
PROFIL Cuisinière Supérieur VITRE Extérieure
Position: 41
Indicative price: 72.79 €
POIGNEE Four PORTE FOUR
POIGNEE Four PORTE FOUR
Position: 47
Indicative price: 69.01 €

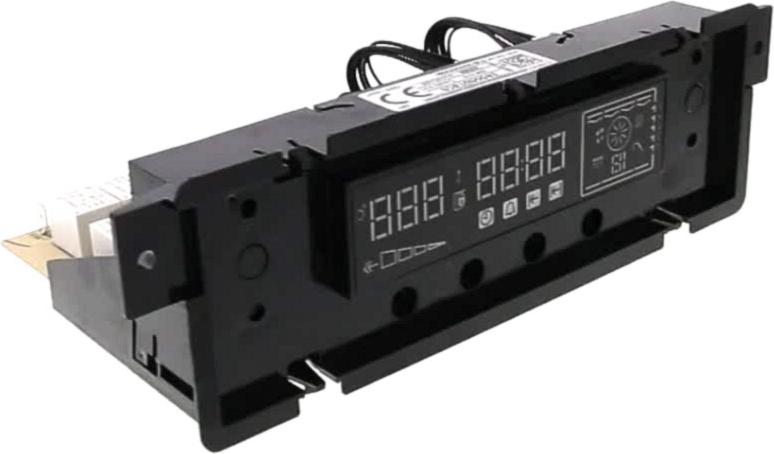

Programmateur Four ELECTRONIQUE
Programmateur Four ELECTRONIQUE
Position: 96
Indicative price: 125.28 €
MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
Position: 101
Indicative price: 59.62 €
MOTEUR Cuisinière TOURNE BROCHE
MOTEUR Cuisinière TOURNE BROCHE
Position: 102
Indicative price: 54.54 €
GRILLE Cuisinière SUPPORT BROCHE
GRILLE Cuisinière SUPPORT BROCHE
Position: 103
Indicative price: 31.33 €
BROCHE Cuisinière COMPLETE
BROCHE Cuisinière COMPLETE
Position: 104
Indicative price: 22.51 €
RESISTANCE Four Inférieur 1200w
RESISTANCE Four Inférieur 1200w
Position: 106
Indicative price: 40.52 €
RESISTANCE Cuisinière GRILL 1100+1100 W
RESISTANCE Cuisinière GRILL 1100+1100 W
Position: 107
Indicative price: 51.54 €
MINUTERIE Four HORLOGE
MINUTERIE Four HORLOGE
Position: 300
Indicative price: 94.66 €
BOUTON Four MINUTERIE
BOUTON Four MINUTERIE
Position: 300
Indicative price: 13.11 €
AMPOULE Four COMPLETE
AMPOULE Four COMPLETE
Position: 375
Indicative price: 67.65 €
VITRE Four INTERMEDIAIRE Porte FOUR 476*381
VITRE Four INTERMEDIAIRE Porte FOUR 476*381
Position: 479
Indicative price: 59.23 €
VITRE Four INTERMEDIAIRE Porte 475*380
VITRE Four INTERMEDIAIRE Porte 475*380
Position: 479
Indicative price: 69.45 €

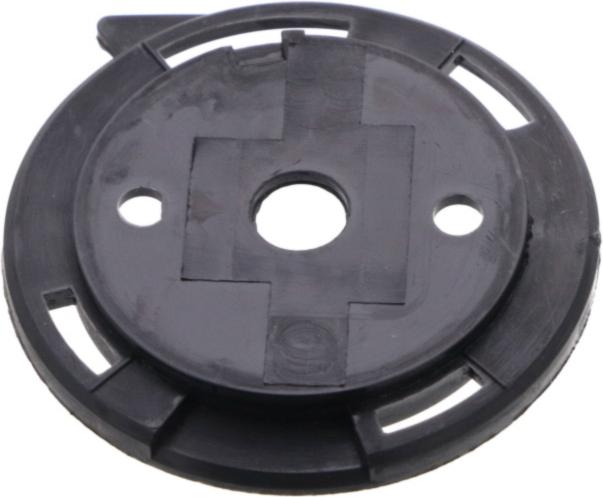

SUPPORT Four COMMUTATEUR
SUPPORT Four COMMUTATEUR
Position: 576
Indicative price: 10.13 €
SONDE Four TH
SONDE Four TH
Position: 587
Indicative price: 72.52 €
SUPPORT Four Droit POIGNEE Porte
SUPPORT Four Droit POIGNEE Porte
Position: 727
Indicative price: 12.8 €
SUPPORT Four Gauche POIGNEE Porte
SUPPORT Four Gauche POIGNEE Porte
Position: 728
Indicative price: 13.17 €
VITRE Four EXTERIEURE PORTE FOUR 593*460 entraxe 416mm
VITRE Four EXTERIEURE PORTE FOUR 593*460 entraxe 416mm
Position: 884
Indicative price: 131.55 €
SUPPORT Froid VIS
SUPPORT Froid VIS
Position: 888
Indicative price: 5.36 €
DISQUE BOUTON MINUTERIE
DISQUE BOUTON MINUTERIE
Position: 894
Indicative price: 7.29 €
POTENTIOMETRE Four THERMOSTAT SR27AP-D1-24F-0.5
POTENTIOMETRE Four THERMOSTAT SR27AP-D1-24F-0.5
Position: 904
Indicative price: 22.86 €
CLIPS Four VITRE
CLIPS Four VITRE
Position: 906
Indicative price: 5.93 €
BUTEE Cuisinière VITRE
BUTEE Cuisinière VITRE
Position: 907
Indicative price: 9.54 €

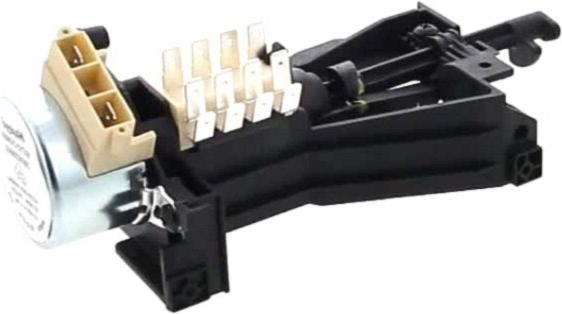

MOTEUR Four VERROUILLAGE
MOTEUR Four VERROUILLAGE
Position: 908
Indicative price: 113.54 €

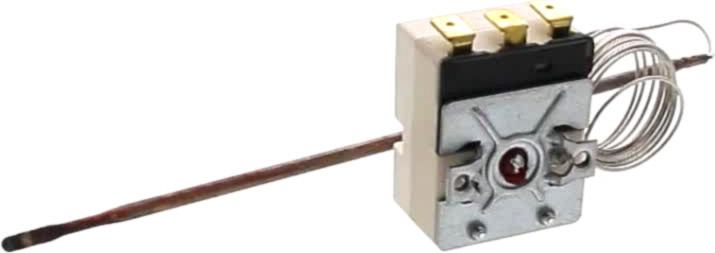

THERMOSTAT Four FOUR 320°C
THERMOSTAT Four FOUR 320°C
Position: 910
Indicative price: 100.79 €
JOINT Four INFERIEUR
JOINT Four INFERIEUR
Position: 941
Indicative price: 9.02 €
TURBINE Cuisinière
TURBINE Cuisinière
Position: 950
Indicative price: 16.39 €
THERMOSTAT Four SECURITE 175°C 161771 303 457E
THERMOSTAT Four SECURITE 175°C 161771 303 457E
Position: 3154
Indicative price: 13.6 €
