Exploded view four BEKO OIM24500B 7759687632
Discover the complete exploded view four BEKO OIM24500B 7759687632, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your four. Quickly find the parts you need to extend the life of your four BEKO OIM24500B 7759687632 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

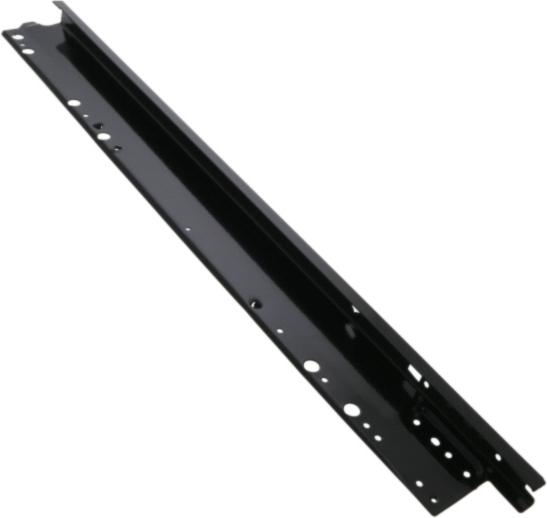

PROFIL Four GAUCHE
Position: 16
Indicative price: 19.9 €
PLAQUE Four FOND FOUR
Position: 23
Indicative price: 32.93 €
GRILLE Four
Position: 27
Indicative price: 39.05 €
PLAT Cuisinière LECHE FRITE 462*368
Position: 28
Indicative price: 31.93 €
PLAQUE Cuisinière PATISSERIE
Position: 28
Indicative price: 43.32 €
VITRE Four Intérieure Porte FOUR 510*400
Position: 40
Indicative price: 61.56 €
CHARNIERE Four
Position: 41
Indicative price: 94.93 €
PLATINE Four COMMANDE/MINUTERIE
Position: 96
Indicative price: 128.4 €
PLAQUE Four PROTECTION Résistance
Position: 97
Indicative price: 45.47 €

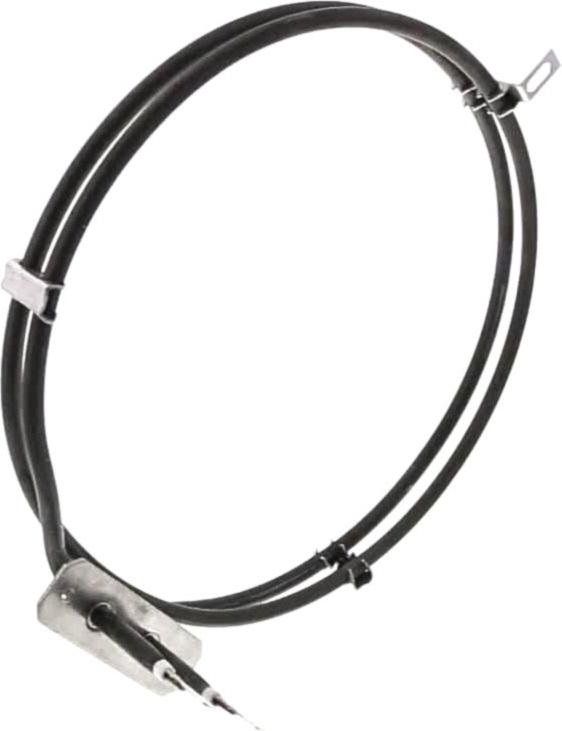

RESISTANCE Four CHALEUR TOURNANTE 1800W
Position: 98
Indicative price: 39.97 €
RESISTANCE Four C/T
Position: 98
Indicative price: 47.99 €

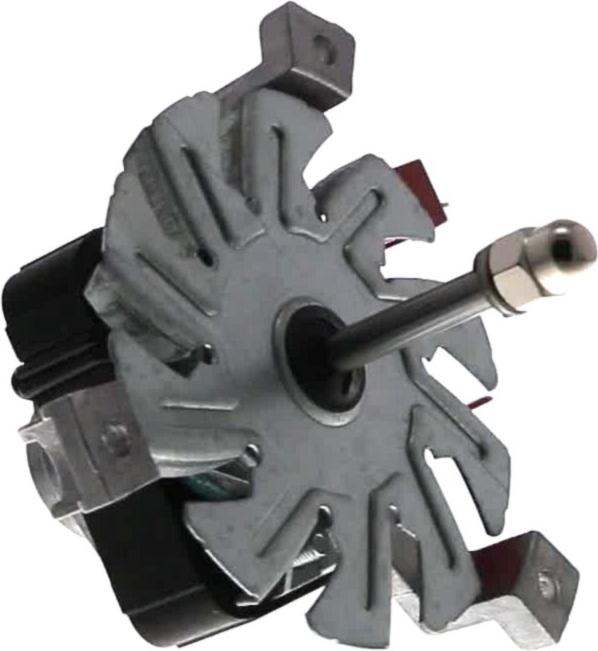

MOTEUR Four C/T YJ61*16A-HZ02 SP-15-AF-001 AXE 33MM
Position: 101
Indicative price: 56.44 €
MOTEUR Cuisinière TOURNE BROCHE
Position: 102
Indicative price: 57.26 €
GRILLE Cuisinière SUPPORT BROCHE
Position: 103
Indicative price: 27.8 €
BROCHE Cuisinière COMPLETE
Position: 104
Indicative price: 22.71 €

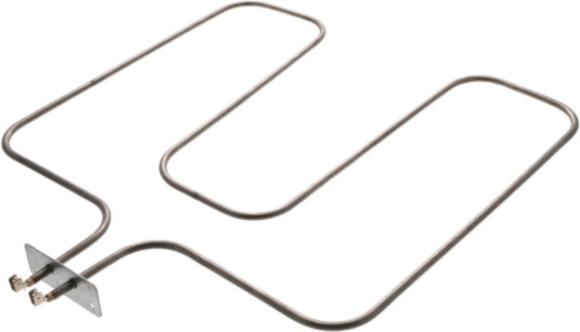

RESISTANCE Four Inférieur 1200w
Position: 106
Indicative price: 37.89 €

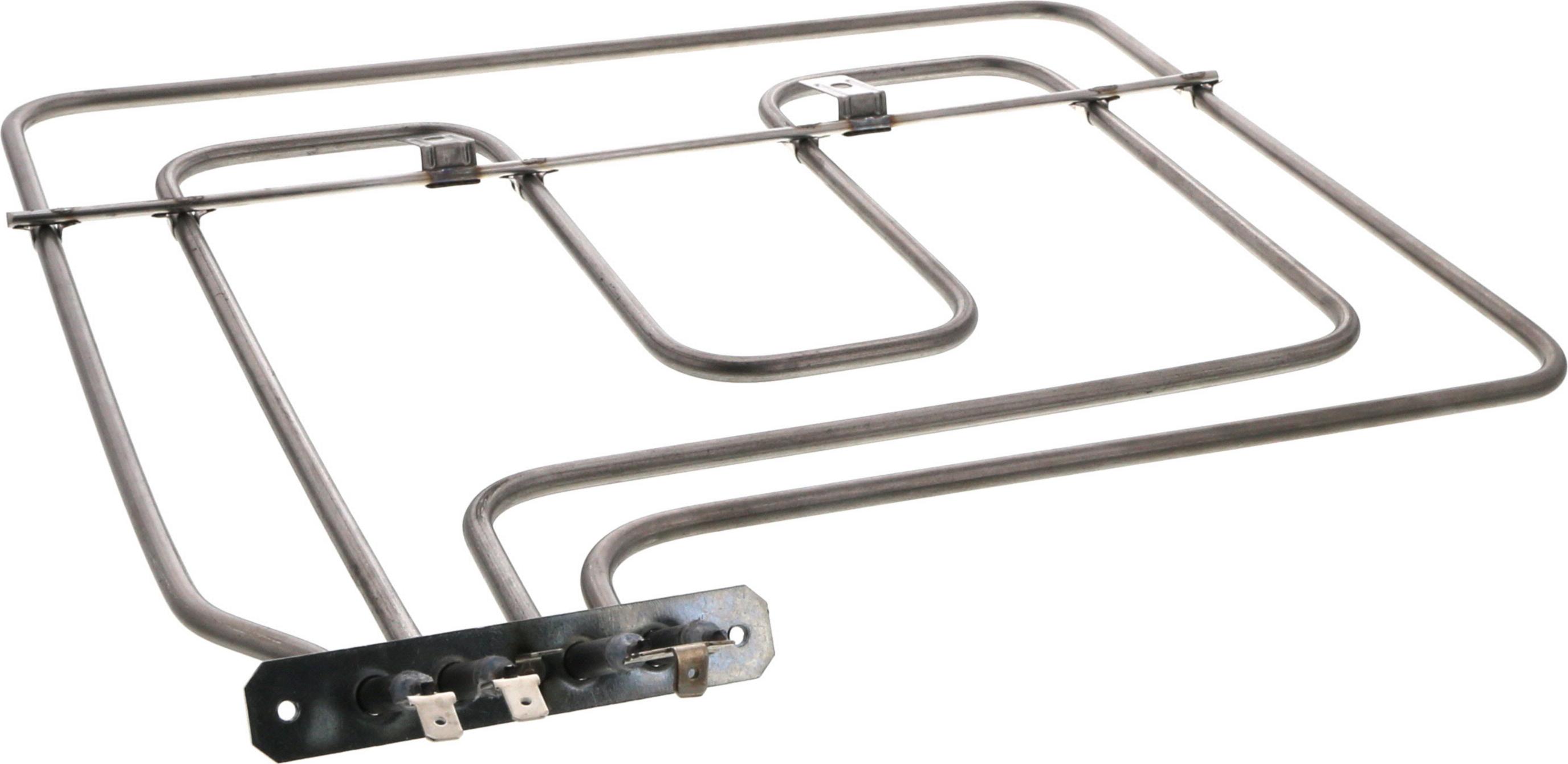

RESISTANCE Cuisinière GRILL 1100+1100 W
Position: 107
Indicative price: 56.19 €
PLAQUE Four CATALYSE
Position: 242
Indicative price: 30.32 €
PLAQUE Four CATALYSE ARRIERE
Position: 242
Indicative price: 29.33 €
GRILLE Cuisinière LATERALE DROITE + GAUCHE
Position: 243
Indicative price: 42.34 €
GRILLE Cuisinière LATERALE GAUCHE
Position: 243
Indicative price: 26.24 €
MOTEUR Four Ventilation TANGENTIEL
Position: 252
Indicative price: 81.86 €
BOUTON Four MINUTERIE
Position: 300
Indicative price: 10.82 €
AMPOULE Cuisinière 15w E14 300°
Position: 374
Indicative price: 6.62 €

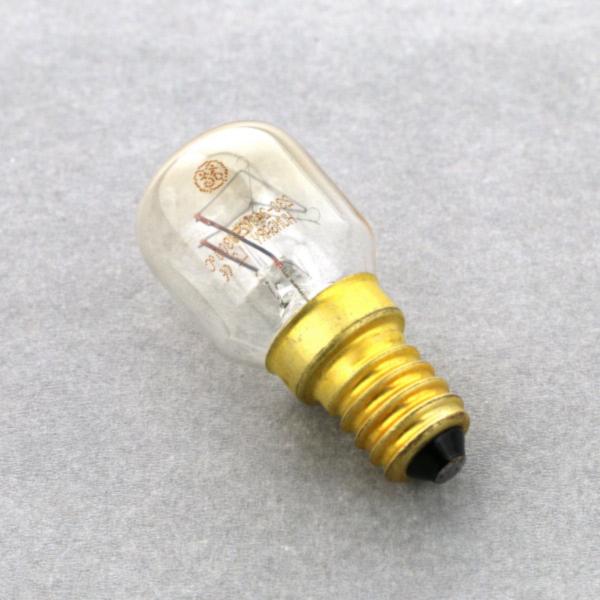

AMPOULE Cuisinière FOUR 25W E14 300°
Position: 374
Indicative price: 21.79 €
DOUILLE Cuisinière LAMPE COMPLETE
Position: 375
Indicative price: 26.24 €
DOUILLE Cuisinière FOUR COMPLETE
Position: 375
Indicative price: 42.11 €
VITRE Four INTERMEDIAIRE 476*382
Position: 479
Indicative price: 36.08 €

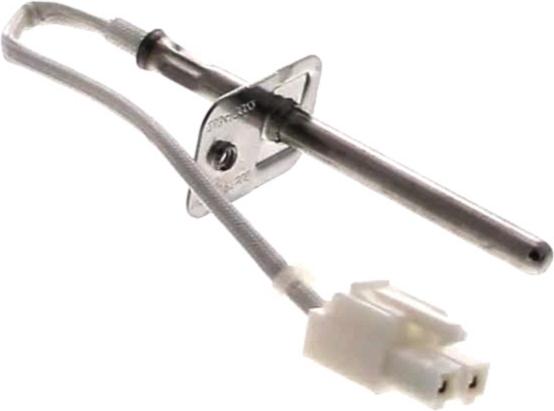

SONDE Four TH
Position: 587
Indicative price: 72.78 €
SUPPORT Four Gauche POIGNEE Porte
Position: 727
Indicative price: 13.19 €
SUPPORT Four Droit POIGNEE Porte
Position: 728
Indicative price: 13.44 €
SUPPORT Froid VIS
Position: 888
Indicative price: 5.12 €
DISQUE BOUTON MINUTERIE
Position: 894
Indicative price: 6.35 €

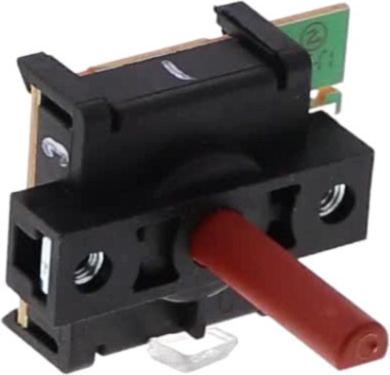

POTENTIOMETRE Four THERMOSTAT SR27AP-D1-24F-0.5
Position: 904
Indicative price: 25.7 €

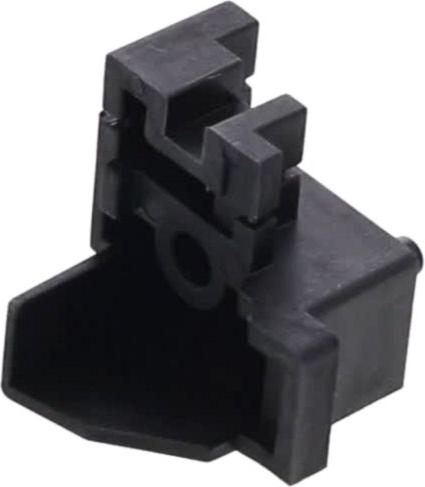

SUPPORT Four Droit POIGNEE Porte FOUR
Position: 905
Indicative price: 10 €

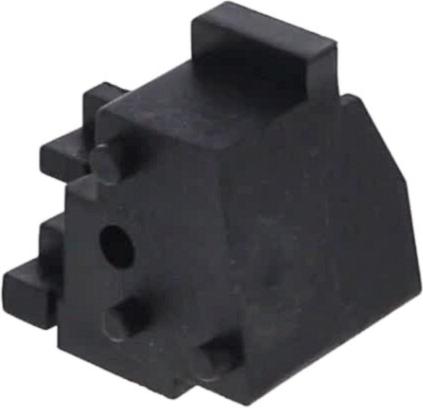

SUPPORT Four Gauche POIGNEE Porte FOUR
Position: 905
Indicative price: 10.64 €
CLIPS Four VITRE
Position: 906
Indicative price: 5.86 €
VIS Cuisinière GLISSIERE
Position: 949
Indicative price: 8.43 €

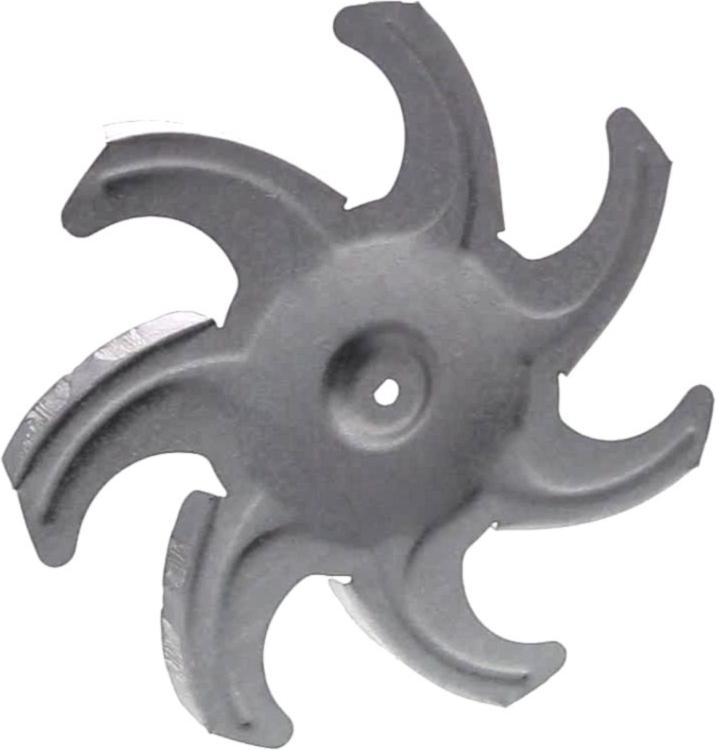

TURBINE Cuisinière
Position: 950
Indicative price: 15.91 €
TURBINE Four VENTIALTEUR C/T
Position: 950
Indicative price: 14.67 €

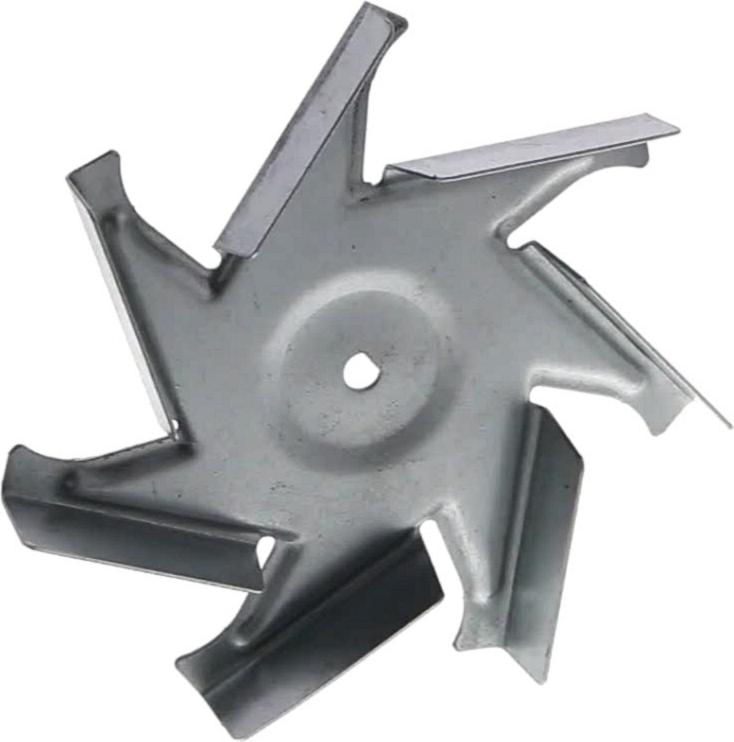

TURBINE Cuisinière Ventilation
Position: 950
Indicative price: 28.33 €
SUPPORT Cuisinière THERMOSTAT
Position: 1027
Indicative price: 9.77 €
