Exploded view four BEKO BBIMM13300XPSE 7724086729

Discover the complete exploded view four BEKO BBIMM13300XPSE 7724086729, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your four. Quickly find the parts you need to extend the life of your four BEKO BBIMM13300XPSE 7724086729 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

BORNIER Four
BORNIER Four
Position: 19
Indicative price: 20.88 €
GRILLE Four FOUR 464*360
GRILLE Four FOUR 464*360
Position: 27
Indicative price: 37.57 €
LECHE Four FRITES 462*375
LECHE Four FRITES 462*375
Position: 28
Indicative price: 35.38 €
JOINT Four PORTE
JOINT Four PORTE
Position: 29
Indicative price: 35.72 €
CHARNIERE Four PORTE Droit ou Gauche
CHARNIERE Four PORTE Droit ou Gauche
Position: 45
Indicative price: 54.77 €
COMMUTATEUR Four 8 POSITIONS
COMMUTATEUR Four 8 POSITIONS
Position: 93
Indicative price: 81.94 €

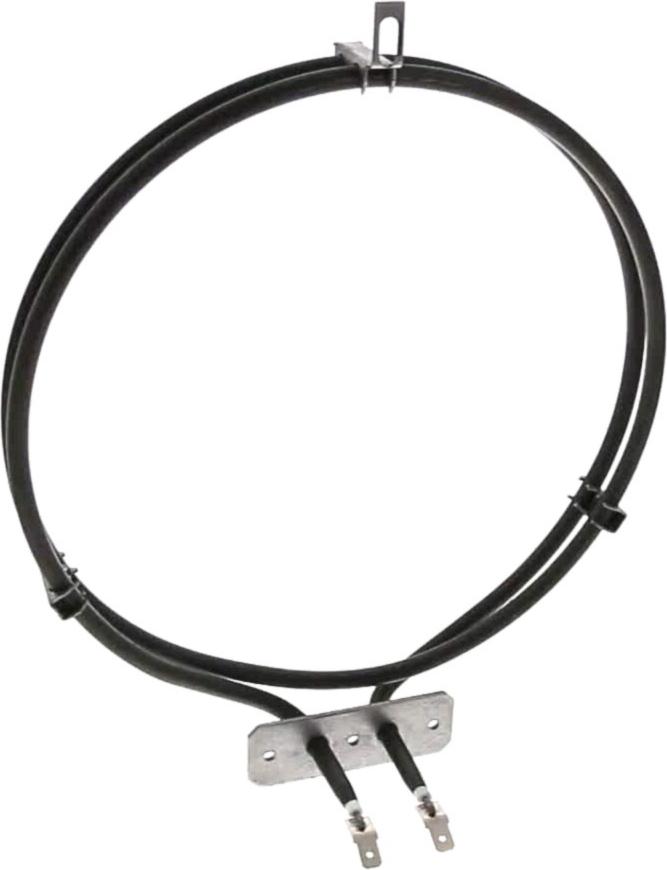

RESISTANCE Four CIRCULAIRE 2000W
RESISTANCE Four CIRCULAIRE 2000W
Position: 98
Indicative price: 35.89 €
MOTEUR Four C/T
MOTEUR Four C/T
Position: 101
Indicative price: 81.22 €
RESISTANCE Four INFERIEURE 1200W
RESISTANCE Four INFERIEURE 1200W
Position: 106
Indicative price: 56.17 €
RESISTANCE Four SUPERIEURE 1250W+1250W
RESISTANCE Four SUPERIEURE 1250W+1250W
Position: 107
Indicative price: 78.74 €
RONDELLE Cuisinière POIGNEE
RONDELLE Cuisinière POIGNEE
Position: 140
Indicative price: 9.48 €
DOUILLE Four COMPLETE
DOUILLE Four COMPLETE
Position: 375
Indicative price: 28.78 €
VITRE Four INTERMEDAIRE 475*395
VITRE Four INTERMEDAIRE 475*395
Position: 479
Indicative price: 62.9 €
SONDE Four TEMPERATURE
SONDE Four TEMPERATURE
Position: 587
Indicative price: 47.28 €
BUTEE Froid PORTE
BUTEE Froid PORTE
Position: 760
Indicative price: 5.74 €
SUPPORT Froid VIS
SUPPORT Froid VIS
Position: 888
Indicative price: 5.5 €
VERROU Four PORTE
VERROU Four PORTE
Position: 908
Indicative price: 96.43 €
ARRETOIRE Cuisinière
ARRETOIRE Cuisinière
Position: 916
Indicative price: 5.33 €
TURBINE Four MOTEUR C/T
TURBINE Four MOTEUR C/T
Position: 950
Indicative price: 12.88 €
JOINT Cuisinière PORTE
JOINT Cuisinière PORTE
Position: 1163
Indicative price: 24.44 €
COMMUTATEUR Four
COMMUTATEUR Four
Position: 1680
Indicative price: 35.06 €
THERMOSTAT Four SECURITE 175°C 161771 303 457E
THERMOSTAT Four SECURITE 175°C 161771 303 457E
Position: 3154
Indicative price: 14.32 €
COND0 Lave-Vaisselle ANTIPARASITE
COND0 Lave-Vaisselle ANTIPARASITE
Position: 4210
Indicative price: 28.64 €
