Exploded view insert DEVILLE 7869

Discover the complete exploded view insert DEVILLE 7869, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your insert. Quickly find the parts you need to extend the life of your insert DEVILLE 7869 and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

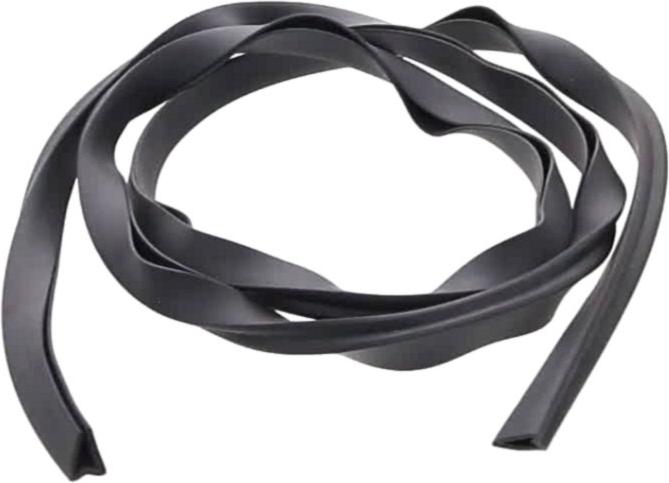

JOINT VITRE DE POELE *au metre*
JOINT VITRE DE POELE *au metre*
Position: 0
Indicative price: 43.52 €
JOINT INSERT TRESSE D=13mm L=3,5m
JOINT INSERT TRESSE D=13mm L=3,5m
Position: 7
Indicative price: 58.1 €
BAC Cuisinière CENDRIER INCERT
BAC Cuisinière CENDRIER INCERT
Position: 32
Indicative price: 87.67 €
GRILLE INSERT FOYER
GRILLE INSERT FOYER
Position: 33
Indicative price: 169.3 €
PLAQUE INSERT FOND
PLAQUE INSERT FOND
Position: 35
Indicative price: 214.12 €
DEFLECTEUR INSERT
DEFLECTEUR INSERT
Position: 36
PIECE DEFINITIVEMENT EPUISEE EN USINE
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 37
ENTRETOISE INSERT SECTEUR
ENTRETOISE INSERT SECTEUR
Position: 38
Indicative price: 16.77 €
VERROU INSERT
VERROU INSERT
Position: 39
CLAPET POELE DE BUSE
CLAPET POELE DE BUSE
Position: 54
TIGE Cuisinière COMMANDE E
TIGE Cuisinière COMMANDE E
Position: 55
TUBE Cuisinière ENTRETOISE
TUBE Cuisinière ENTRETOISE
Position: 56
Indicative price: 32.22 €

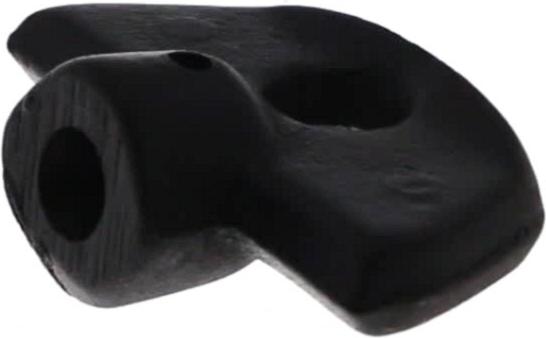

MANETTE Cuisinière + RESSORT
MANETTE Cuisinière + RESSORT
Position: 57
Indicative price: 47.24 €
