Exploded view insert DEVILLE 7868
Discover the complete exploded view insert DEVILLE 7868, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your insert. Quickly find the parts you need to extend the life of your insert DEVILLE 7868 and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
CADRE PORTE INSERT
Position: 0
VITRE POELE PORTE 377 x 622
Position: 5
Indicative price: 207.61 €

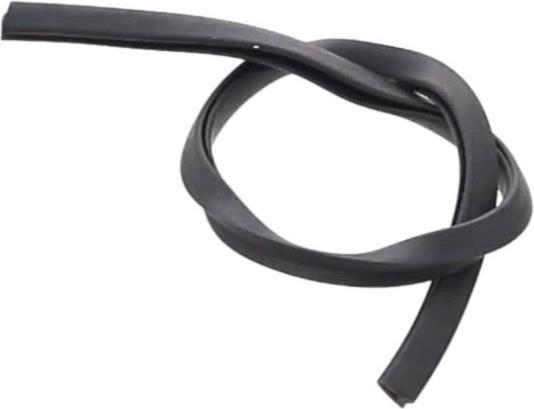

JOINT INSERT VITRE
Position: 8
Indicative price: 62.3 €

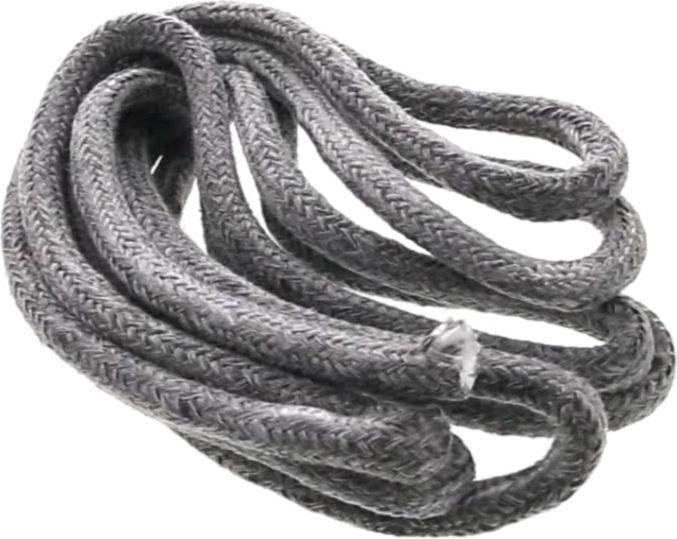

JOINT INSERT diam 15 TRESSE 5 metres
Position: 9
Indicative price: 61.62 €
MOTEUR Cuisinière VENTILATEUR 2 VIT
Position: 16
Indicative price: 137181982.22 €

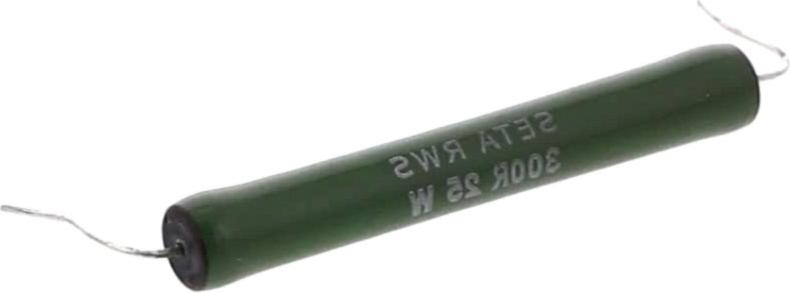

RESISTANCE 25W 300ohms
Position: 21
Indicative price: 78.32 €
MANETTE INSERT THERMOSTAT
Position: 24
Indicative price: 88.92 €

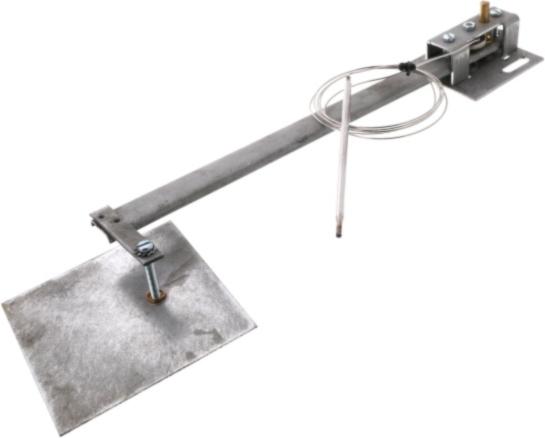

THERMOSTAT INSERT
Position: 25
Indicative price: 179.42 €
SUPPORT POELE
Position: 28
Indicative price: 62.01 €
GRILLE Cuisinière INSERT PIVOTANTE E
Position: 29
PLAQUE INSERT COTE Gauche
Position: 30
Indicative price: 138.32 €
PLAQUE INSERT ARRIERE
Position: 32
Indicative price: 131.65 €
DEFLECTEUR INSERT Supérieur 605*300 (remplace 2*1/2 fonte)
Position: 34
Indicative price: 151.49 €
SUPPORT Hotte DEFLECTEUR 606mm
Position: 35
Indicative price: 63.67 €
PLAQUE INSERT COTE Droit
Position: 36
Indicative price: 116.01 €
BOUTON INSERT COMMANDE VOLET
Position: 45
RESSORT INSERT FREIN
Position: 46
Indicative price: 23.26 €
PIECE DEFINITIVEMENT EPUISEE EN USINE
Position: 47
TIGE Petit electro ménager COMMANDE VOLET E
Position: 48
CLAPET POELE DE BUSE
Position: 49
