Exploded view poêle DEVILLE C07787.02 ARCHE

Discover the complete exploded view poêle DEVILLE C07787.02 ARCHE, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your poêle. Quickly find the parts you need to extend the life of your poêle DEVILLE C07787.02 ARCHE and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

ETRIER Cuisinière TAMPON BUSE
ETRIER Cuisinière TAMPON BUSE
Position: 3
Indicative price: 32.82 €

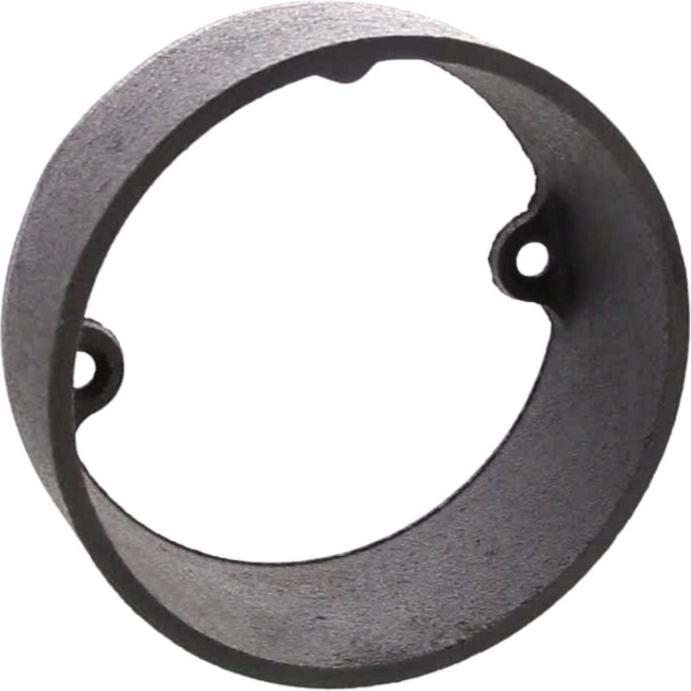

BUSE Cuisinière Diamètre 139
BUSE Cuisinière Diamètre 139
Position: 5
Indicative price: 77.39 €
DEFLECTEUR POELE
DEFLECTEUR POELE
Position: 13
Indicative price: 98.18 €
PLAQUE Cuisinière ARRIERE INSERT
PLAQUE Cuisinière ARRIERE INSERT
Position: 14
Indicative price: 130.83 €
GRILLE POELE FOYER
GRILLE POELE FOYER
Position: 20
Indicative price: 150.31 €
AXE POELE COUVERCLE
AXE POELE COUVERCLE
Position: 23
Indicative price: 22.74 €
JOINT INSERT diam 15 TRESSE 5 metres
JOINT INSERT diam 15 TRESSE 5 metres
Position: 24
Indicative price: 55.46 €
GOUPILLE POELE CANNELEE
GOUPILLE POELE CANNELEE
Position: 27
Indicative price: 22.86 €
JOINT Cuisinière TRESSE diam 6mm 3.2 metres
JOINT Cuisinière TRESSE diam 6mm 3.2 metres
Position: 31
Indicative price: 18.23 €
VERRE INSERT PORTE 546*316
VERRE INSERT PORTE 546*316
Position: 32
Indicative price: 232.84 €
RACLETTE Cuisinière CENDRES INSERT
RACLETTE Cuisinière CENDRES INSERT
Position: 35
Indicative price: 22.79 €

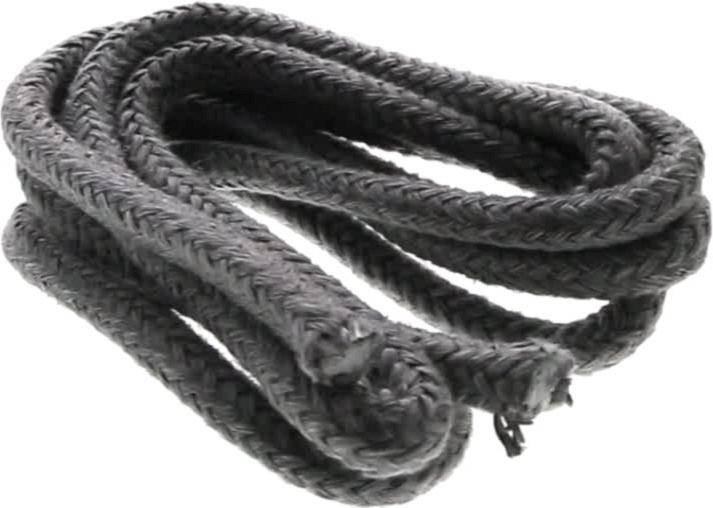

JOINT POELE 2795MM D10
JOINT POELE 2795MM D10
Position: 36
Indicative price: 37.4 €
