Exploded view poêle DEVILLE 9444F

Discover the complete exploded view poêle DEVILLE 9444F, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your poêle. Quickly find the parts you need to extend the life of your poêle DEVILLE 9444F and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

BRULEUR Cuisinière DIAMETRE 280
BRULEUR Cuisinière DIAMETRE 280
Indicative price: 317.86 €
HUBLOT POELE COMPLET
HUBLOT POELE COMPLET
FILTRE POELE RESERVOIR
FILTRE POELE RESERVOIR
Indicative price: 140.21 €
GOND POELE COUVERCLE
GOND POELE COUVERCLE
Indicative price: 22.88 €
ECROU POELE M5
ECROU POELE M5
Indicative price: 23.24 €
BUTEE Cuisinière AXE
BUTEE Cuisinière AXE
Indicative price: 29.12 €

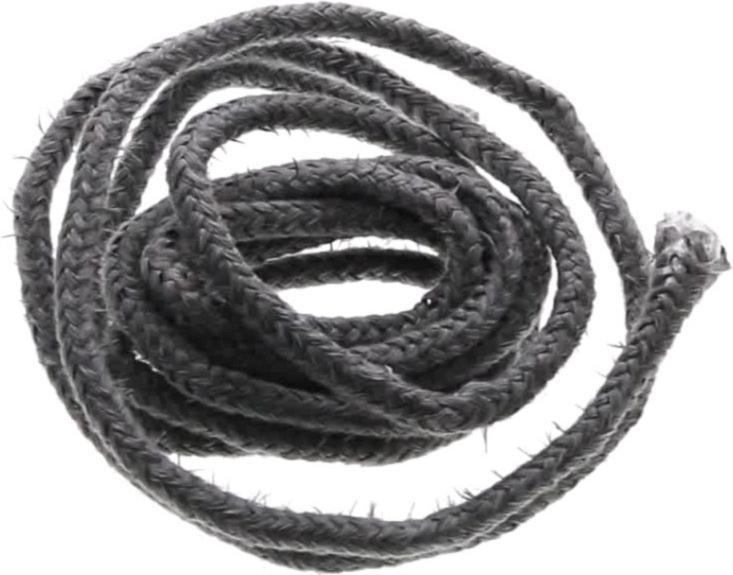

JOINT POELE diam 8 TRESSE 280cm
JOINT POELE diam 8 TRESSE 280cm
Position: 1
Indicative price: 41.13 €
JOINT POELE VITRE au metres
JOINT POELE VITRE au metres
Position: 3
Indicative price: 26.9 €
JOINT Cuisinière 3m 6,5mm TRESSE
JOINT Cuisinière 3m 6,5mm TRESSE
Position: 14
Indicative price: 53.63 €
RACCORD Cuisinière ALIMENTATION
RACCORD Cuisinière ALIMENTATION
Position: 15
Indicative price: 27.75 €

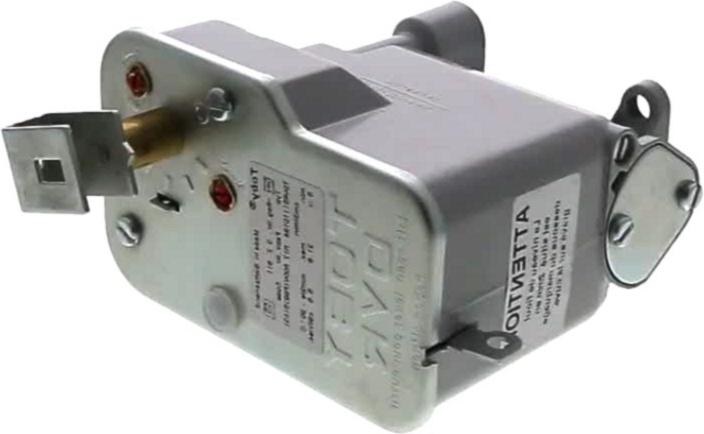

CARBURATEUR POELE TOBY3Z011 TDVR5111D104 M17 5*21
CARBURATEUR POELE TOBY3Z011 TDVR5111D104 M17 5*21
Position: 16
Indicative price: 260.99 €

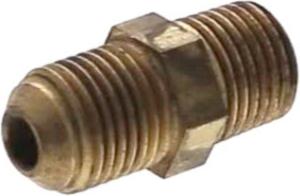

RACCORD POELE DROIT
RACCORD POELE DROIT
Position: 17
Indicative price: 29.94 €

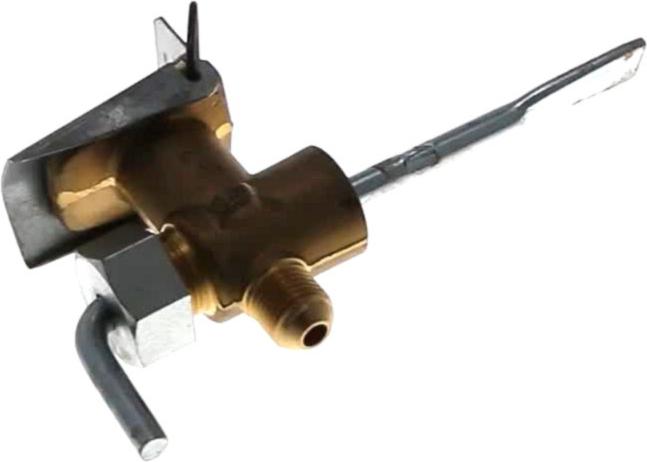

TE POELE DE DECRASSAGE
TE POELE DE DECRASSAGE
Position: 24
Indicative price: 156.08 €
TUBE POELE DE DECRASSAGE
TUBE POELE DE DECRASSAGE
Position: 25
Indicative price: 111.27 €
BRULEUR POELE D=280mm
BRULEUR POELE D=280mm
Position: 26
Indicative price: 372.17 €

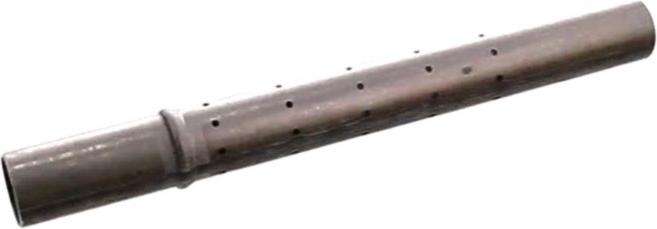

TUBE Cuisinière FUEL INDUCTEUR
TUBE Cuisinière FUEL INDUCTEUR
Position: 27
Indicative price: 132.99 €

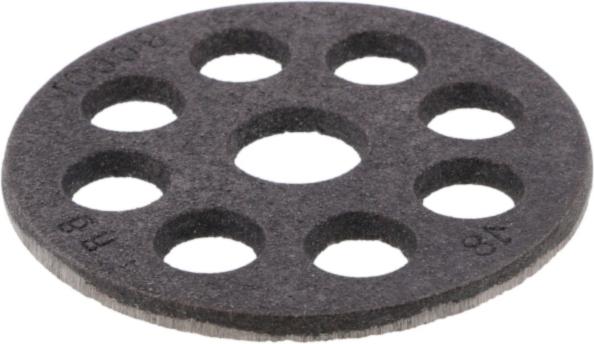

ANNEAU Cuisinière FUEL DIFFUSEUR
ANNEAU Cuisinière FUEL DIFFUSEUR
Position: 28
Indicative price: 34.82 €

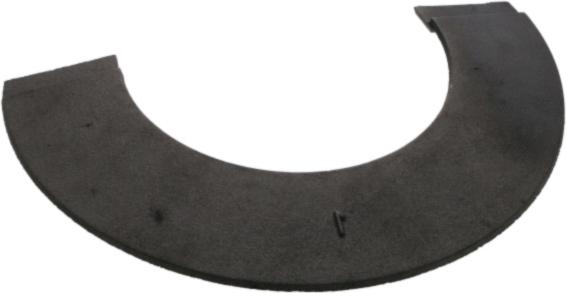

ANNEAU POELE 1/2 SUPPORT
ANNEAU POELE 1/2 SUPPORT
Position: 29
Indicative price: 88.32 €

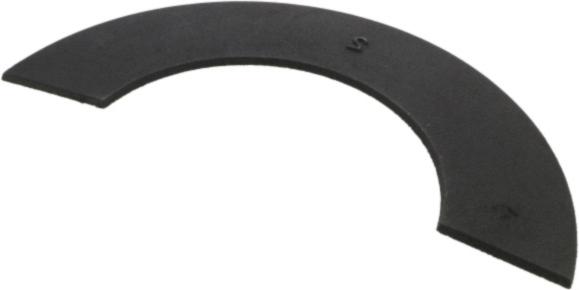

ANNEAU POELE 1/2
ANNEAU POELE 1/2
Position: 30
Indicative price: 78.54 €

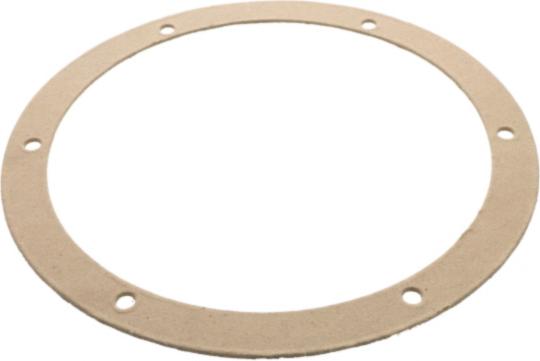

JOINT POELE
JOINT POELE
Position: 32
Indicative price: 33.31 €
BUSE POELE DIM=125
BUSE POELE DIM=125
Position: 37
Indicative price: 75.07 €
JOINT POELE TAMPON
JOINT POELE TAMPON
Position: 42
Indicative price: 52.79 €
TUYAU POELE Alimentation RESERVOIR/CARBURANT
TUYAU POELE Alimentation RESERVOIR/CARBURANT
Position: 47
Indicative price: 85.1 €
RESERVOIR POELE 16L
RESERVOIR POELE 16L
Position: 47
Indicative price: 792.01 €

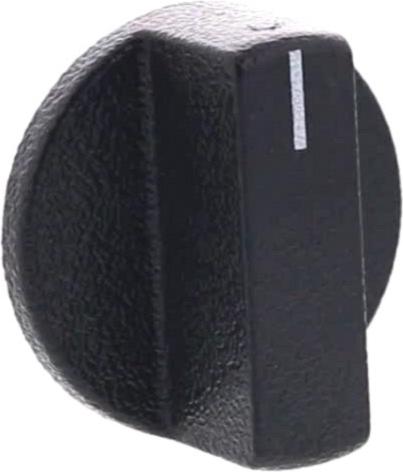

MANETTE POELE COMMANDE
MANETTE POELE COMMANDE
Position: 49
Indicative price: 26.07 €

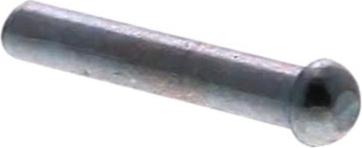

AXE POELE COUVERCLE
AXE POELE COUVERCLE
Position: 54
Indicative price: 27.35 €
VITRE POELE PORTE Extérieure 410*258
VITRE POELE PORTE Extérieure 410*258
Position: 66
Indicative price: 134.22 €
