Exploded view réfrigérateur SCHNEIDER SL331IX
Discover the complete exploded view réfrigérateur SCHNEIDER SL331IX, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SCHNEIDER SL331IX and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List

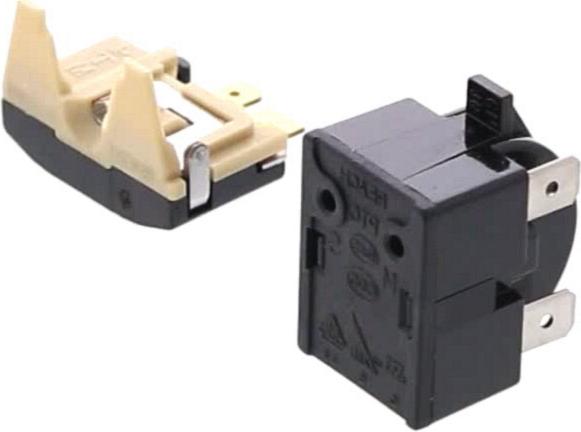

RELAIS Froid + KLIXON
Indicative price: 35.75 €
BALCONNET Froid SUP/CENT
Position: 6
Indicative price: 35.38 €
RESERVOIR Froid EAU SEUL
Position: 8
Indicative price: 72.3 €
VALVE Froid RESERVOIR
Position: 8
Indicative price: 20.99 €
BARRE Froid BALCONNET BOUTEILLES 446MM
Position: 9
Indicative price: 11.7 €
BALCONNET Froid 1/2 TRANSPARENT CLAIR BCD300Y.2-1 156*85*50
Position: 10
Indicative price: 32.54 €

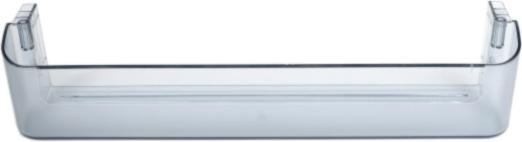

BALCONNET Froid BOUTEILLES TRANSPARENT CLAIR 468*98*88 BCD300.2-2
Position: 12
Indicative price: 26.82 €
JOINT Froid PORTE BLANC 1610*565
Position: 13
Indicative price: 58.5 €

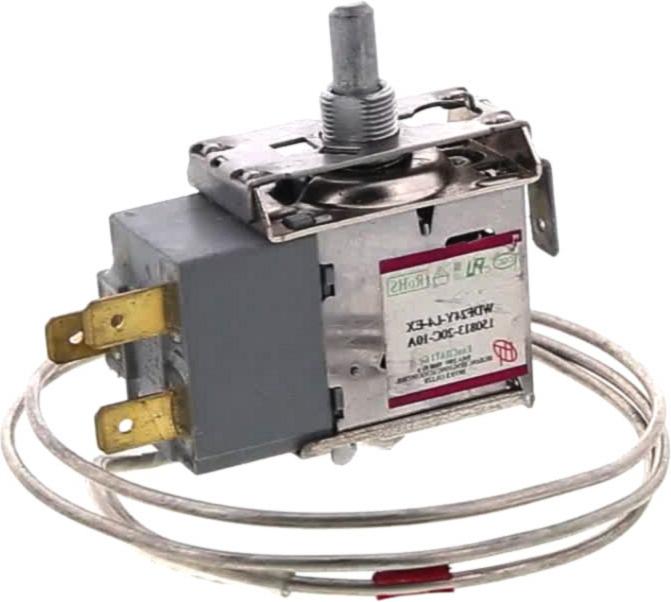

THERMOSTAT Froid WDF24Y-L4-EX BULBE 755MM
Position: 16
Indicative price: 35.93 €

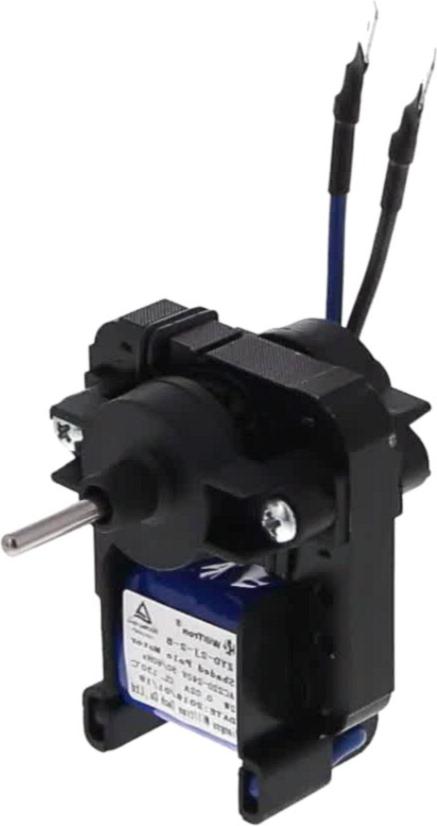

MOTEUR Froid VENTILATEUR
Position: 18
Indicative price: 80.41 €
CLAYETTE Froid
Position: 19
Indicative price: 42.78 €
CLAYETTE Froid BOUTEILLES
Position: 20
Indicative price: 33 €
DESSUS Froid BAC LEGUMES
Position: 21
Indicative price: 42.32 €
BAC Froid LEGUMES TRANSPARENT GRIS 483*240*166 BCD308-1
Position: 22
Indicative price: 50.24 €

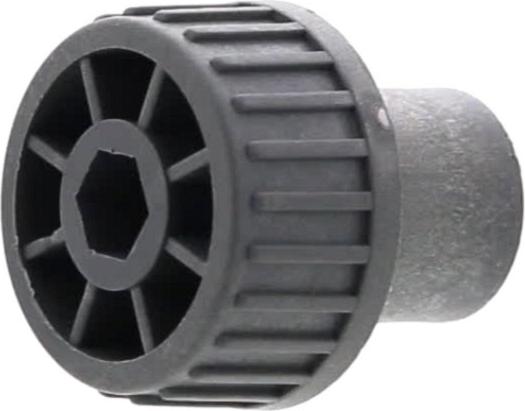

PIED Froid AVANT DROIT
Position: 27
Indicative price: 13.82 €
PIED Froid FIXE
Position: 34
Indicative price: 13.81 €
BAC Froid COMPRESSEUR 288*128
Position: 46
Indicative price: 22.44 €
COMPRESSEUR Froid QD52YV
Position: 47
Indicative price: 205.02 €
TUYAU Froid
Position: 48
Indicative price: 8.02 €
