Exploded view réfrigérateur SCHNEIDER SCRC771ABS

Discover the complete exploded view réfrigérateur SCHNEIDER SCRC771ABS, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SCHNEIDER SCRC771ABS and avoid unexpected breakdowns.

Repair Assistant Powered by ChatGPT

Spare Parts List

TIROIR Froid Congélateur Inférieur SANS FACADE
TIROIR Froid Congélateur Inférieur SANS FACADE
Position: 6
Indicative price: 52.56 €
BAC Froid COMPRESSEUR
BAC Froid COMPRESSEUR
Position: 32
Indicative price: 21.08 €

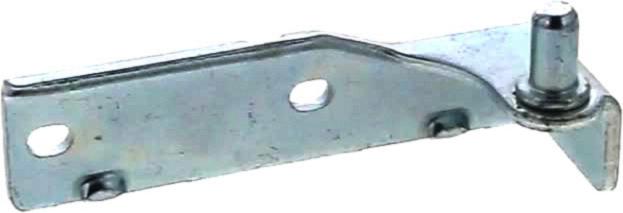

CHARNIERE Froid Supérieur DTE
CHARNIERE Froid Supérieur DTE
Position: 36
Indicative price: 32.81 €
CLAYETTE Froid 460*285
CLAYETTE Froid 460*285
Position: 57
Indicative price: 34.83 €
DESSUS Froid BAC LEGUMES
DESSUS Froid BAC LEGUMES
Position: 59
Indicative price: 29.9 €

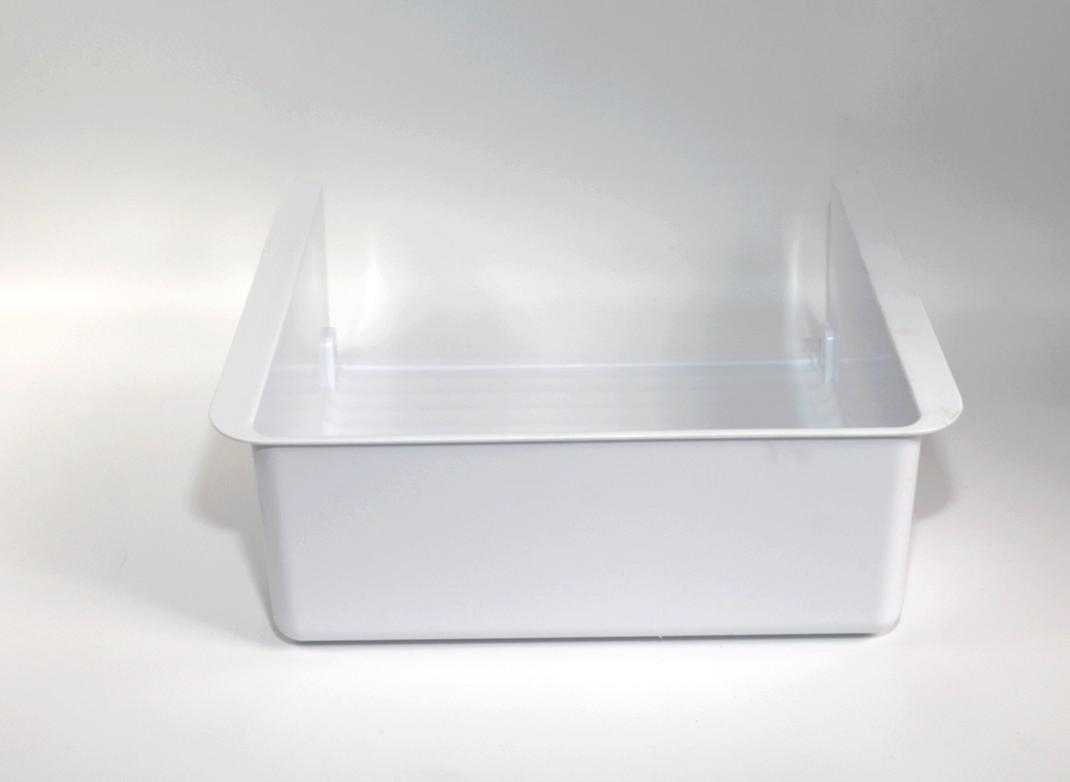

BAC Froid LEGUMES Inférieur NU Blanc 444*166*384
BAC Froid LEGUMES Inférieur NU Blanc 444*166*384
Position: 64
Indicative price: 79.3 €
FACADE Froid TIROIR BAC LEGUMES TRANSPARENT CLAIR 453*119*36
FACADE Froid TIROIR BAC LEGUMES TRANSPARENT CLAIR 453*119*36
Position: 66
Indicative price: 36.29 €

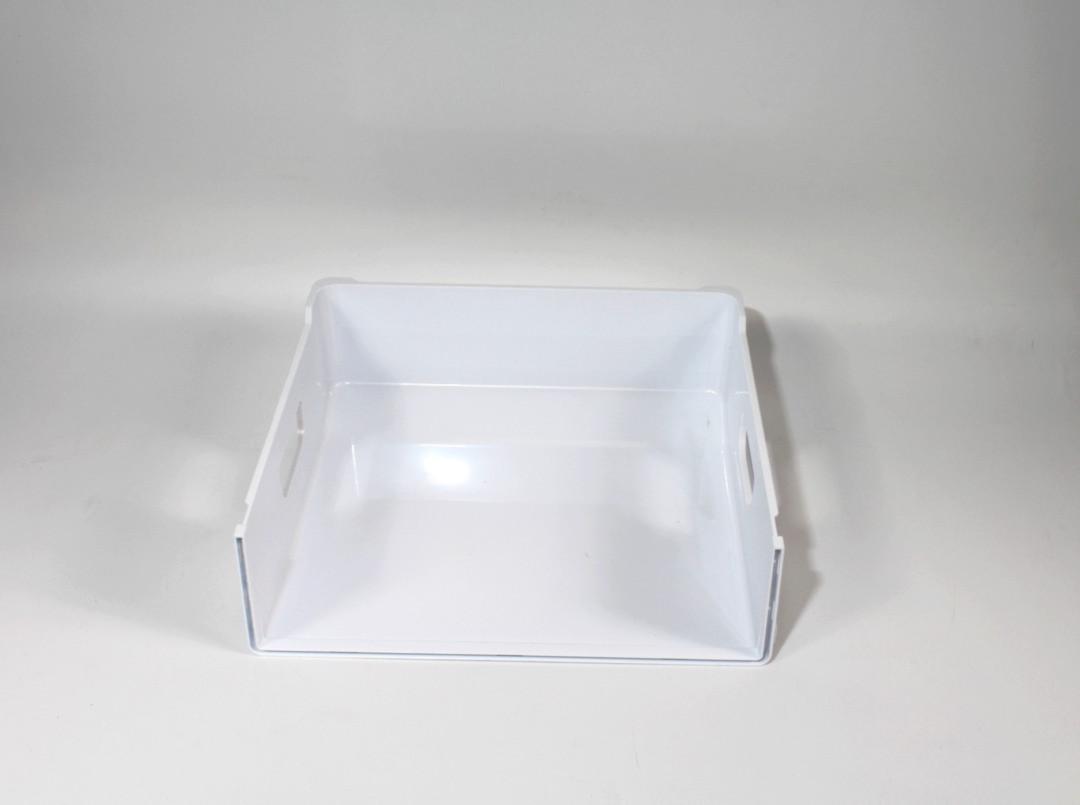

TIROIR Froid CENTRAL CONGELATEUR
TIROIR Froid CENTRAL CONGELATEUR
Position: 67
Indicative price: 58.99 €
JOINT Froid ENCASTREMENT
JOINT Froid ENCASTREMENT
Position: 74
Indicative price: 5.88 €
KIT Froid ENCASTREMENT
KIT Froid ENCASTREMENT
Position: 77
Indicative price: 34.89 €

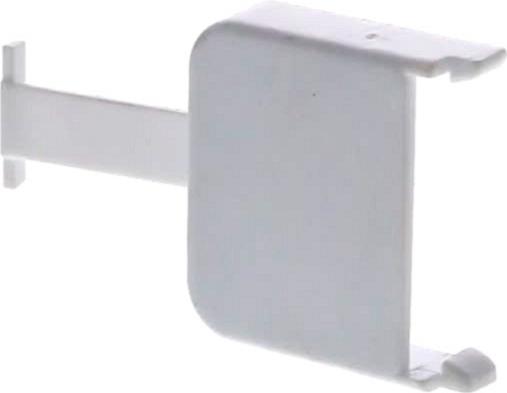

FIXATION Froid GLISSIERE
FIXATION Froid GLISSIERE
Position: 78
Indicative price: 4.92 €
BALCONNET Froid Supérieur TRANSPARENT CLAIR 429*55*100
BALCONNET Froid Supérieur TRANSPARENT CLAIR 429*55*100
Position: 89
Indicative price: 41.24 €
