Exploded view réfrigérateur SCHNEIDER STT112B
Discover the complete exploded view réfrigérateur SCHNEIDER STT112B, an essential guide to easily identify all spare parts of your appliance. Whether you are looking for a specific part or need help with the repair, our detailed presentation helps you understand each component of your réfrigérateur. Quickly find the parts you need to extend the life of your réfrigérateur SCHNEIDER STT112B and avoid unexpected breakdowns.
Repair Assistant
Powered by ChatGPT
Spare Parts List
JOINT Froid PORTE REFRIGERATEUR
Position: 2
Indicative price: 36.94 €
BALCONNET Froid SUPERIEUR TRANSPARENT CLAIR 427*39*81 KS115R:2-1
Position: 3
Indicative price: 23.75 €

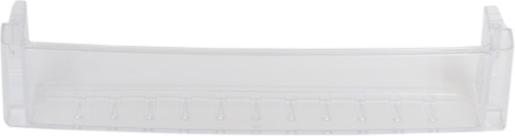

BALCONNET Froid BOUTEILLES
Position: 4
Indicative price: 28.65 €
JOINT Froid PORTE FREEZER 435*180
Position: 6
Indicative price: 17.67 €

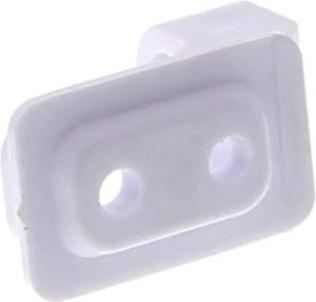

CHARNIERE Froid PORTE FREEZER
Position: 7
Indicative price: 12.47 €

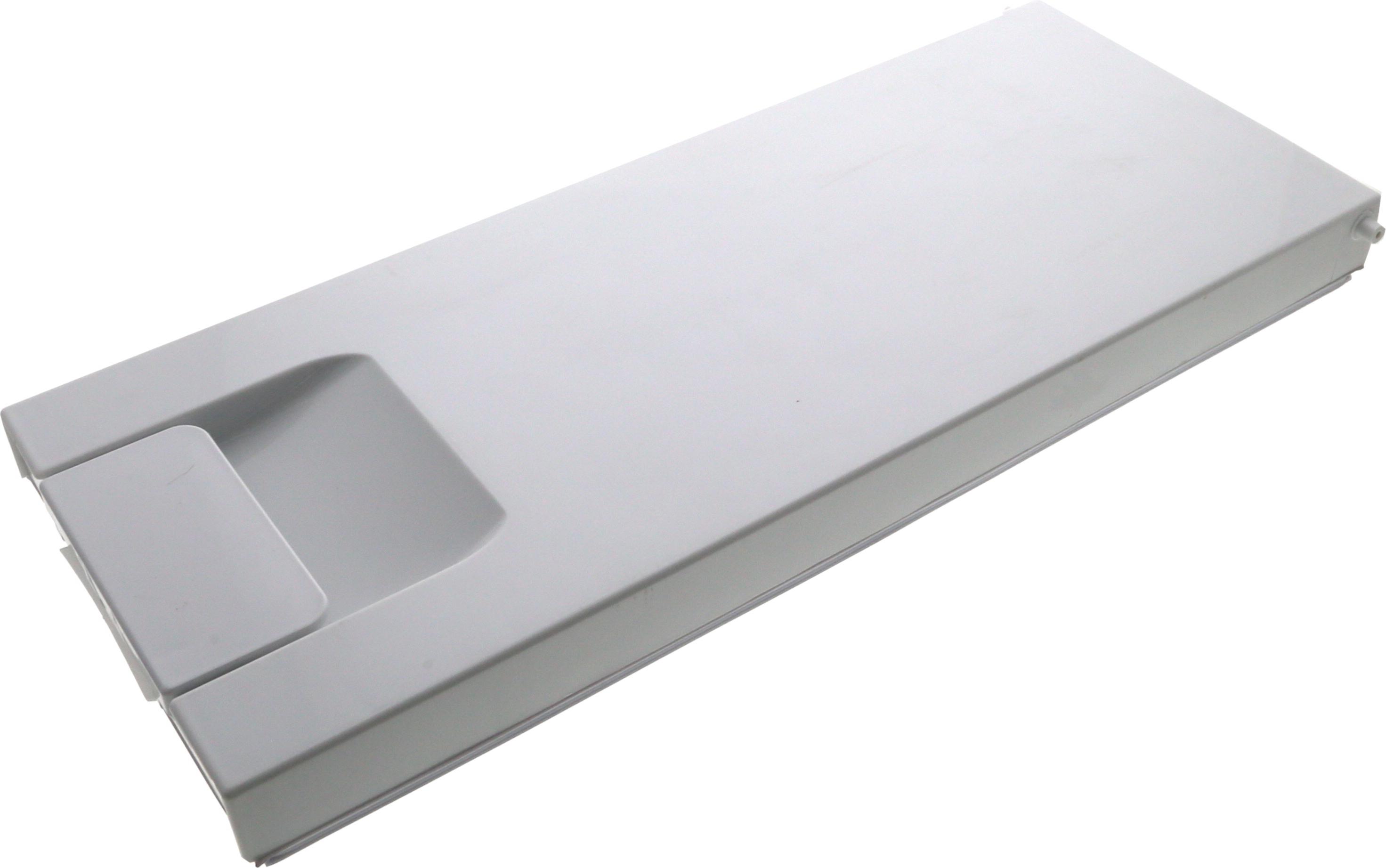

PORTE Froid FREEZER 447*182 (avec axes 196mm)
Position: 8
Indicative price: 79.73 €
CHARNIERE Froid PORTE FREEZER SUPERIEUR
Position: 9
Indicative price: 24.77 €
BOITE Froid THERMOSTAT
Position: 11
Indicative price: 19.35 €

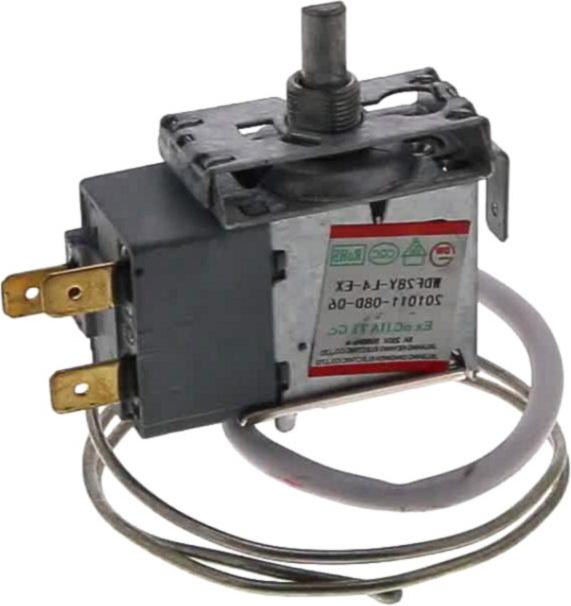

THERMOSTAT Froid
Position: 13
Indicative price: 38.82 €

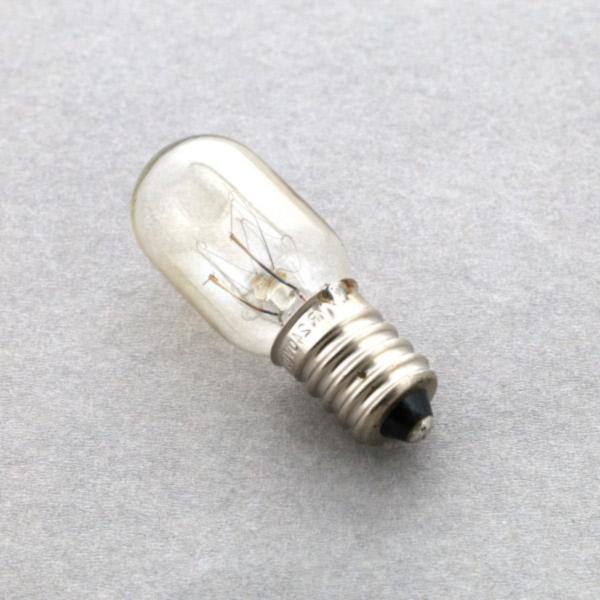

AMPOULE Froid 10W E14
Position: 14
Indicative price: 8.3 €

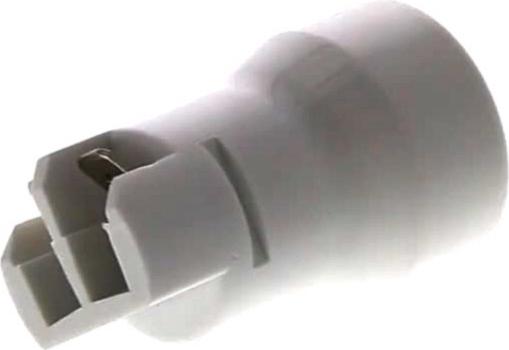

DOUILLE Froid AMPOULE
Position: 15
Indicative price: 15.6 €
Interrupteur Froid AMPOULE
Position: 16
Indicative price: 12.1 €
DESSUS Froid TOP
Position: 17
Indicative price: 87.77 €
CHARNIERE Froid INFERIEURE
Position: 21
Indicative price: 26.82 €
PIED Froid FIXE
Position: 22
Indicative price: 4.97 €
PIED Froid REGLABLE
Position: 23
Indicative price: 10.93 €
BAC Froid LEGUMES TRANSPARENT CLAIR 434*234*165
Position: 24
Indicative price: 46.72 €
CLAYETTE Froid 450*287
Position: 26
Indicative price: 30.92 €
DESSUS Froid BAC LEGUMES
Position: 26
Indicative price: 33.86 €
TUYAU Froid
Position: 30
Indicative price: 8.89 €
COMPRESSEUR Froid QD43Y R600A
Position: 31
Indicative price: 108.82 €
BAC Froid EAU DEGIVRAGE COMPRESSEUR
Position: 33
Indicative price: 13.2 €
CABLE Froid ALIMENTATION
Position: 38
Indicative price: 30.56 €
SUPPORT Froid CABLE Alimentation
Position: 40
Indicative price: 3.85 €

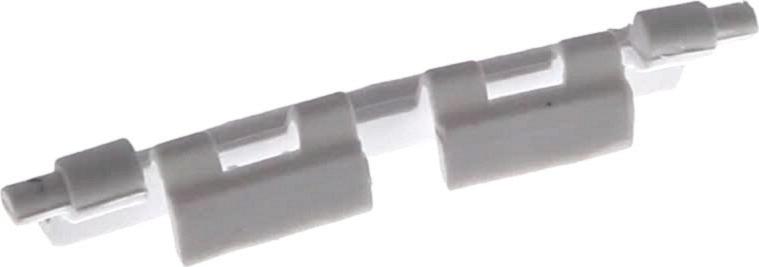

CROCHET Froid PORTE FREEZER
Position: 46
Indicative price: 10.72 €
